Sony DSR-2000 - COMPOSITE 4 Fsc PLL DC Check;Adjustment

10-22
DSR-2000/2000P
Specification

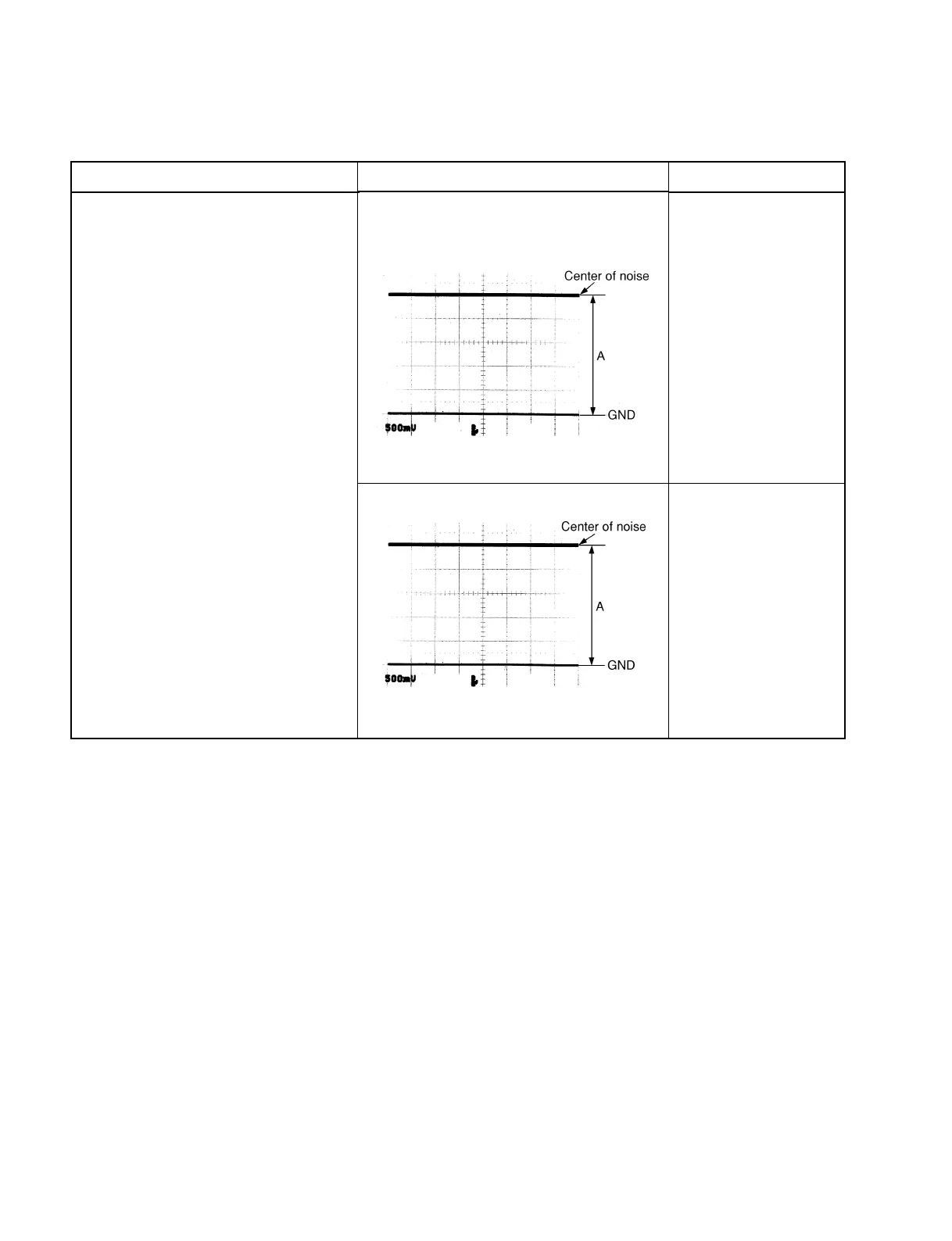

TP301/VPR-62 (P-2)
[Check]
Spec. A = 2.5 ±0.5 V dc
TP300/VPR-62 (P-2)
Spec. A = 2.5 ±0.5 V dc
Conditions for adjustment
Oscilloscope
. EE mode
. VIDEO IN ; 75 % Color bars (for NTSC)
100 % Color bars (for PAL)
. VIDEO IN select/MENU ; COMPOSITE
Connection 1
10-3-22. COMPOSITE 4Fsc PLL DC Check/Adjustment
Adjustment
1RV300/VPR-62 (P-2)
10-3. Video Adjustment
10-3-22. COMPOSITE 4Fsc PLL DC Check/Adjustment
