Sony DSR-2000 - REC COMPOSITE y Level Adjustment

10-27
DSR-2000/2000P

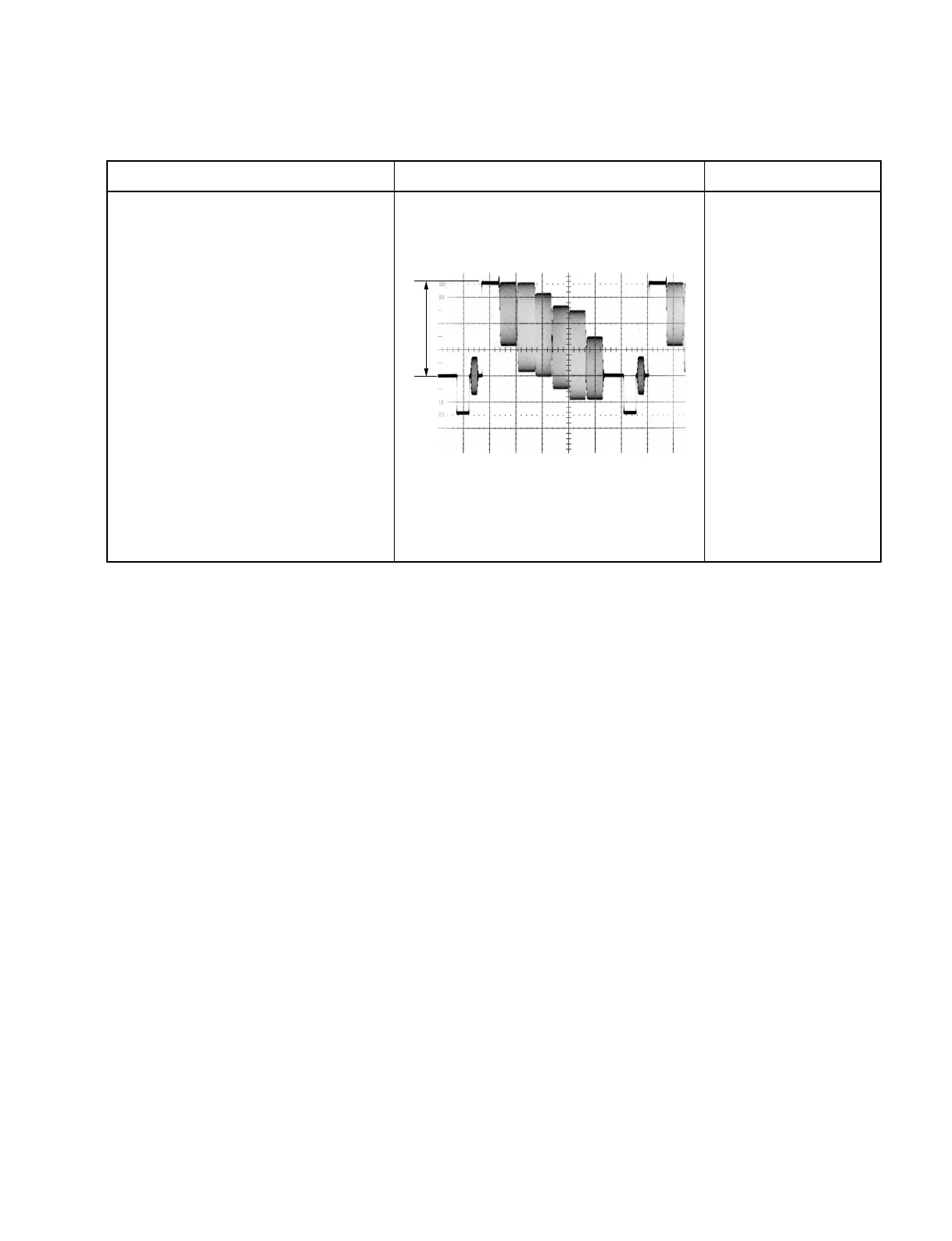

Specification
VIDEO OUT 1 (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.714 ±0.007 V (100 ±1 IRE)
[For PAL]
A = 0.700 ±0.007 V
Conditions for adjustment
WFM or Oscilloscope
. EE mode
. VIDEO IN ; 75 % Color bars (for NTSC)
100 % Color bars (for PAL)
. VIDEO IN select/MENU ; COMPOSITE
Connection 2
10-3-28. REC COMPOSITE Y Level Adjustment
Adjustment
1RV200/VPR-62 (L-1)
10-3. Video Adjustment
10-3-28. REC COMPOSITE Y Level Adjustment
A
