Sony DSR-2000 - Maintenance Upon Completion of Repair

6-4
DSR-2000/2000P

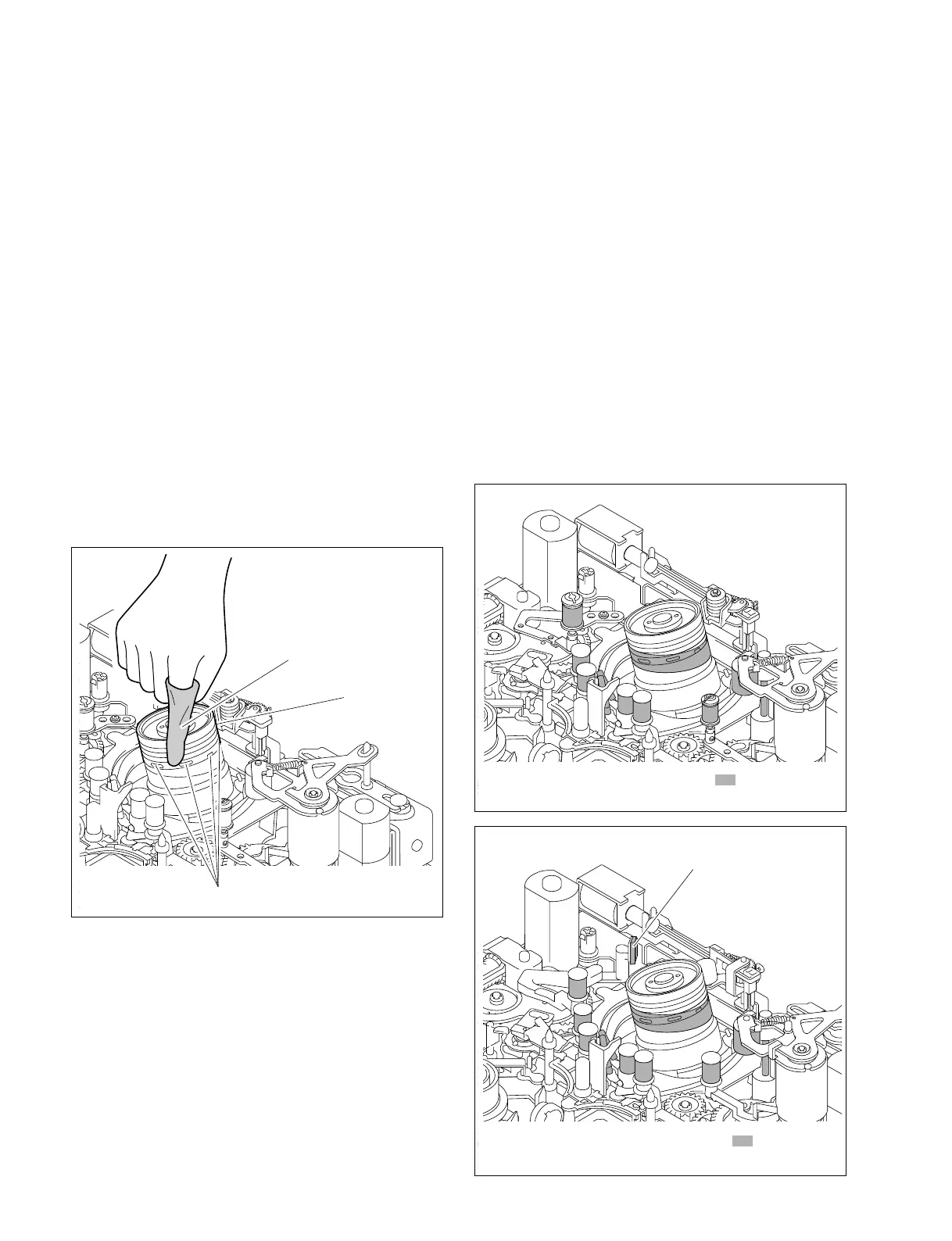

Tape cleaner
(Sharp edge)
: Cleaning area
Serial No. 100001 - 100910, 101391 - : UC
400001 - 401550, 401851 - : CE
: Cleaning area
Serial No. 100911 - 101390: UC
401551 - 401850: CE
Cleaning cloth
Drum
Video head
6-3. Maintenance upon Completion of
Repair
Perform the following maintenance work regardless of the
operating hours of the unit, after repairing it.
1. Video head cleaning
(Refer to section 6-3-1 for cleaning procedure.)
2. Tape running path cleaning
(Refer to section 6-3-2 for cleaning procedure.)
n
After a unit is cleaned, insert a cassette after cleaning fluid
is dried completely.
6-3-1. Video Head Cleaning Procedure
Bring a cleaning cloth moistened with cleaning fluid in
contact with the head tip gently, and rotate the drum slowly
with hand for cleaning.
m
. Never move the cleaning cloth in vertical direction with
respect to the drum rotation (up and down with respect to
the drum) during cleaning.
. After cleaning, wipe off moisture using a dry cleaning
cloth.
. Turn off the main power before cleaning a unit.
6-3. Maintenance upon Completion of Repair
6-3-2. Tape Running Path Cleaning
Clean the tape guide, drum, capstan, pinch roller, tape
cleaner and other parts which contact with video tape, with
cleaning cloth moistened with cleaning fluid.
m
. Be careful of the tape cleaner during cleaning because it
has sharp edge.
. After cleaning, wipe off moisture using a dry cleaning
cloth.
. The tape cleaner is not used for Serial No.
100911 - 101390 : UC
401551 - 401850 : CE
The set of above serial number, provided ARM
ASSY, TG1 (A-8279-399-C) for repair parts to
stabilize the tape path.
