10-14
DSR-2000/2000P
Conditions for adjustment
WFM or Oscilloscope
. PB mode
75 % Color bars/XH5-1A2 (for NTSC)
100 % Color bars/XH5-1AP2 (for PAL)
Connection 2
Specification

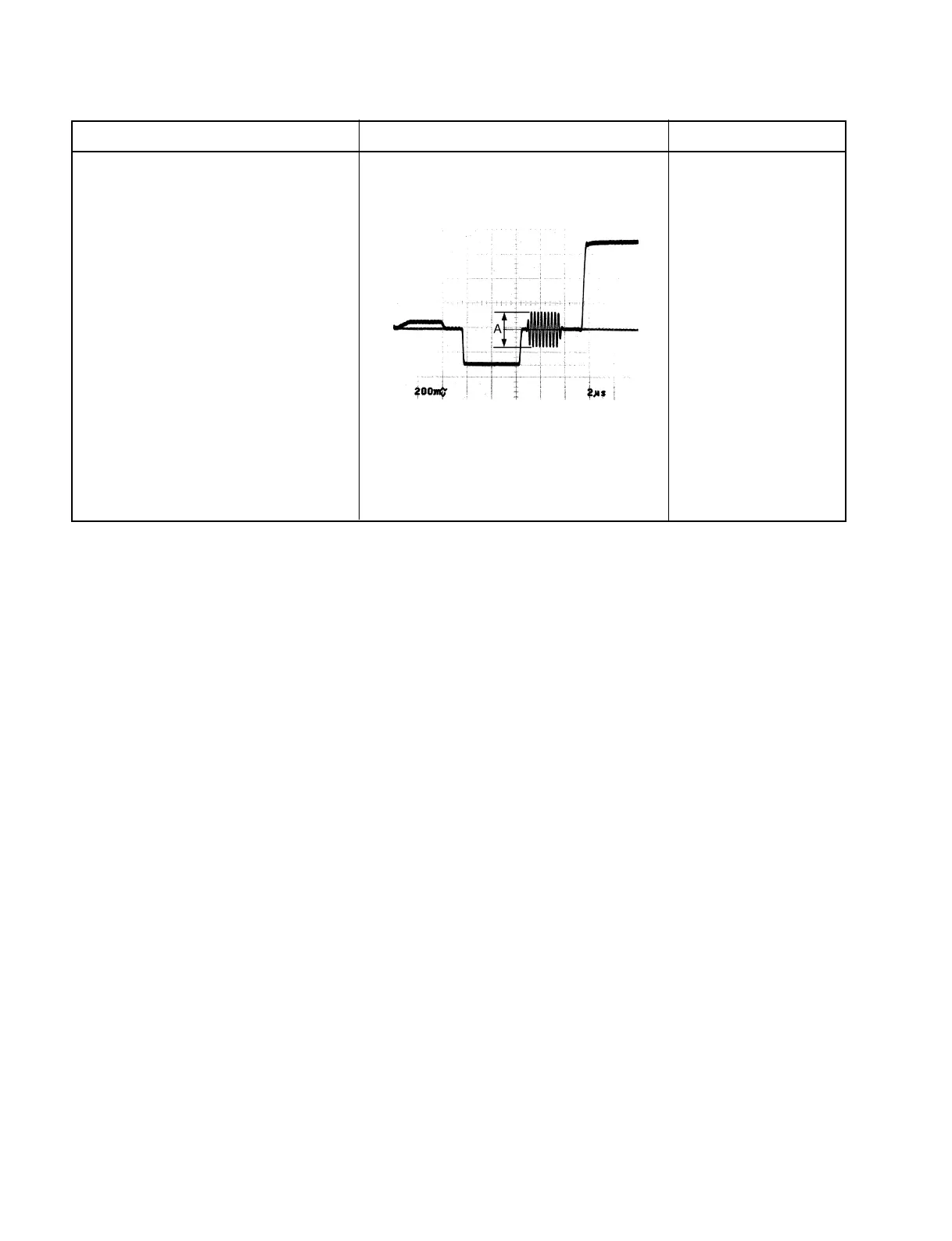

Step 2 Burst Level
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.286 ±0.003 V (40 ±0.5 IRE)
[For PAL]
A = 0.300 ±0.003 V
Adjustment
1RV705/VPR-62 (D-2)
10-3. Video Adjustment
10-3-13. PB VIDEO OUT 1 Chroma/Burst Level Adjustment
