3-24
DSR-2000/2000P

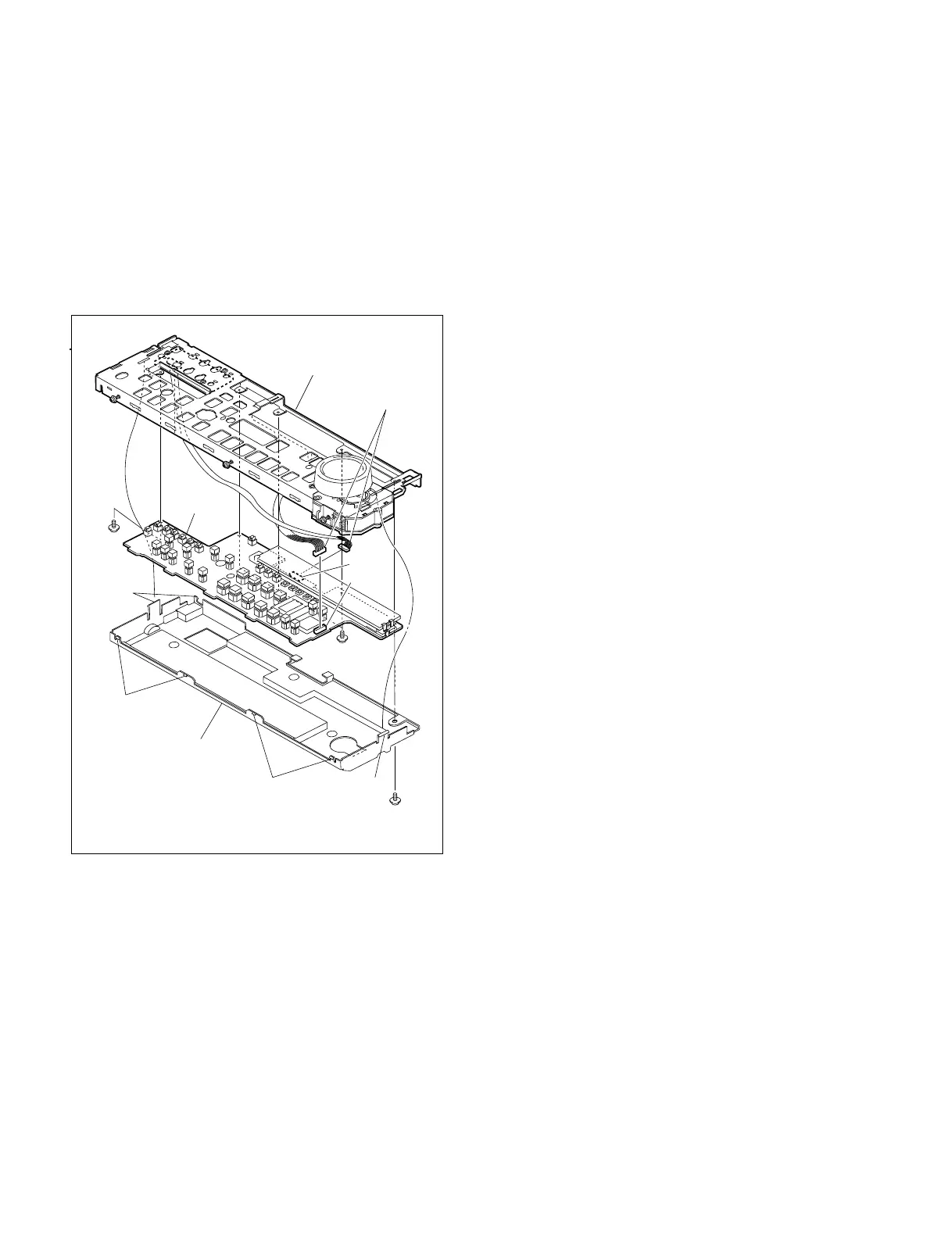

CN710
CN711
Screw
PWH3 x 6
Screws
PWH3 x 6
Screw
PWH
3 x 6
ClawClaws
KY cover
KY-452A
board
Harnesses
Claws
Claws
Control frame
(2) Remove the screw (PWH3 x 6) and release the seven
claws from the rear side and remove the KY cover.
(3) Disconnect the harnesses from the connectors (CN710
and CN711) of the KY-452A board with tweezers.
(4) Remove the four screws (PWH3 x 6) securing the
KY-452A board.
(5) Remove the KY-452A board in the arrow direction.
(6) Reattach the KY-452A board in the reverse order of
the removing steps (1) to (5).
3-5. Removal/Reattachment of the Boards
