7-46
DSR-2000/2000P
Claw
Claw
LED holder assembly
Shuttle (L) assembly
Gear
Rail assembly
Shuttle (R) assembly

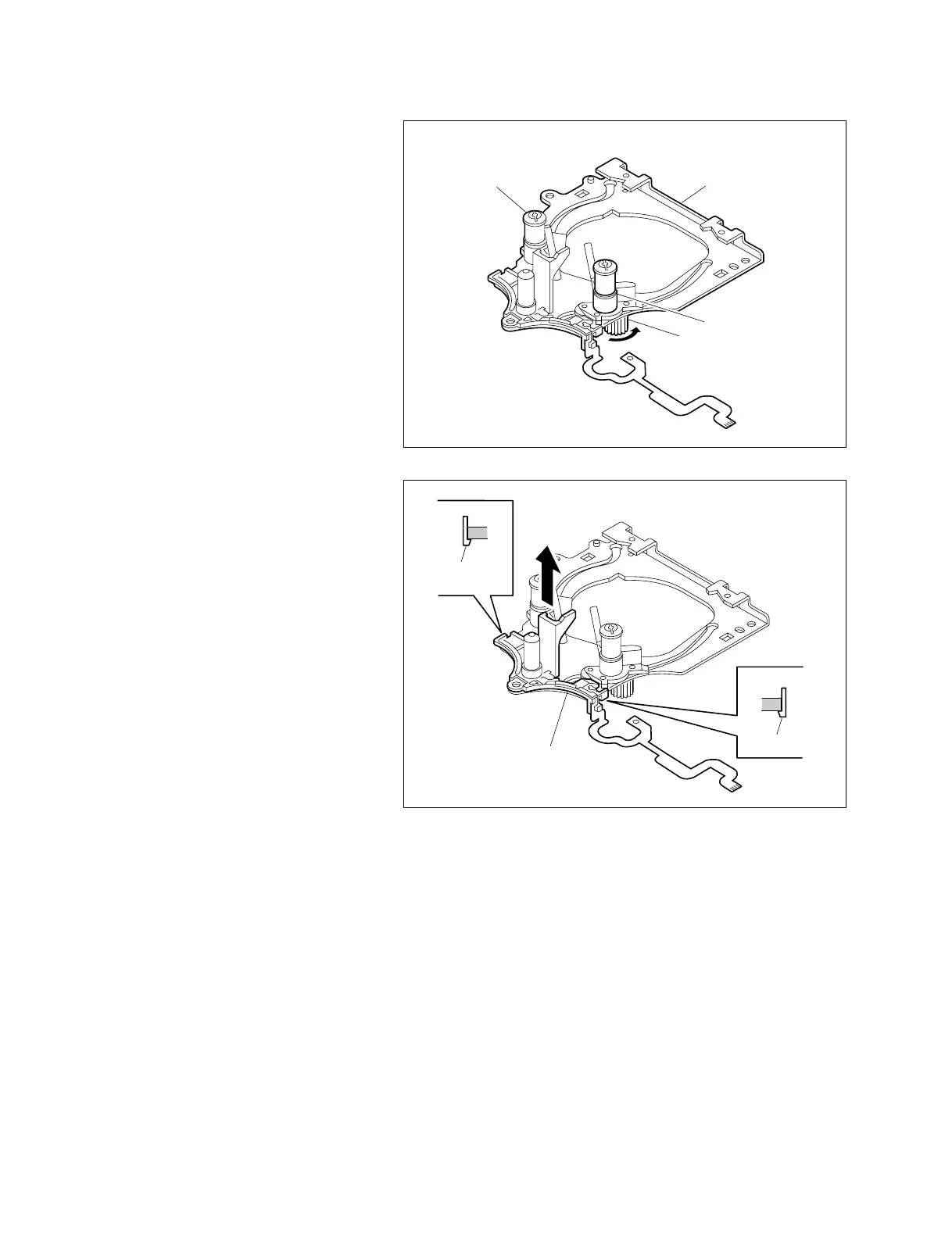

7-15. Rail Assembly Replacement
(4) Bring both shuttle (R) and shuttle (L) assem-
blies to the threading position shown in the
figure, by turning the gear on the back side of
the rail assembly by a finger
(5) Unlock each two claws located on the left,
right and middle side of the LED holder
assembly with tweezers, and remove the LED
holder assembly from the rail assembly.
To Next Page
