8-4
DSR-2000/2000P
S1
S2
S3 (Tension regulator)
T1
T2
T4
Head drum
S4
Capstan
Pinch roller
T reelMini cassetteM cassette
Standard cassetteS reel
T3
The hatched areas (marked by /////) are contacting with tape or pressing tape.

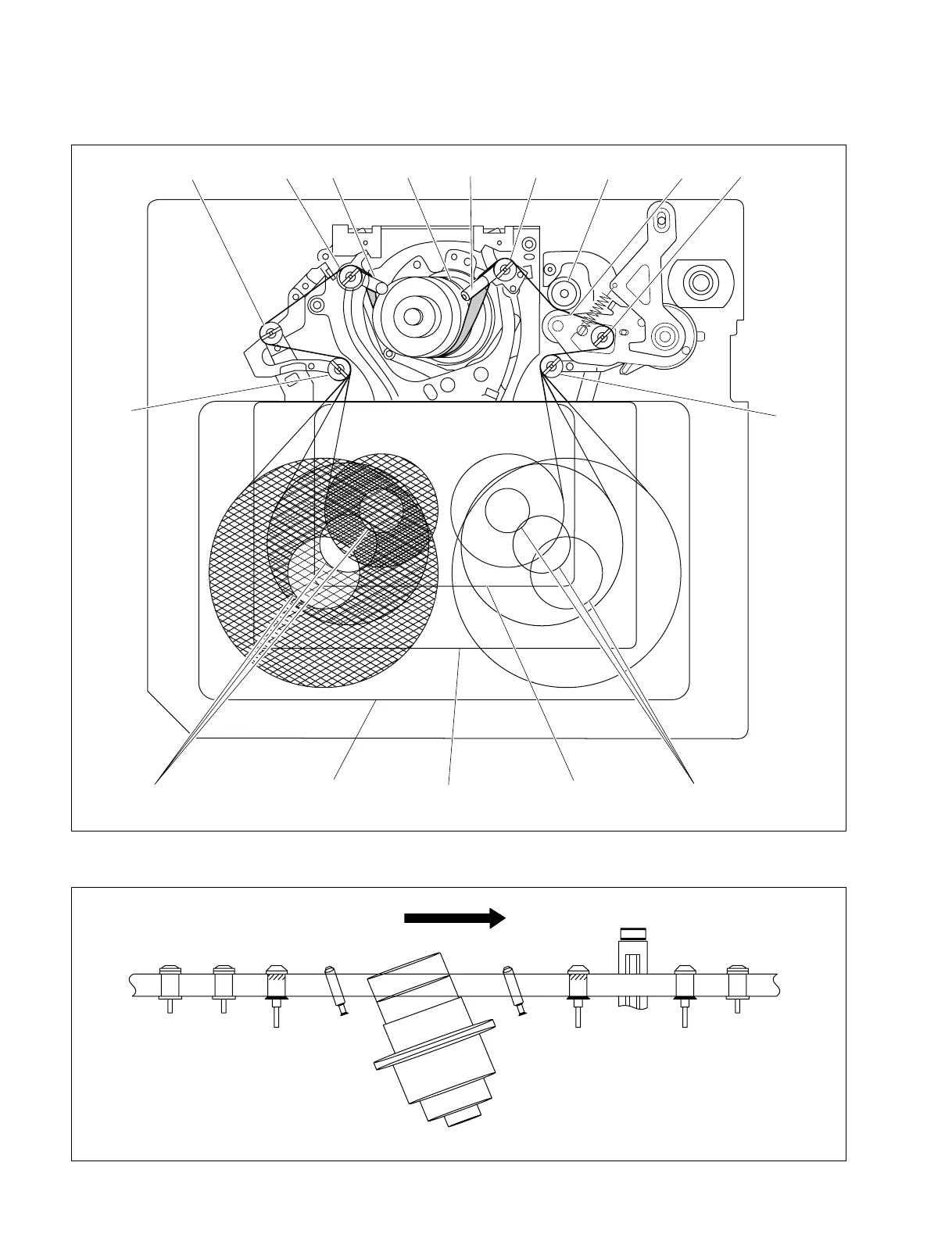

5. Tape guide locations
6. Tape running condition
FWD
T1 T2 T3 T4S1S2S3S4
(
)
S reel
Tension
regulator
Head drum
Capstan shaft
T reel
8-1. General Information for Tape Path Adjustment
