Sony HCD-M333 - 3-1. Top Panel Section

17
HCD-M333

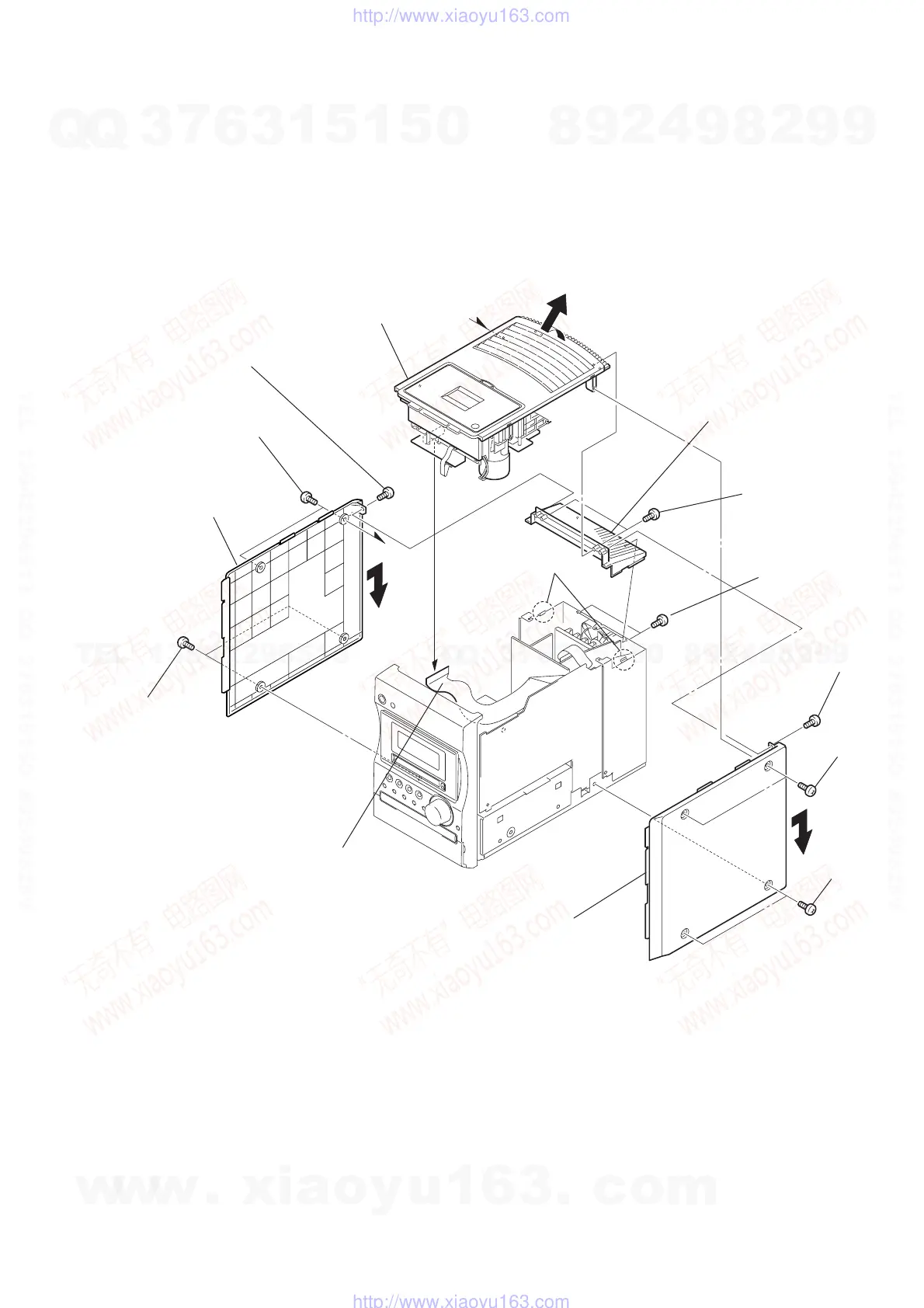

3-1. Top Panel Section
Note: Follow the disassembly procedure in the numerical order given.
a
a
6 two screws
(case 3 TP2)
2 two screws
(case 3 TP2)
5 two screws
(case 3 TP2
)
1 two screws (case 3 TP2)
qa case (T)
(Remove the direction of the arrow. )
8 case (R)
(Remove the direction of the arrow. )
4 case (L)
(Remove the direction of the arrow. )
qf cover (B/P)
qd two claws
7 screw
(BVTP 3 × 10)
3 screw (BVTP 3 × 10)
qs two screws
(BVTP 3 × 8)
9 two screws
(BVTP 3 × 10)
0 flat type wire
(19 core) (CN603)
