Sony HCD-M333 - 3-17. CD Mechanism Deck (CDM55 A-30 BBD61 B); 3-18. Cam (CDM55)

26
HCD-M333

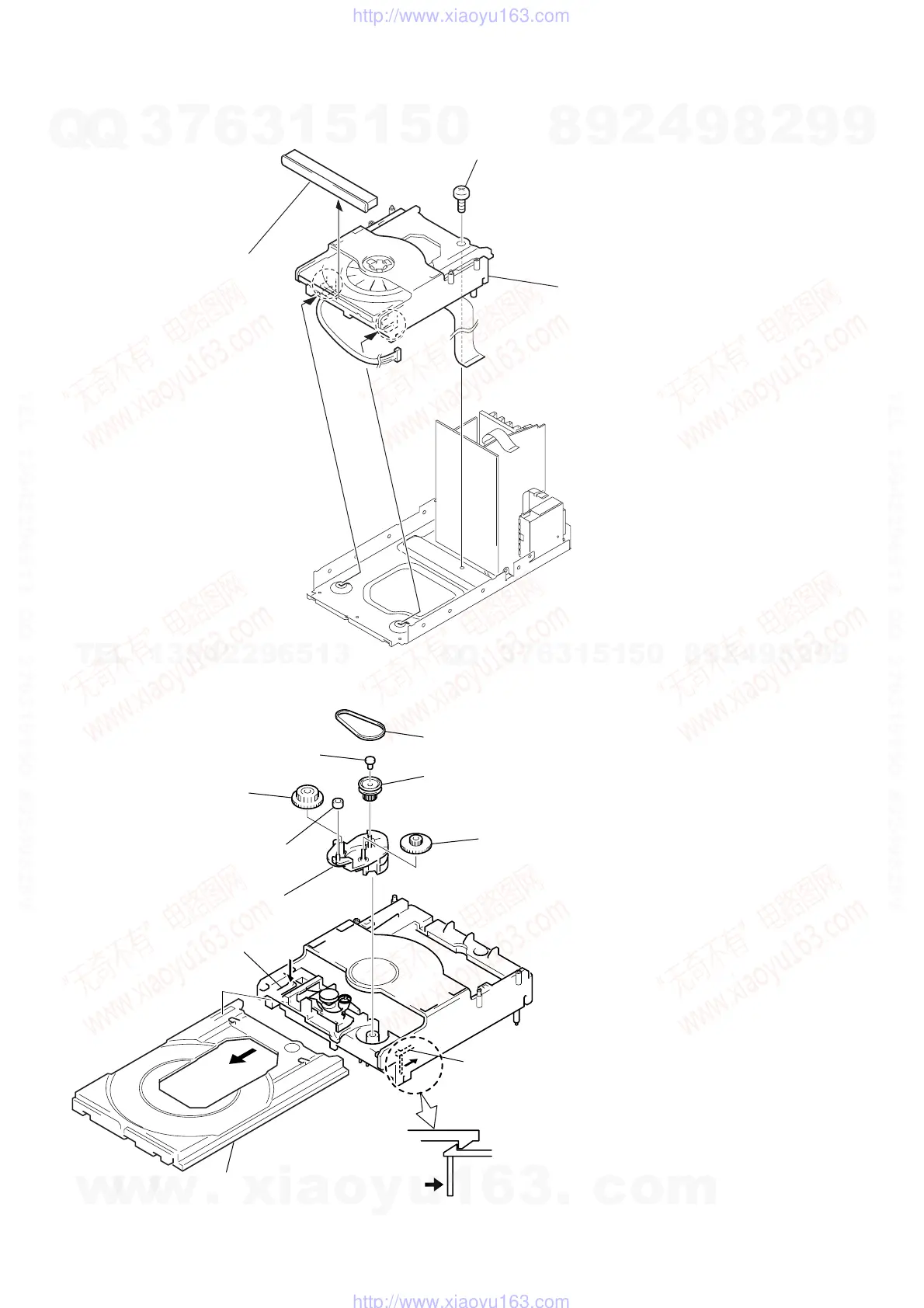

3-17. CD Mechanism Deck (CDM55A-30BBD61B)
2
2
1
screw (BVTT 3 × 6)
4 CD mechanism deck
(CDM55A-30BBD61B
)
3 loading panel asy
3-18. Cam (CDM55)
2 Push the claw in the
direction of the arrow
C .
1 Pull out the tray in the direction of the arrow A .
While pushing this claw in the direction of the arrow
B ,
release the lock.
Release the lock.
3 Pull out the tray.
4 belt (CDM55)
5 spacer (55)
6 pulley (LDG)
7 roller
q; cam (CDM55)
8 gear (B)
9 gear (A)
B
B
A
C
