HCD-M333

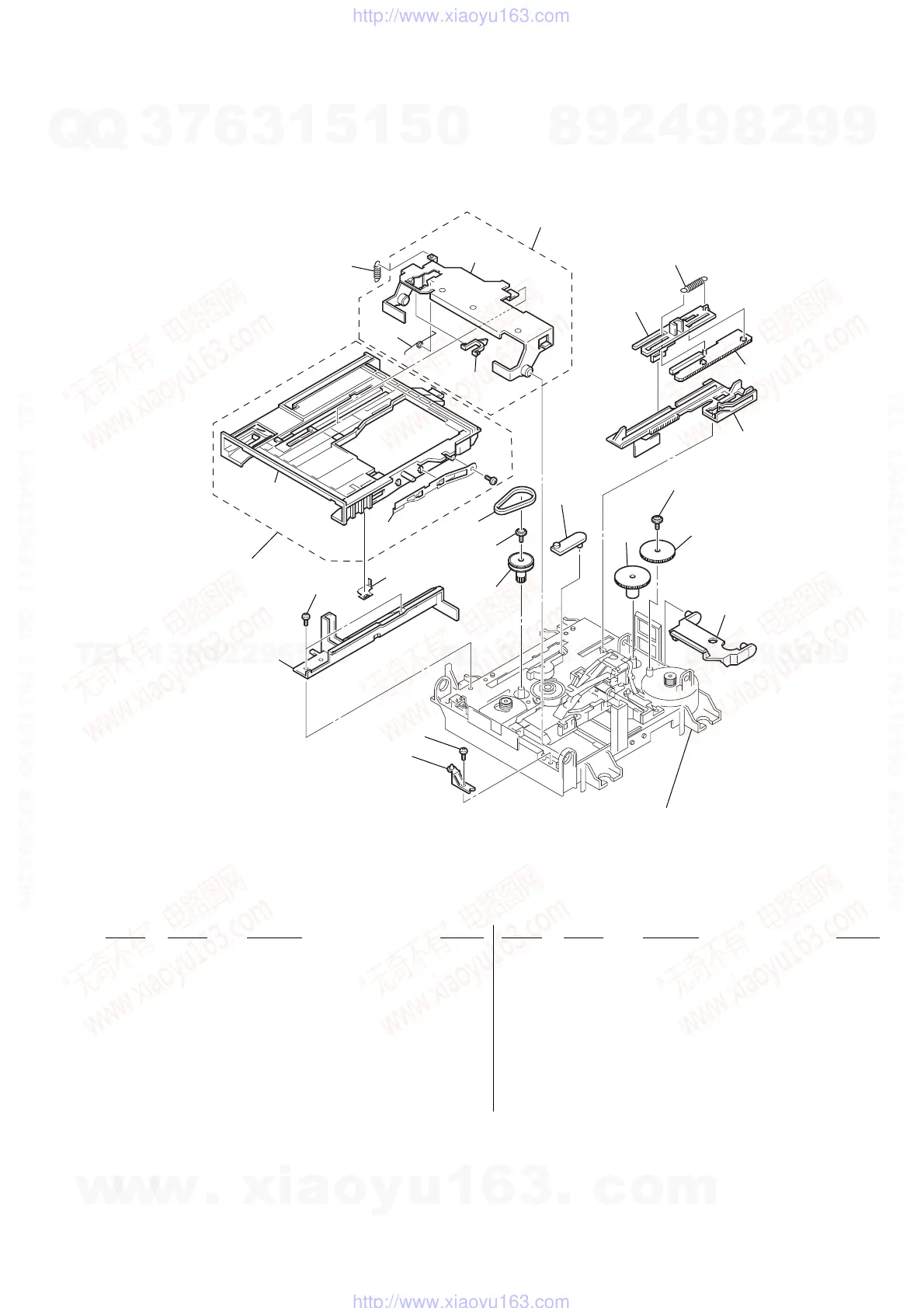

7-4. MD Mechanism Deck Section-1 (MDM-7S2D)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
158
157
156
152
151
170
157
152
161
162
160
159
163
164
165
166
169
168
167
155
153
154
not supplied
MD mechanism deck section-2
(MDM-7S2D)
not
supplied
not
supplied
#7
* 151 4-996-267-01 BASE (BU-D)
153 4-226-994-01 GUIDE (L)
154 A-4735-075-B HOLDER ASSY
155 X-4952-665-1 SPRING (SHT) ASSY, LEAF
156 4-227-002-01 GEAR, PULLEY
157 3-372-761-01 SCREW (M1.7), TAPPING
158 4-227-025-01 BELT (LOADING)
159 A-468-063-8A LOCK (HOLDER)
160 4-229-533-02 SPRING (STOPPER), TORSION
161 4-227-012-01 SPRING (HOLDER), TENSION
162 A-4680-638-B RETAINER COMPLETE ASSY
163 4-226-995-01 SLIDER (EJ)
164 4-227-013-01 SPRING (EJ), TENSION
165 4-226-996-01 LIMITTER (EJ)
166 4-226-997-04 SLIDER
167 4-226-998-01 LEVER (CHG)
168 4-227-007-01 GEAR (SB)
169 4-227-006-01 GEAR (SA)
170 4-226-999-01 LEVER (HEAD)
#7 7-685-850-04 SCREW +BVTT 2X3 (S)
