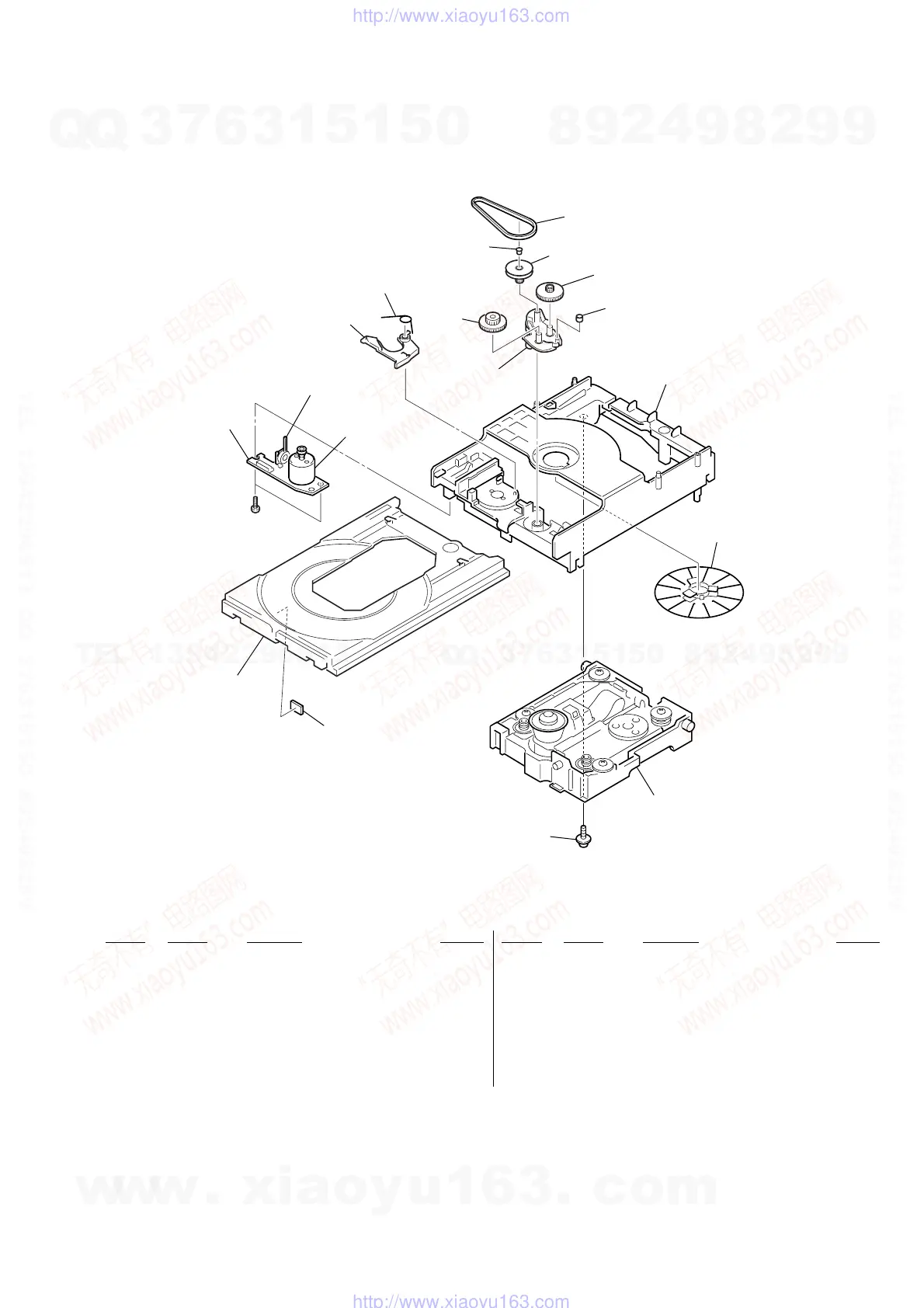

7-6. CD Mechanism Deck Section-1 (CDM55A-30BBD61B)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
255
254
257
259
260
261
262
256
252
253
258
251
265
267
M201
S1
#9
not
supplied
CD mechanism deck section-2
(BU-30BBD61B)
251 4-925-315-31 DAMPER
252 4-224-894-22 TRAY (CDM55D)
254 4-220-229-02 LEVER (SW)
255 4-220-239-01 SPRING, TORSION
256 4-220-233-01 CAM (CDM55)
257 4-220-238-01 GEAR (B)
258 4-227-598-01 SPACER (55)
259 4-221-816-01 BELT (CDM55)
260 4-220-234-01 PULLEY (LDG)
261 4-220-237-01 GEAR (A)
262 4-221-815-11 ROLLER
265 X-4953-668-2 PULLEY (4TCD) ASSY
267 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
M201 A-4735-337-A MOTOR (LD) ASSY (LOADING)
#9 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
