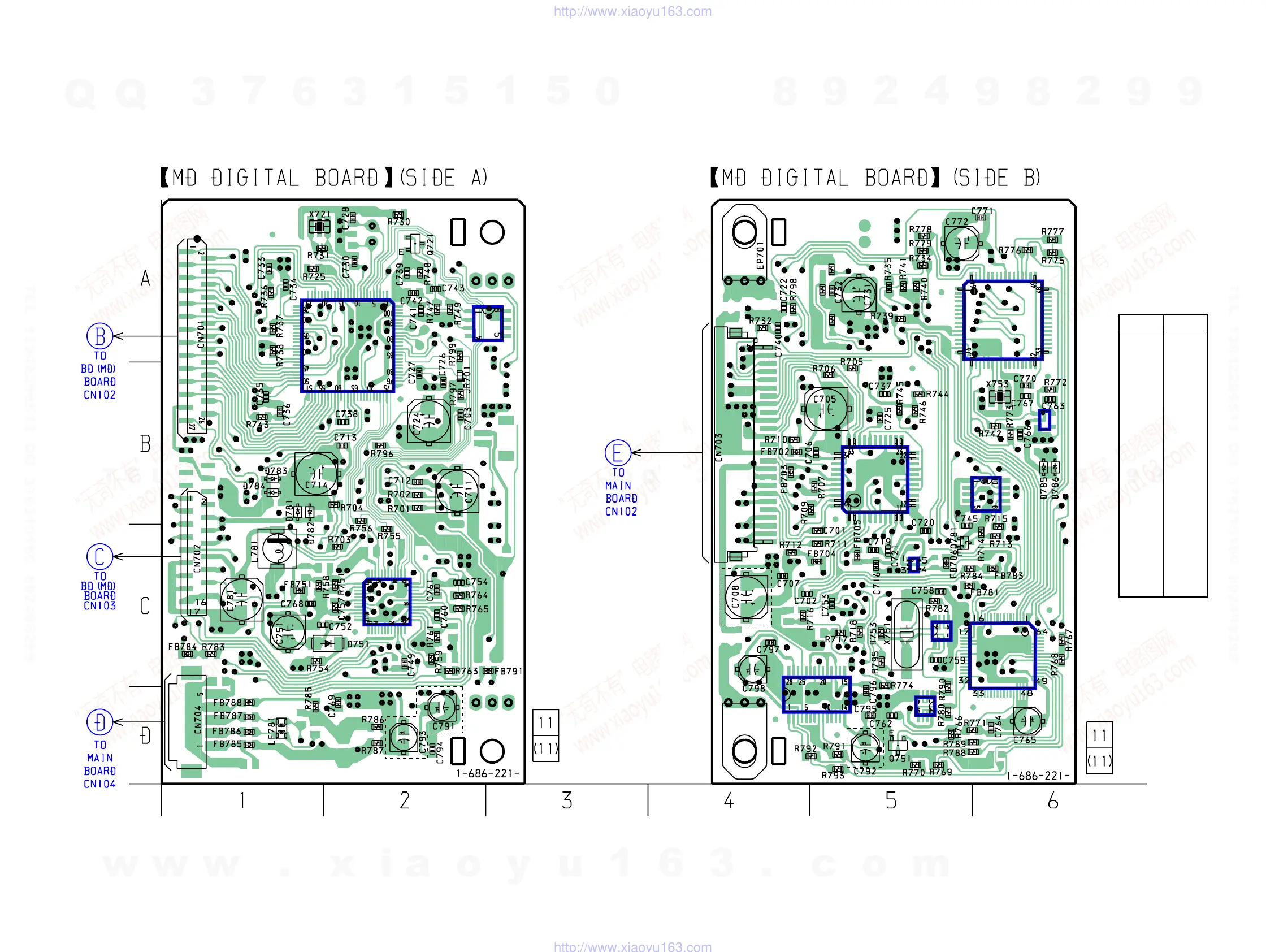

6-8. Printed Wiring Board – MD DIGITAL Board –
• See page 47 for Circuit Boards Location.
IC704
IC702
IC705
IC751
IC781
IC753
IC706
IC703
IC752
IC701
IC722
IC721
1
3
4
5
(Page 54)
(Page 54)
(Page 62)
(Page 62)
R722
R721
AEP,UK,HK
AEP,UK,HK
AEP,UK,HK
R726
Ref. No. Location
D751 C-2
D781 B-1
D782 B-1
D783 B-1
D784 B-1
* D785 B-6
* D786 B-6
* IC701 B-5
IC702 A-2
* IC703 C-6
* IC704 A-6
IC705 C-2
* IC706 D-5
IC721 A-3
* IC722 C-5
* IC751 B-6
* IC752 C-5
* IC753 D-5
* IC781 B-6
Q721 A-2
* Q751 D-5
* Q781 C-5
* SIDE B
• Semiconductor
Location
