92
HCD-M333

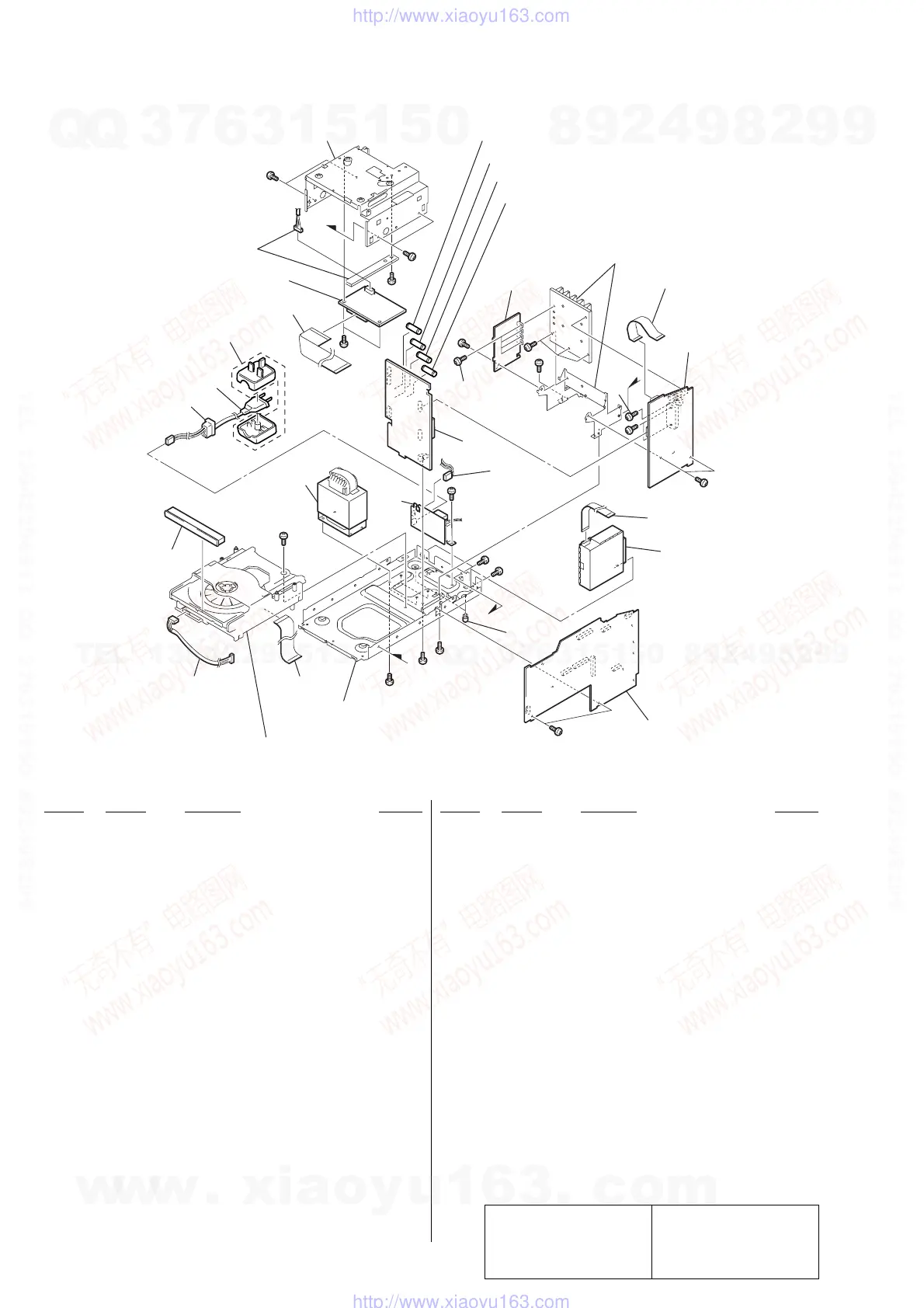

7-3. Back Panel Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101
104
105
106
106
107
108
109
116
F987
F983
F981
F985
110
111
114
112
115
113
102
103
#12
not
supplied
not
supplied
T900
not
supplied
not
supplied
not supplied
not supplied
CD mechanism deck section
(CDM55A-30BBD61B)
#1
#1
#1
#12
#12
#6
#5
#1
#12
#12
#12
#1
#12
#12
#12
#12
#12
a
a
b
b
101 X-4955-203-2 PANEL, LOADING ASSY
103 1-824-699-11 WIRE (FLAT TYPE)(23 CORE)
104 A-4730-631-A DIGITAL BOARD, COMPLETE
105 1-827-294-11 WIRE (FLAT TYPE)(25 CORE)
106 1-769-940-11 WIRE (FLAT TYPE)(11 CORE)(EXCEPT AEP,UK)
106 1-773-004-11 WIRE (FLAT TYPE)(15 CORE)(AEP,UK)
107 1-693-604-11 TUNER (FM/AM)(AEP,UK)
107 1-693-605-11 TUNER (FM/AM)(HK,KR,CH,AUS)
107 1-693-623-31 TUNER (FM/AM)(CND)
108 A-4732-582-A MAIN BOARD, COMPLETE (AEP,UK)
108 A-4732-589-A MAIN BOARD, COMPLETE
(EXCEPT CND,AEP,UK)
108 A-4747-421-A MAIN BOARD, COMPLETE (CND)
110 A-4732-583-A AMP BOARD, COMPLETE
111 A-4732-585-A POWER BOARD, COMPLETE
0112 1-769-079-12 CORD, POWER (KR)
0112 1-775-787-62 CORD, POWER (AEP,UK,HK)
0112 1-775-790-61 CORD, POWER (AUS)
0112 1-782-464-12 CORD, POWER (CH)
0112 1-783-531-32 CORD, POWER (CND)
113 3-703-244-00 BUSHING (2104), CORD
114 3-531-576-01 RIVET
0115 1-770-019-51 ADAPTOR, CONVERSION PLUG (UK,HK)
116 4-951-620-01 SCREW (2.6X8) +BVTP
0F981 1-533-452-11 FUSE, GLASS TUBE (DIA. 5)(4A/125V)(CND)
0F981 1-533-471-11 FUSE, GLASS TUBE (DIA. 5)(T4AL/250V)
(EXCEPT CND)
0F983 1-533-452-11 FUSE, GLASS TUBE (DIA. 5)(4A/125V)(CND)
0F983 1-533-471-11 FUSE, GLASS TUBE (DIA. 5)(T4AL/250V)
(EXCEPT CND)
0F985 1-533-452-11 FUSE, GLASS TUBE (DIA. 5)(4A/125V)(CND)
0F985 1-533-471-11 FUSE, GLASS TUBE (DIA. 5)(T4AL/250V)
(EXCEPT CND)
0F987 1-533-452-11 FUSE, GLASS TUBE (DIA. 5)(4A/125V)(CND)
0F987 1-533-471-11 FUSE, GLASS TUBE (DIA. 5)(T4AL/250V)
(EXCEPT CND)
0T900 1-437-950-11 TRANSFORMER, POWER(AEP,UK,HK)
0T900 1-437-951-11 TRANSFORMER, POWER(KR,CH)
0T900 1-439-874-11 TRANSFORMER, POWER(CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-861-01 SCREW +BVTT 2.6X5 (S)
#5 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#6 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT(B)
#12 7-685-871-01 SCREW +BVTT 3X6 (S)
Ver 1.1 2003.05
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
