Sony HCD-M333 - 3-9. Holder Assy; 3-10. BD (MD) Board

22
HCD-M333

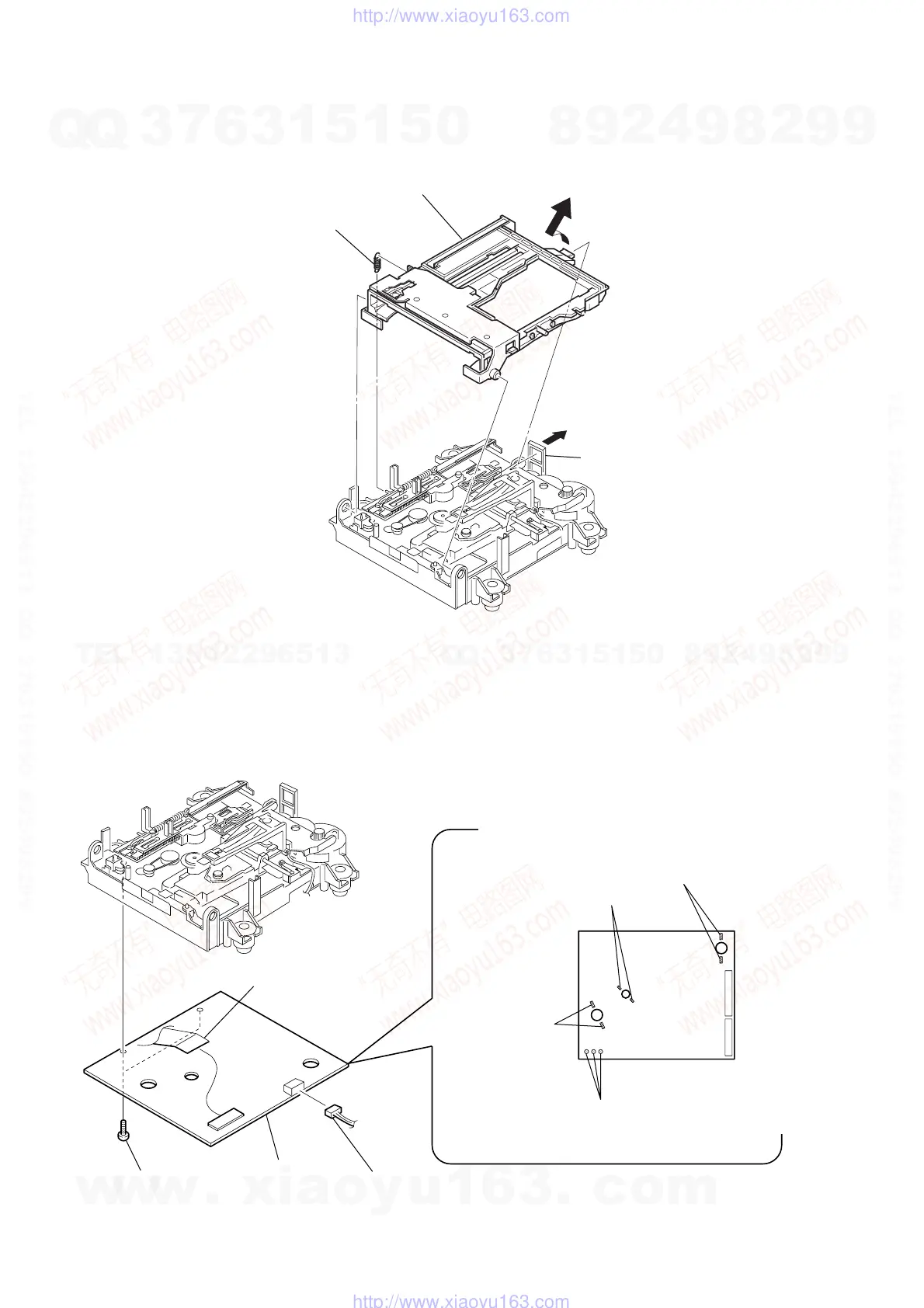

3-10. BD (MD) Board
3-9. Holder Assy
3 holder assy
1 tension spring (holder)
2 hoo
k
1 Remove the
two solderings (sled motor)
2 Remove the
two solderings (spindle motor)
3 Remove the
two solderings
(loading motor)
4 Remove the
three solderings
M102
M101
M103
S102
6 flexible board
(CN101)
7 connector cable (CN104)
8 BD (MD) board
5 two screws
(+B (P) TRI 2
× 6 CZN)
