HCD-M333
IC401
(EXCEPT HK
,
KR (SILVER))
(LIQUID CRYSTAL DISPLAY UNIT)
(LCD PANEL LIGHT)
(LCD PANEL LIGHT)
(LCD BACKLIGHT)
(LCD BACKLIGHT)
R468
3
4
(HK,KR (SILVER))
(Page 62)
(Page 71)
(Page 65)
3

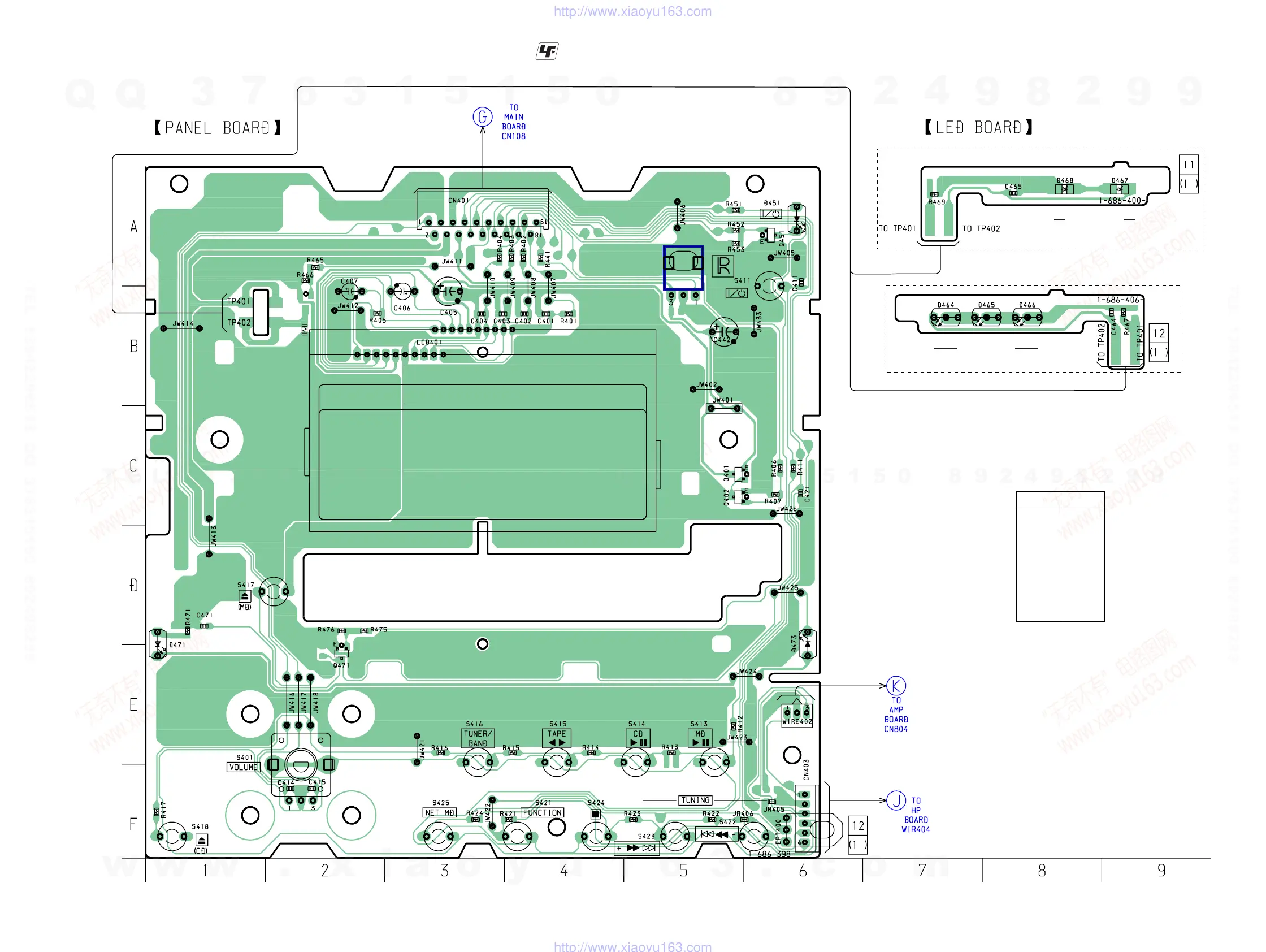

6-18. Printed Wiring Board – PANEL Section –
• See page 47 for Circuit Boards Location.
• : Uses unleaded solder.
Ref. No. Location
D451 A-6
D471 D-1
D473 E-6
IC401 A-5
Q401 C-5
Q402 C-5
Q451 A-6
Q471 E-2
• Semiconductor
Location
Ver 1.1 2003.05
