Sony HCD-M333 - 6-24. Printed Wiring Board - POWER Board -

7373
HCD-M333

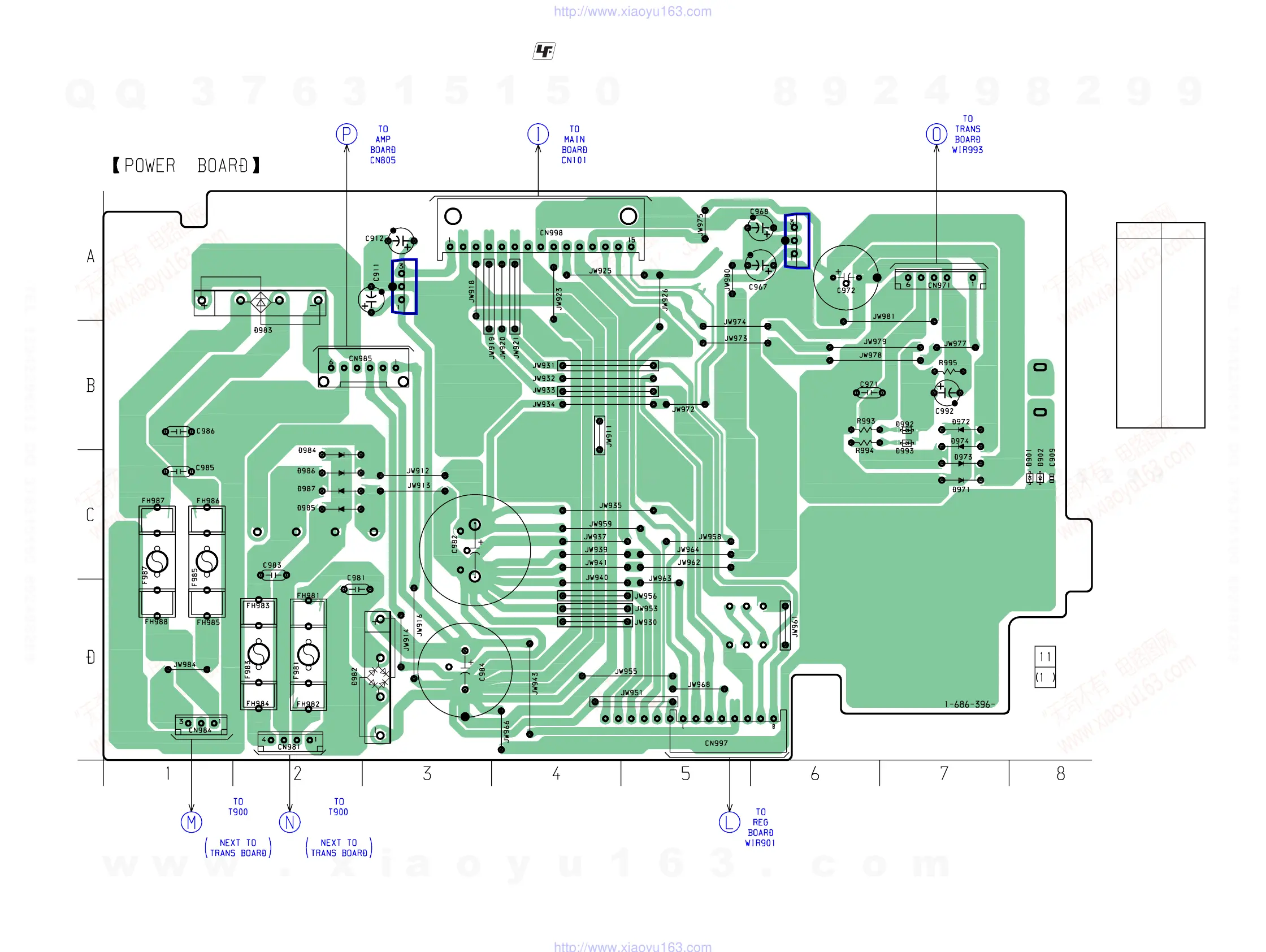

6-24. Printed Wiring Board – POWER Board –
• See page 47 for Circuit Boards Location.
• : Uses unleaded solder.
IC911
IC967
POWER
TRANSFORMER
POWER
TRANSFORMER
(Page 71)
(Page 69) (Page 69)
(Page 69)
(Page 62)
(Page 69)
3
Ref. No. Location
D901 C-8
D902 C-8
D971 C-7
D972 B-7
D973 C-7
D974 B-7
D982 D-3
D983 A-2
D984 C-2
D985 C-2
D986 C-2
D987 C-2
D992 B-7
D993 B-7
IC911 A-3
IC967 A-6
• Semiconductor
Location
