91
HCD-M333

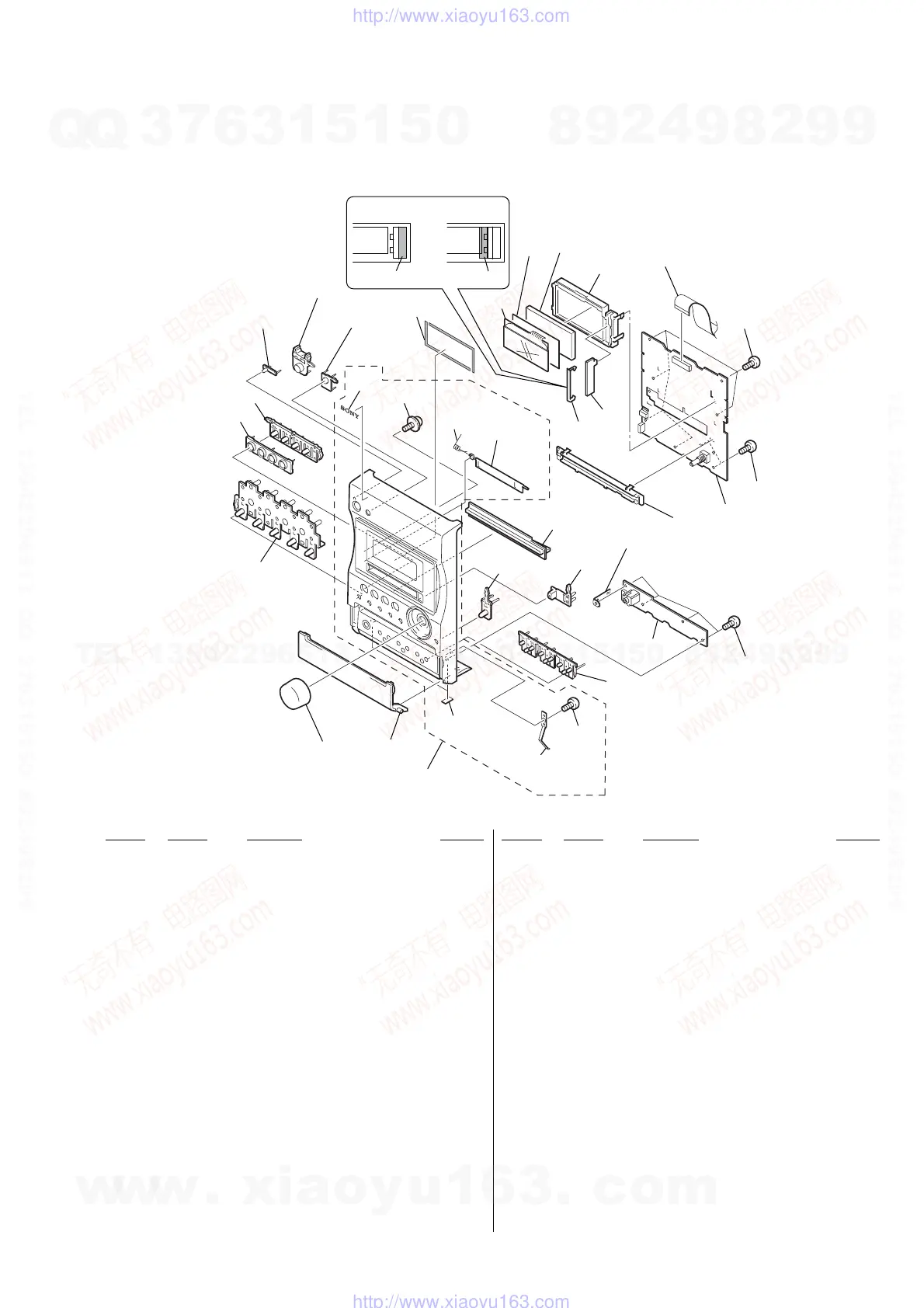

7-2. Front Panel Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51
57
57
58
59
60
63
62
61
77
65
66
67
71
71
71
69
72
78
73
74
76
68
64
75
70
71
52
53
54
55
56
not
supplied
not
supplied
LCD401
SILVER
EXCEPT
SILVER
not
supplied
57
51 4-925-161-81 EMBLEM (4-A), SONY (EXCEPT HK,KR)
51 4-925-161-91 EMBLEM (4-A), SONY (HK,KR)
52 4-246-117-01 KNOB SPIN (VOL)
53 4-243-197-03 LID (REC)(WHITE)(HK)
53 4-243-197-13 LID (REC)(SILVER)(HK,KR)
53 4-243-197-23 LID (REC)(BLUE)(CND,CH,AUS)
53 4-243-197-31 LID (REC)(AEP,UK)
54 4-239-731-01 FOOT (FELT)
55 4-231-954-01 SPRING (LID MD), TORSION
56 X-4955-098-4 PANEL ASSY/W, FRONT (WHITE)(HK)
56 X-4955-101-6 PANEL ASSY/S, FRONT (SILVER)(HK,KR)
56 X-4955-104-6 PANEL ASSY/NT, FRONT (EXCEPT HK,KR)
57 4-243-201-01 SPACER (LCD)
58 4-243-192-01 INDICATOR (POWER)
59 4-243-204-01 BUTTON (POWER)
60 4-243-222-01 WINDOW (IR)(HK,KR)
60 4-243-222-11 WINDOW (IR)(EXCEPT HK,KR)
61 4-243-206-02 BUTTON (FUNC) ASSY
62 4-243-191-13 RING (FUNCTION)
63 4-243-223-03 BUTTON (PLAY)(EXCEPT (SILVER)(HK,KR))
63 4-243-223-13 BUTTON (PLAY)(SILVER)(HK,KR)
64 4-243-198-01 PLATE, LIGHT GUIDE
65 4-243-208-01 BUTTON (MD EJECT)
(EXCEPT (SILVER)(HK,KR))
65 4-243-208-11 BUTTON (MD EJECT)(SILVER)(HK,KR)
66 4-243-218-02 BUTTON (CD) ASSY
67 4-243-216-02 BUTTON (REC)(WHITE)(HK)
67 4-243-216-12 BUTTON (REC)(SILVER)(HK,KR)
67 4-243-216-23 BUTTON (REC)(AEP,UK)(EXCEPT HK,KR)
68 4-243-225-01 SHEET, DIFFUSION
69 A-4732-584-A H/P BOARD, COMPLETE
71 4-951-620-01 SCREW (2.6X8), +BVTP
72 4-243-199-01 HOLDER (LCD)
73 1-773-121-11 WIRE (FLAT TYPE)(19 CORE)
75 A-4732-580-A PANEL BOARD, COMPLETE
(EXCEPT (SILVER)(HK,KR))
75 A-4734-754-A PANEL BOARD, COMPLETE (SILVER)(HK,KR)
76 1-686-400-11 LED BOARD
(EXCEPT (SILVER)(HK,KR))
76 1-686-406-12 LED BOARD (SILVER)(HK,KR)
77 4-243-202-02 INDICATOR (MD LIGHT)
78 4-236-666-01 CUSHION (LCD)
LCD401 1-804-785-11 DISPLAY PANEL, LIQUID CRYSTAL
Ver 1.1 2003.05
