Sony HCD-M333 - 3-15. REG Board, AMP Board; 3-16. TRANS Board

25
HCD-M333

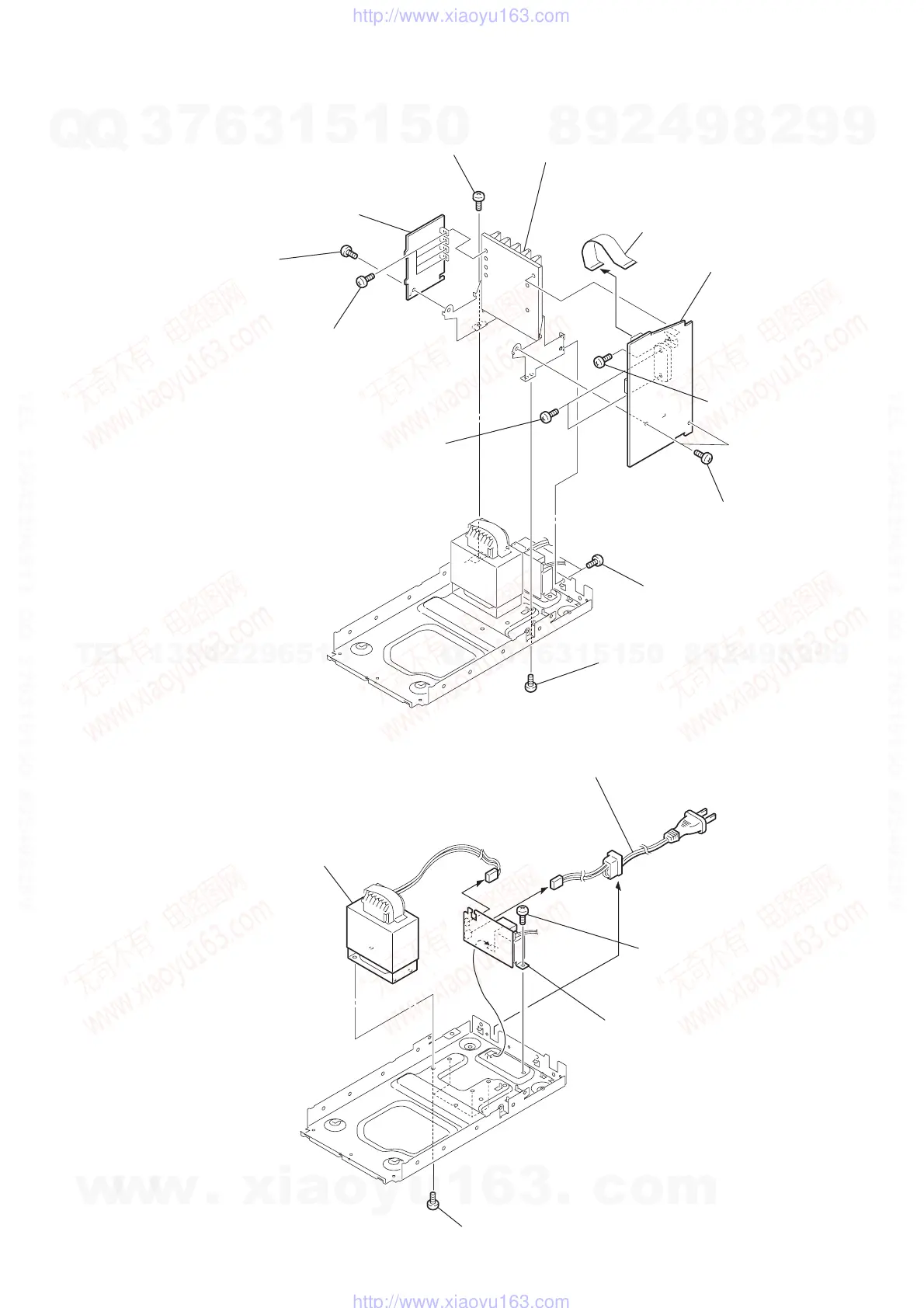

3-15. REG Board, AMP Board
3-16. TRANS Board
2 screw (BVTT 3 × 6)
9 two screws (BVTT 3 × 6)
1 two screws (BVTT 3 × 6)
3 screw (BVTT 3 × 6)
4 four screws (BVTP 2.6 × 8)
8 two screws (BVTP 3 × 16)
5 screw (BVTT 3 × 6)
6 REG board
7 screw (BVTP 3 × 8
)
qa AMP board
heat sink
0 flat type wire (11 core) (CN106)
6 TRANS board
2 power transformer (T900)
4
5
power cord
1 four screws (BVTT 3 × 6)
3 screw (BVTT 3 × 6
)
