HCD-M333

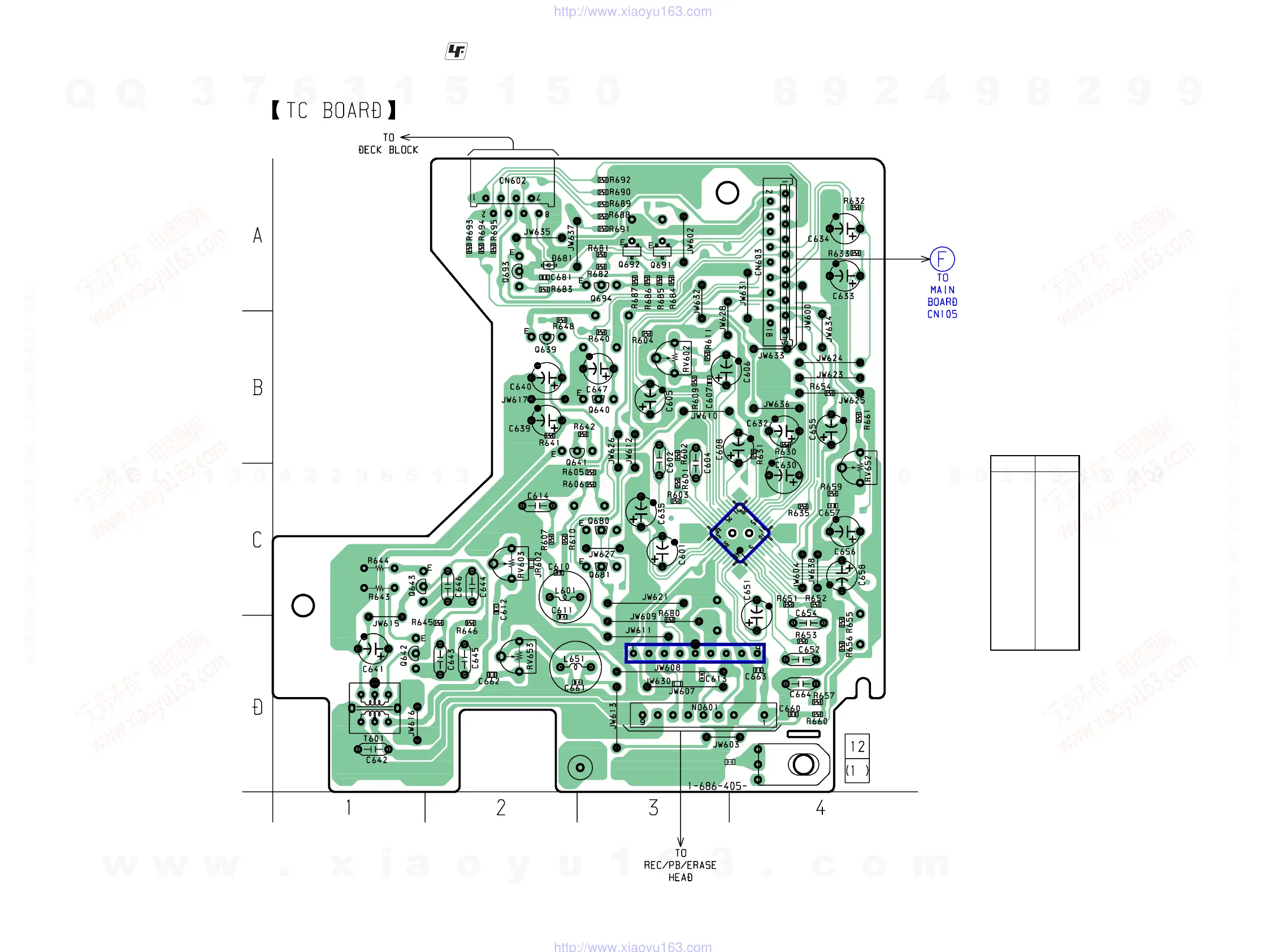

6-11. Printed Wiring Board – TC Board –
• : Uses unleaded solder.
• See page 47 for Circuit Boards Location.
IC601
IC602
(Page 62)
4
EPT600
C648
Ref. No. Location
D681 A-2
IC601 C-4
IC602 D-3
Q639 B-2
Q640 B-3
Q641 B-3
Q642 D-1
Q643 C-1
Q680 C-3
Q681 C-3
Q691 A-3
Q692 A-3
Q693 A-2
Q694 A-3
• Semiconductor
Location
