96
HCD-M333

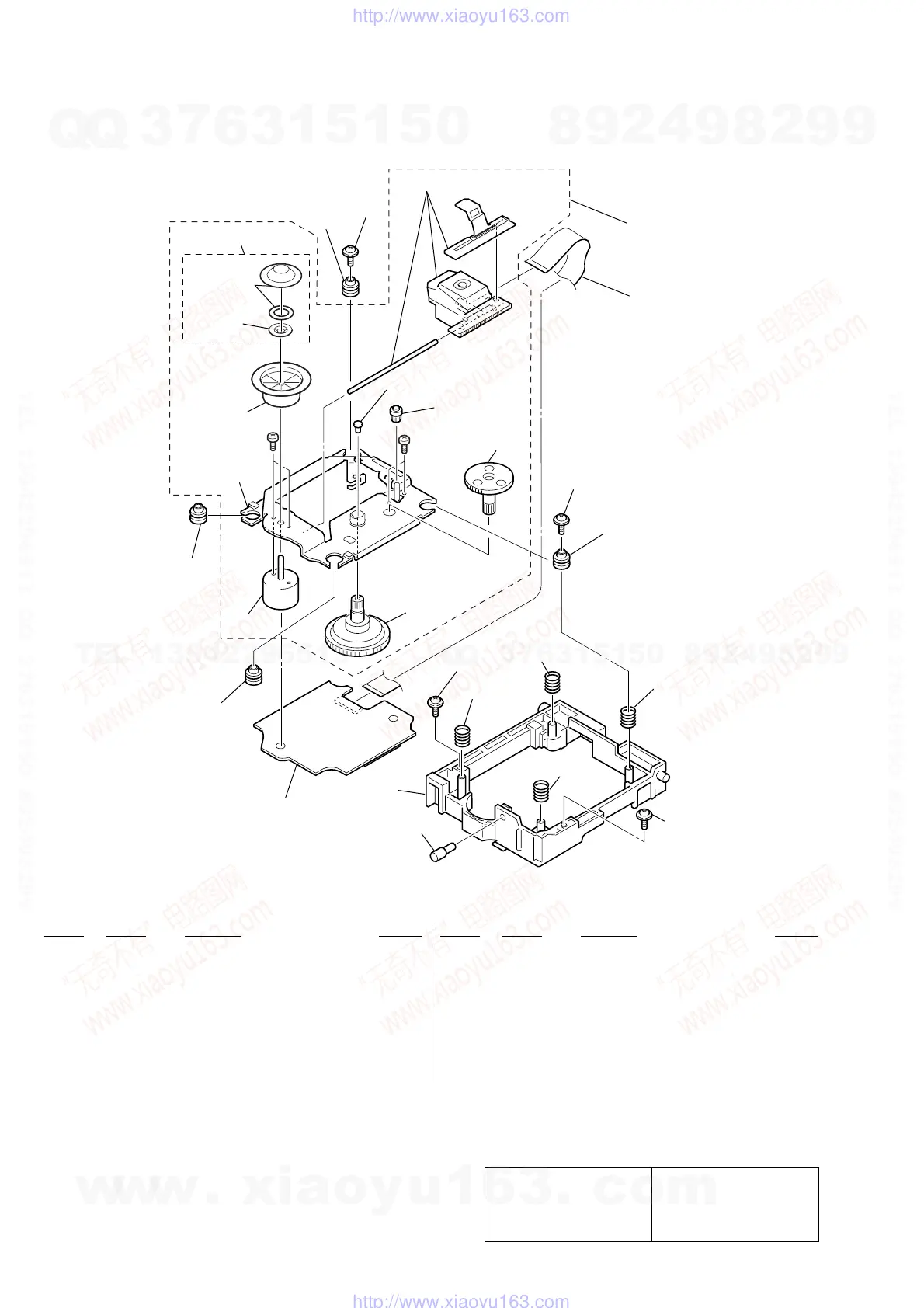

7-7. CD Mechanism Deck Section-2 (BU-30BBD61B)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
307
307
307
307
306
309
M901
306
311
306
306
312
304
305
303
303
303
303
302
301
not supplied
not
supplied
not
supplied
supplied with 311
#10
#10
314
not
supplied
315
316
301 4-229-358-01 SHAFT (BU21)
302 4-238-004-01 HOLDER (BU-30), BU
303 4-227-045-31 SPRING (INSULATOR), COIL
304 A-4727-463-A BD (CD) BOARD, COMPLETE
305 1-782-817-11 WIRE (FLAT TYPE)(16 CORE)
306 4-231-451-01 INSULATOR (BU-30)
307 4-227-899-01 SCREW (DIA. 12), FROATING
309 A-4735-001-A PULLEY ASSY, DISC
311 4-233-832-01 GEAR (LB)
312 4-233-831-01 GEAR (LA)
0314 A-4735-885-A BU-30B ASSY
315 4-232-512-01 NUT, PUSH
316 A-4735-000-A CAP ASSY, CENTERING
#10 7-627-853-28 SCREW, PRECISION +P 2X3 TYPE3
M901 1-763-802-11 MOTOR, DC
Ver 1.1 2003.05
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
