Sony HCD-M333 - 3-11. Motor Section; 3-12. Over Write Head (HR901)

23
HCD-M333

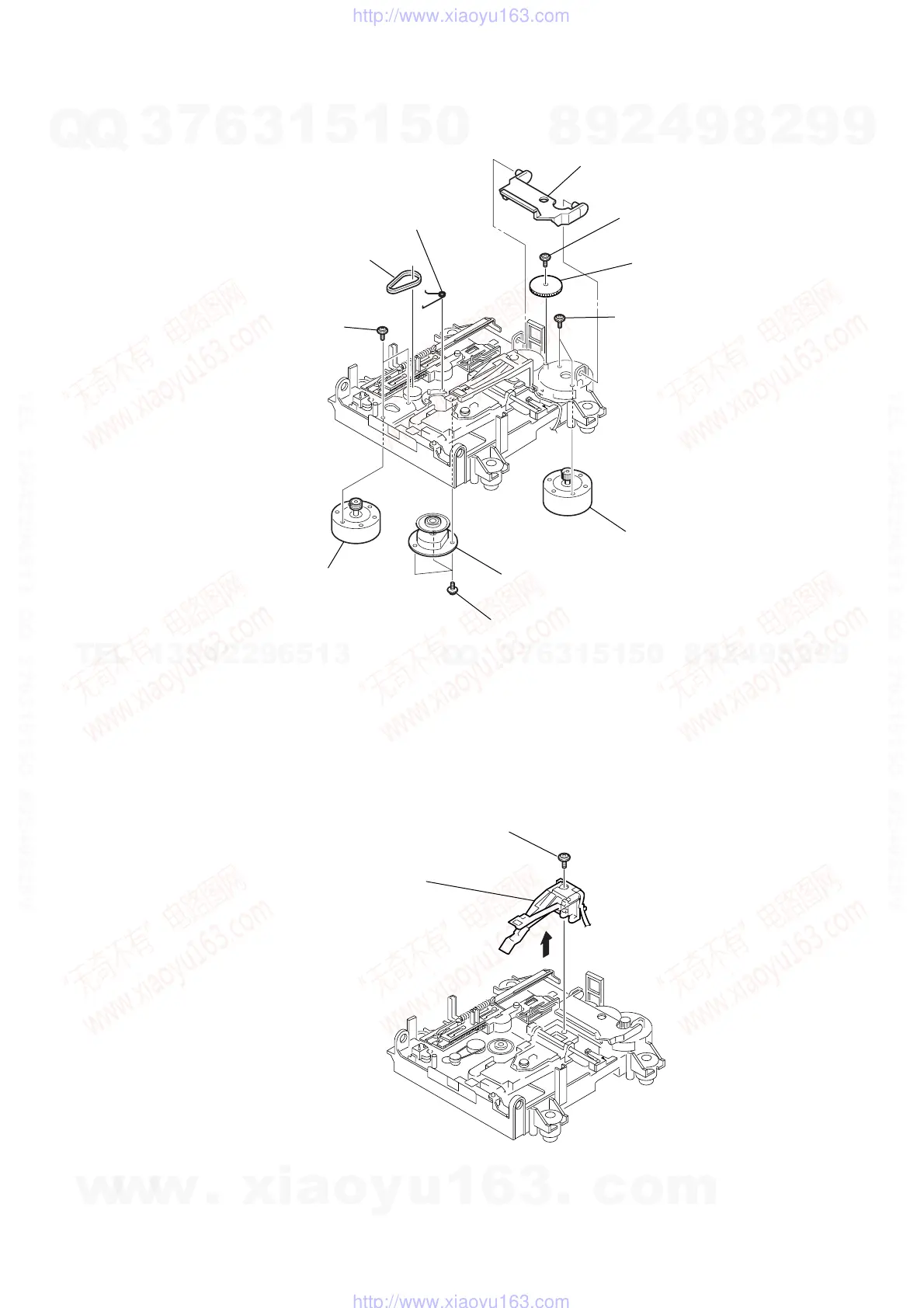

3-11. Motor Section
3-12. Over Write Head (HR901)
1 lever (head)
2 belt (loading)
3 torsion spring (spindle)
9 gear (sa)
4 two screws
(PWH 1.7 × 3.5)
0 two screws
(PWH 1.7
× 2.5)
8 tapping screw
(M1.7 )
qa sled motor assembl
y
(M102)
6 three tapping screws
(M1.7 )
5 loading motor assembly
(M103)
7 spindle motor assembly
(M101)
1 screw (P 1.7 × 6)
2 over write head
(HR901)
