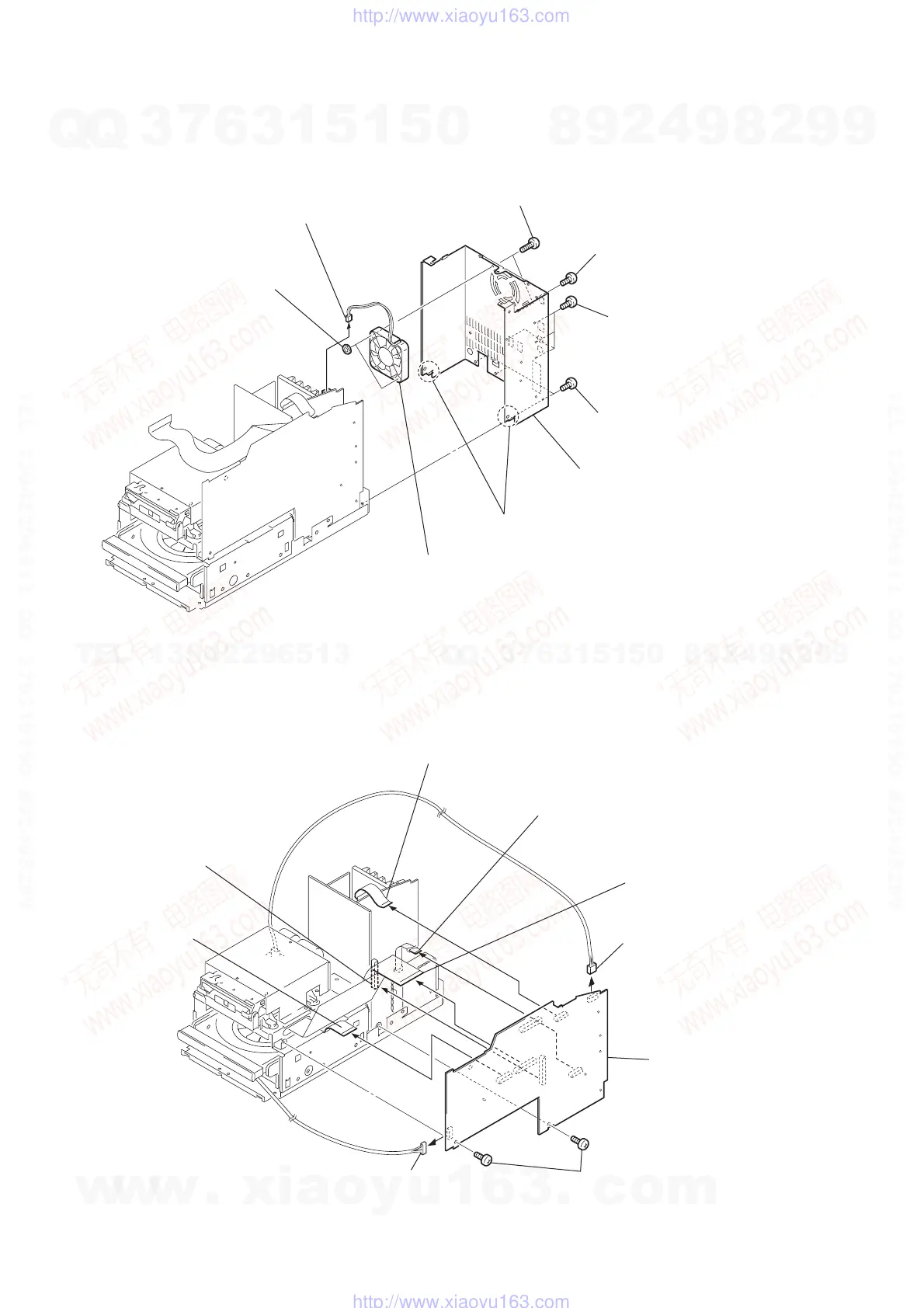

Sony HCD-M333 - 3-5. Back Panel Section; 3-6. MAIN Board

20
HCD-M333
3-6. MAIN Board
3-5. Back Panel Section
6 two screws (B 4 × 12)
7 two nuts (N4)
3 four screws (BVTP 3 × 8
)
4 three screws (BVTP 3 × 8)
5 two claws
9 back panel
8 DC fan
1 connector (CN803)
2 screw (BVTT 3 × 6)
3 two screws (BVTP 3 × 8)
9 MAIN board
2 connector (CNP104
)
1 connector (CNP109)
4 connector (CNP998)
8 flat type wire
(25 core)(CN102)
7 flat type wire
(23 core)(CN103)
6 flat type wire
(11 core)(CN110)
5 flat type wire
(11 core)(CN106)
