Sony HCD-M333 - 6-22. Printed Wiring Board - AMP Board -

7171
HCD-M333

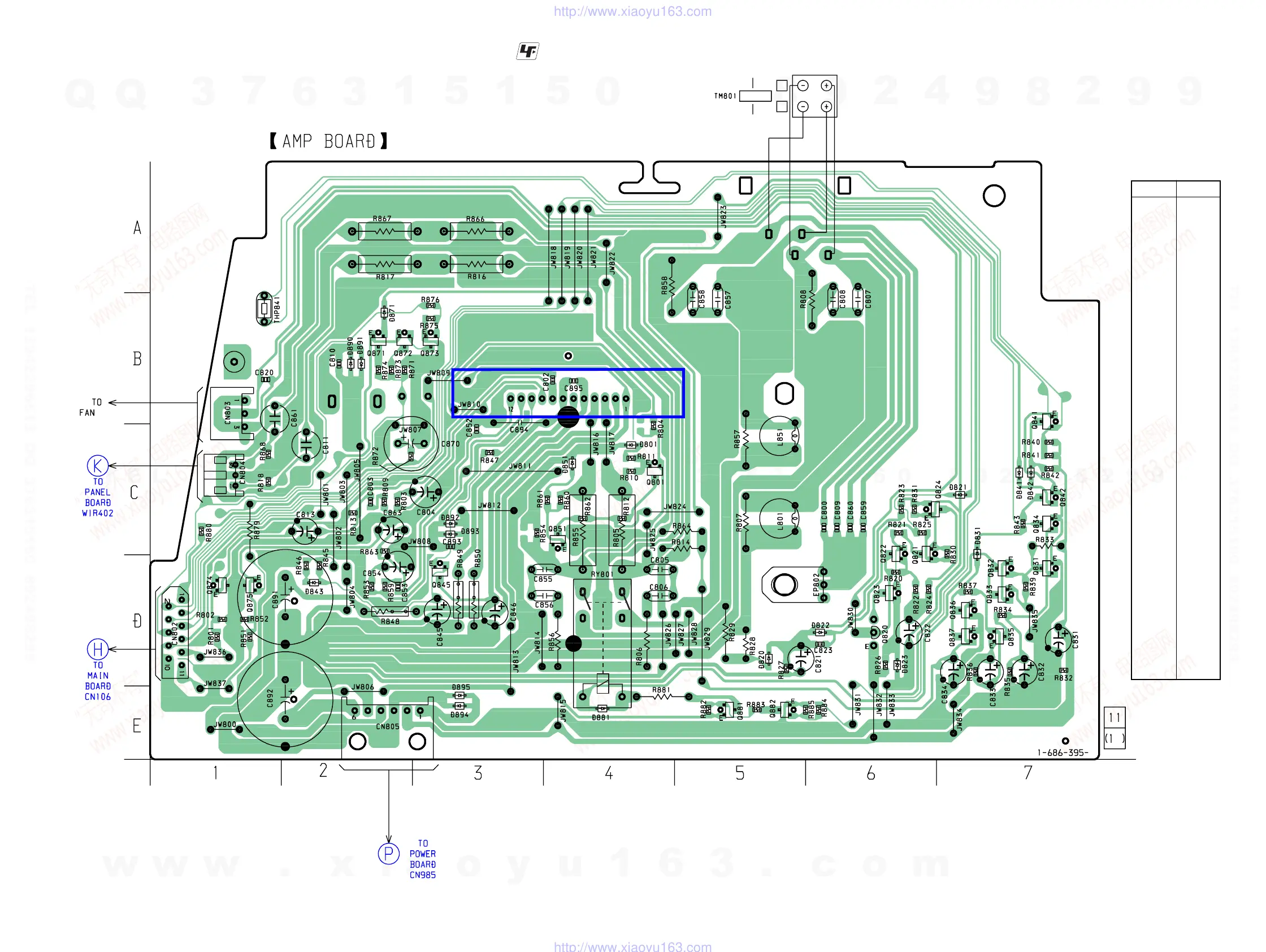

6-22. Printed Wiring Board – AMP Board –
• See page 47 for Circuit Boards Location.
• : Uses unleaded solder.
L
R
IC803
(Page 67)
(Page 62)
(Page 73)
3
SPEAKER
801
Ref. No. Location
D801 C-4
D821 C-7
D822 D-6
D823 D-6
D831 C-7
D841 C-7
D842 C-7
D843 D-2
D851 C-4
D871 B-2
D881 E-4
D890 B-2
D891 B-2
D892 C-3
D893 C-3
D894 E-3
D895 E-3
IC803 B-4
Q801 C-4
Q820 D-6
Q821 C-6
Q822 C-6
Q823 D-6
Q824 C-7
Q831 D-7
Q832 D-7
Q833 D-7
Q834 C-7
Q835 D-7
Q836 D-7
Q837 D-7
Q841 B-7
Q842 C-7
Q845 D-3
Q851 C-4
Q871 B-2
Q872 B-2
Q873 B-3
Q874 D-1
Q875 D-1
Q881 E-5
Q882 E-5
• Semiconductor
Location
