Type C
Disconnecting

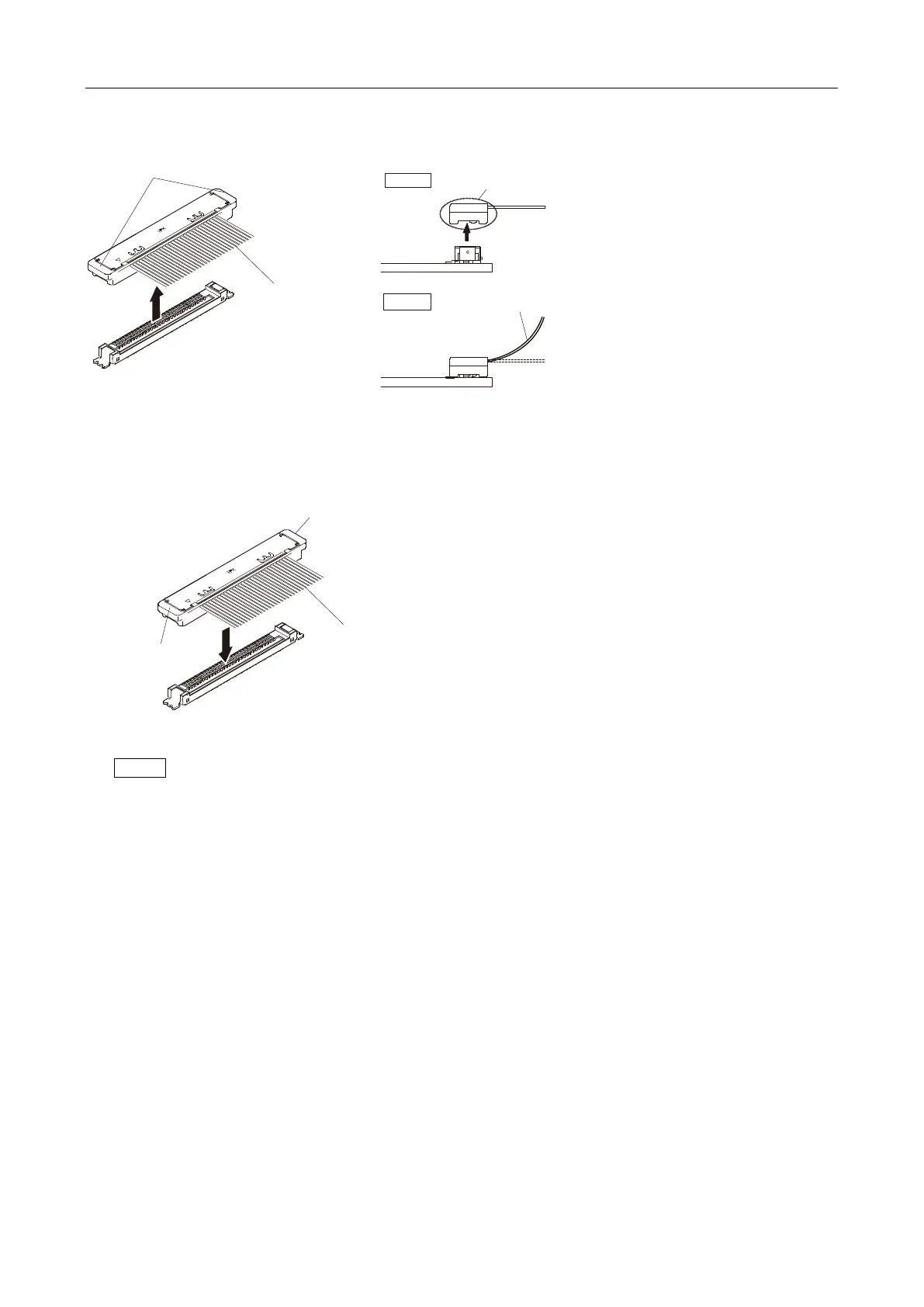

1. Hold both sides of the fine-wire coaxial cable connector, and pull the connector portion of the fine-wire coaxial cable in the
direction of the arrow to disconnect it.
Connecting
1. Insert the connector portion of the fine-wire coaxial cable in the direction of the arrow to connect it.
Note
Insert the connector portion of the fine-wire coaxial cable firmly into the interior.
Correct
Wrong
Fine-wire coaxial cable
Hold the connector to disconnect.
Do not attempt to disconnect by
pulling the cable.
Both sides of connector
Fine-wire coaxial cable
Side of connector
Side of connector
