Note

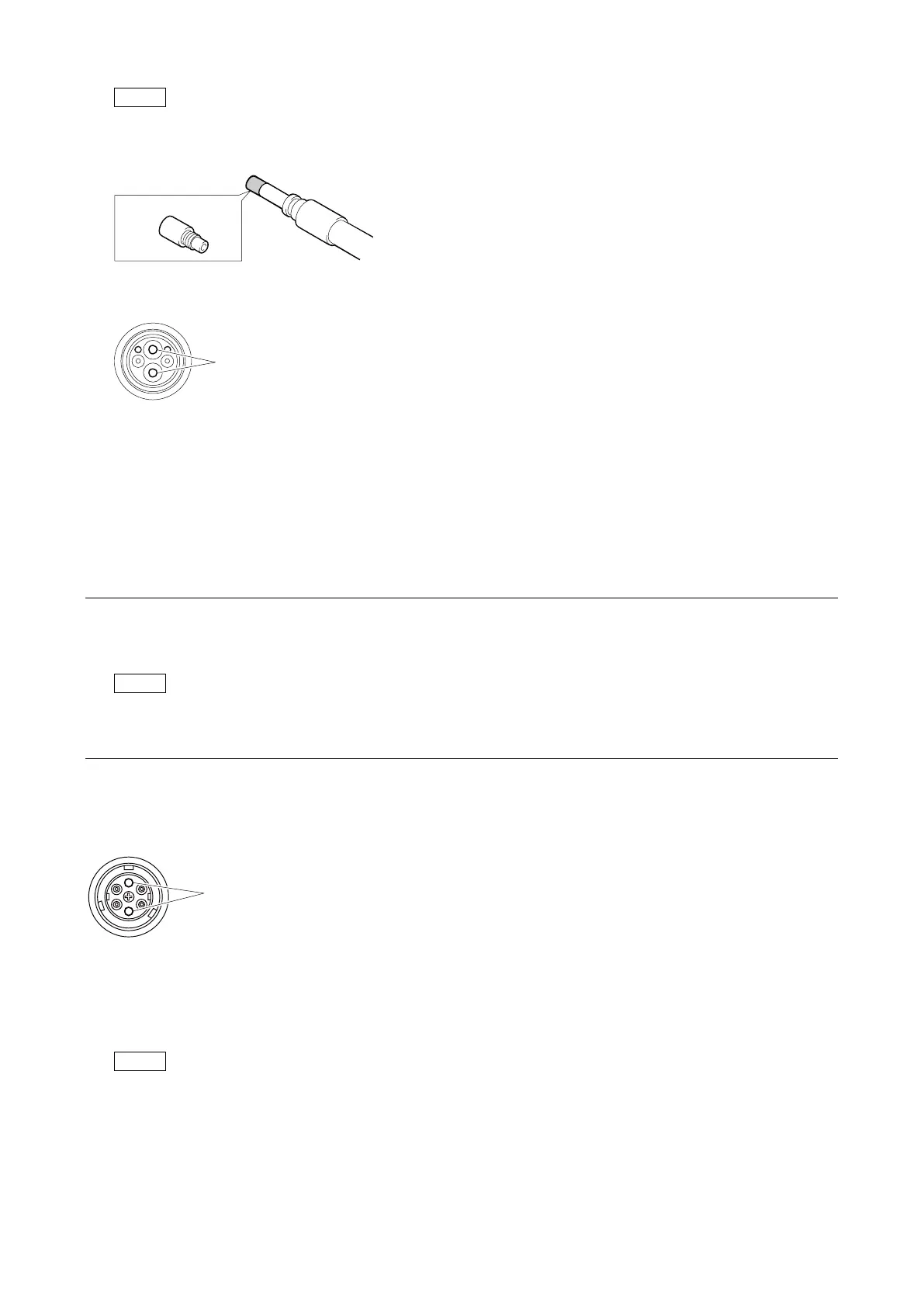

The alignment sleeve can be removed/reinstalled with the sleeve itself attached to the tip of the remover. Great care should be
taken so as not to lose or damage the alignment sleeve.
Alignment sleeve: Sony Part No.: 9-980-074-01
3. Clean the tip of the optical contacts (white) with a cotton swab moistened with alcohol.
4. Insert the remover with the alignment sleeve attached to its tip, and push it until it clicks.
5. Rotate the remover counterclockwise to install the alignment sleeve, and extract the remover.
1-5-3. When the Optical Connector Cleaner (Commercially Available) is not Available
(Connector of Tajimi Electronics Co., Ltd./Cable)
Clean the connectors of Tajimi Electronics and cables using the following procedure.
Fixtures
• Alcohol (commercially available)
• Cotton swabs (commercially available)
Note
Use a cotton swab whose diameter is about 4 mm. If a cotton swab whose diameter exceeds 5 mm is used, the cotton swab
cannot be inserted into the end of the connector and the tip of the optical contact cannot be cleaned.
Cleaning Procedure
Male connector
Clean the tip of the optical contacts (white) with a cotton swab moistened with alcohol.
Female connector
The optical contacts for female connector are in an unexposed state. In cleaning, it is necessary to be exposed by removing the
adapter in the connector in advance. Proceed as follows.
1. Loosen the adapter pin at the center of the connector counterclockwise with a screwdriver.
Note
If there is no screwdriver, use the plate attached to the connector cap.
To Next Page
