2-5-2. Coaxial Connector Converter (BNC Type)
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the NET-37 board assembly. (Refer to “2-3. NET-37 Board Assembly”.)
3. Remove the VIF-82 board assembly. (Refer to “2-5. VIF-82 Board Assembly”.)
4. Remove the rear connector block. (Refer to steps 1 to 6 in “2-5-1. VIF-82 Board/AT-195 Board”.)
Procedure
1. Release the three coaxial cables from the BNC coaxial fixed washers.
2. Disconnect the three coaxial cables from the coaxial connector converters (BNC type).
Note
• When connecting the coaxial cables, connect connectors correctly.
• At the time of the installation, clamp the coaxial cables with the BNC coaxial fixed washers as shown in the figure.

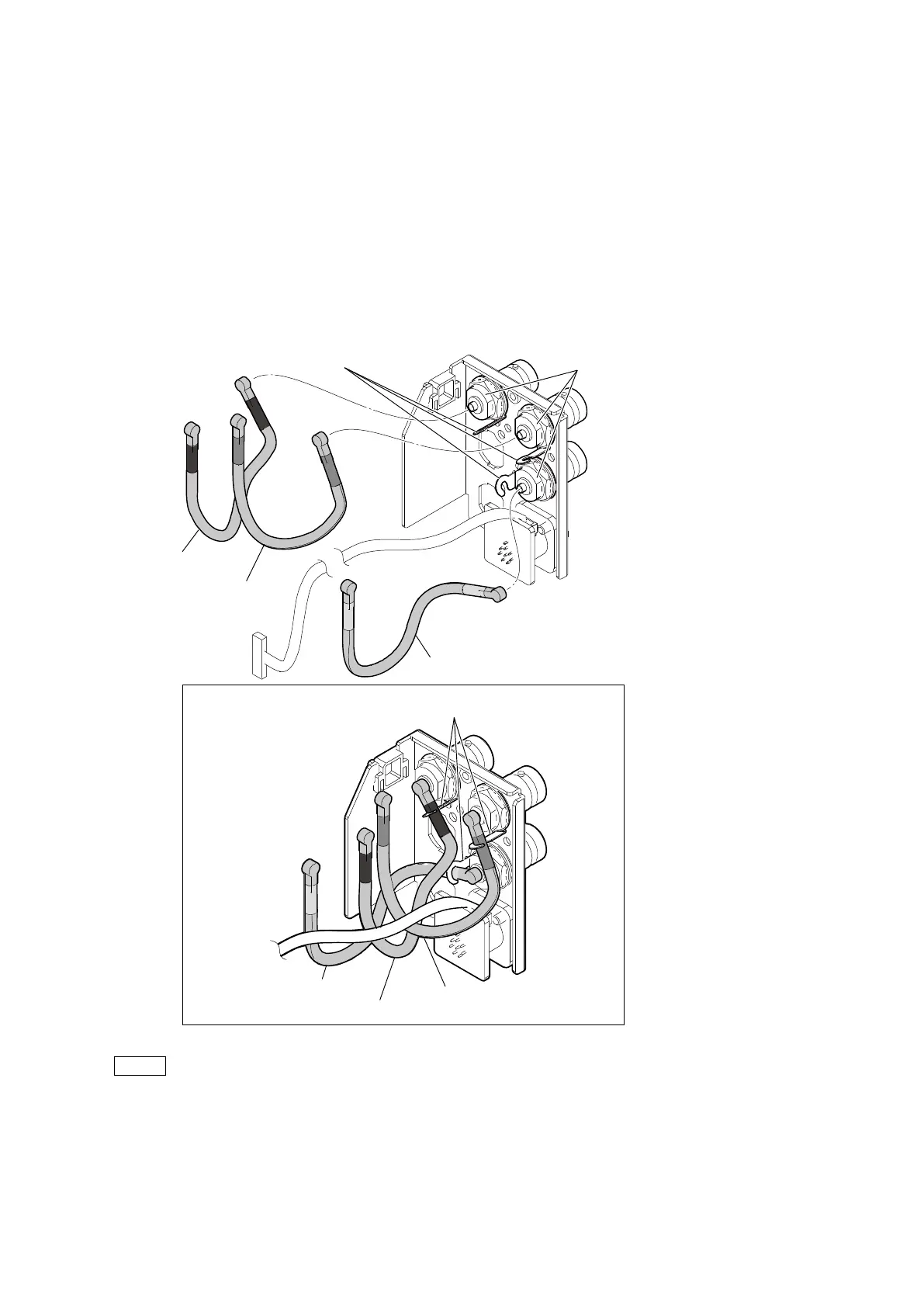

Arrangement of the coaxial cables
Coaxial connector converters (BNC type)
BNC coaxial fixed washers
Coaxial harness (85mm) (green)
Coaxial harness (85mm) (orange)
Coaxial harness
(85mm) (orange)
Coaxial harness
(85mm) (green)
Coaxial harness (60mm) (yellow)
Coaxial harness (60mm) (yellow)
BNC coaxial fixed washers
