45

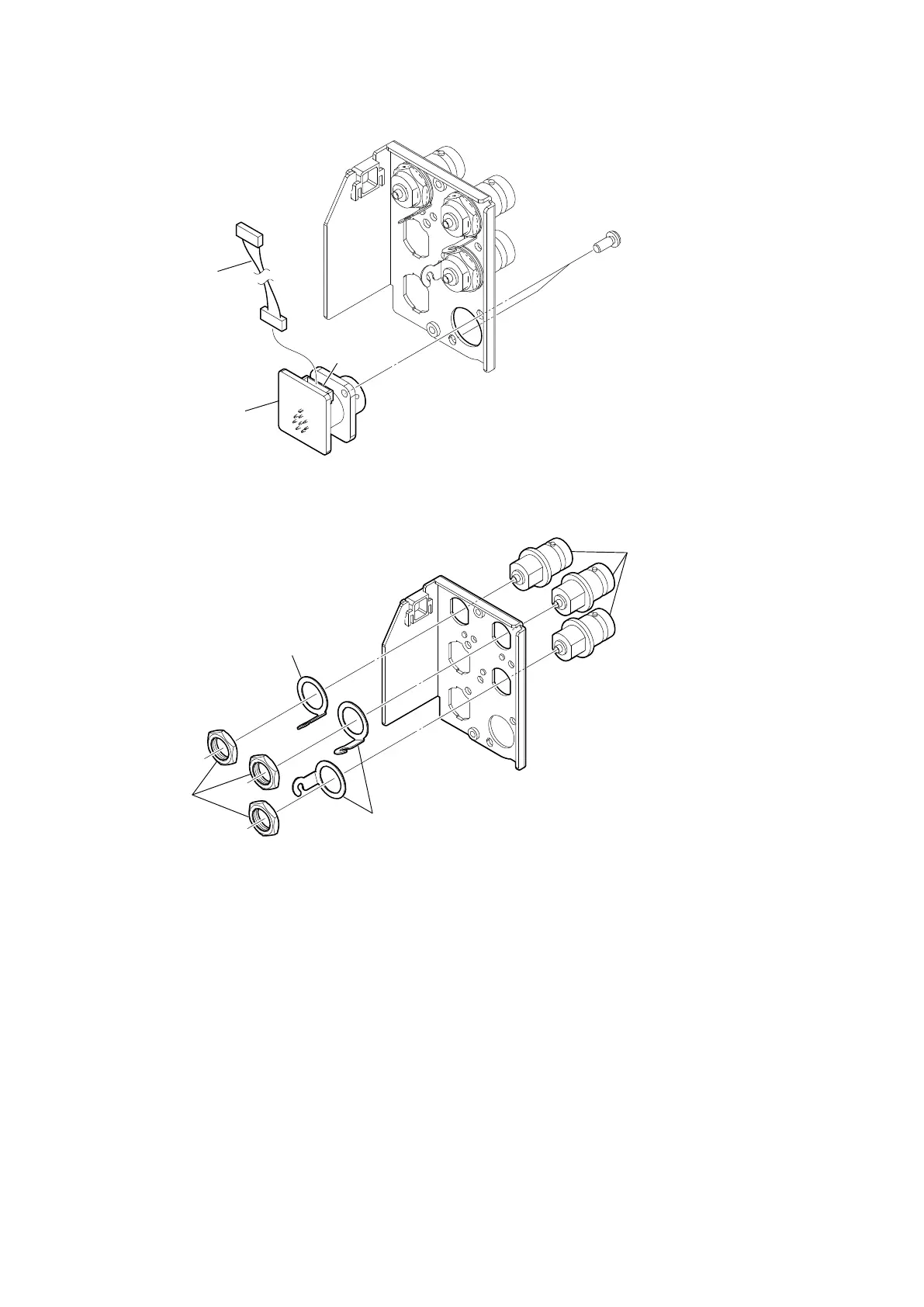

3. Remove the two screws, and then remove the CN-4131 board.
4. Disconnect the harness from the connector (CN001) on the CN-4131 board.
5. Remove the three supplied nuts, and then remove the three BNC coaxial fixed washers and the three BNC coaxial connector
converters (BNC type).
P2.6 x 5
CN-4131 board
CN001
Harness
Supplied nuts
Coaxial connector
converters (BNC type)
BNC coaxial fixed washer
BNC coaxial fixed washers
