2-4-3. LE-437 Board
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the NET-37 board assembly. (Refer to “2-3. NET-37 Board Assembly”.)
3. Remove the front panel assembly. (Refer to “2-4. Front Panel Assembly”.)
Procedure
1. Disconnect the harness from the connector (CN001) on the LE-437 board.
2. Remove the screw, and then remove the LE-437 board.
3. Install the removed parts by reversing the steps of removal.

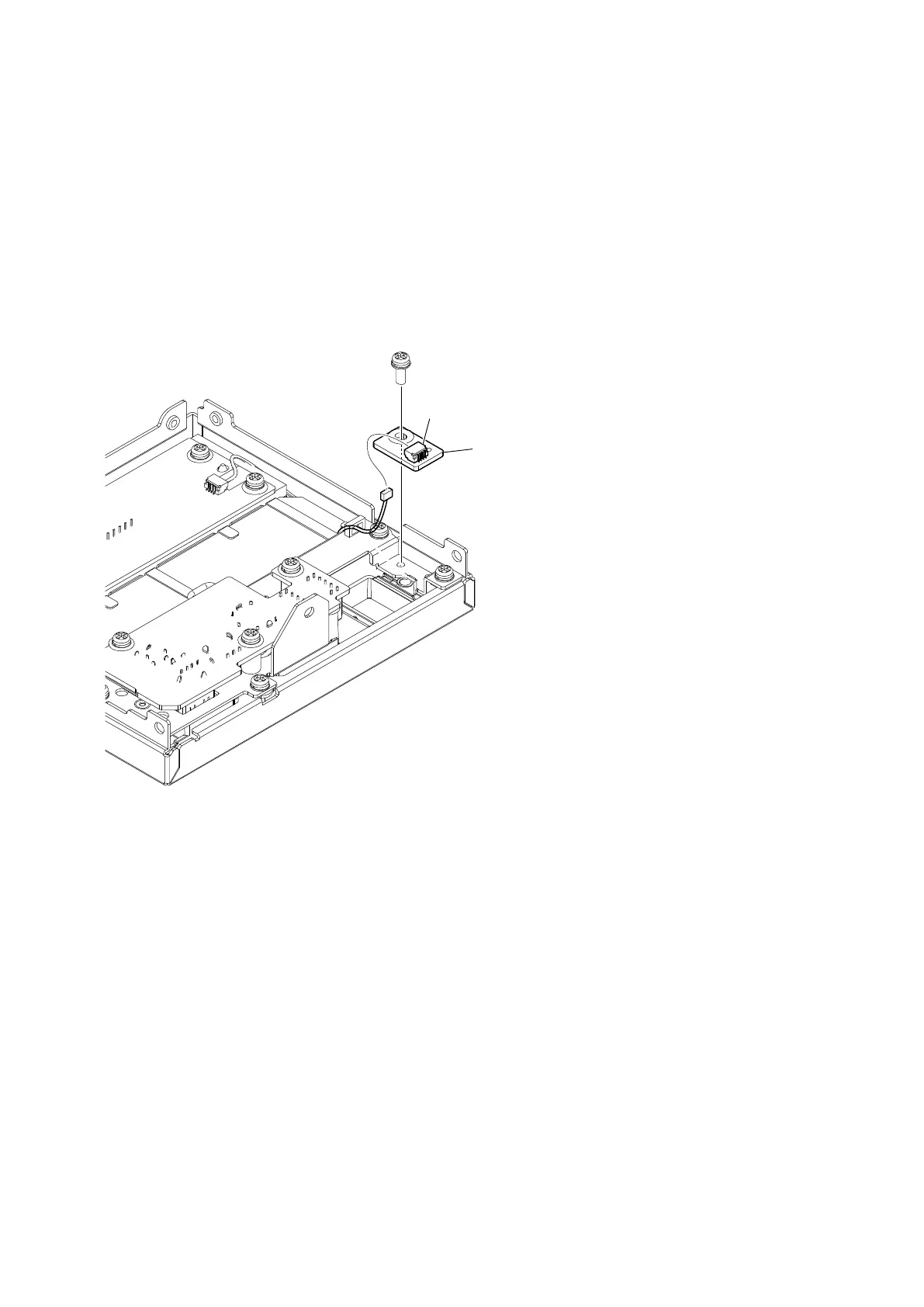

LE-437 board
CN001
PSW
3 x 8
