33

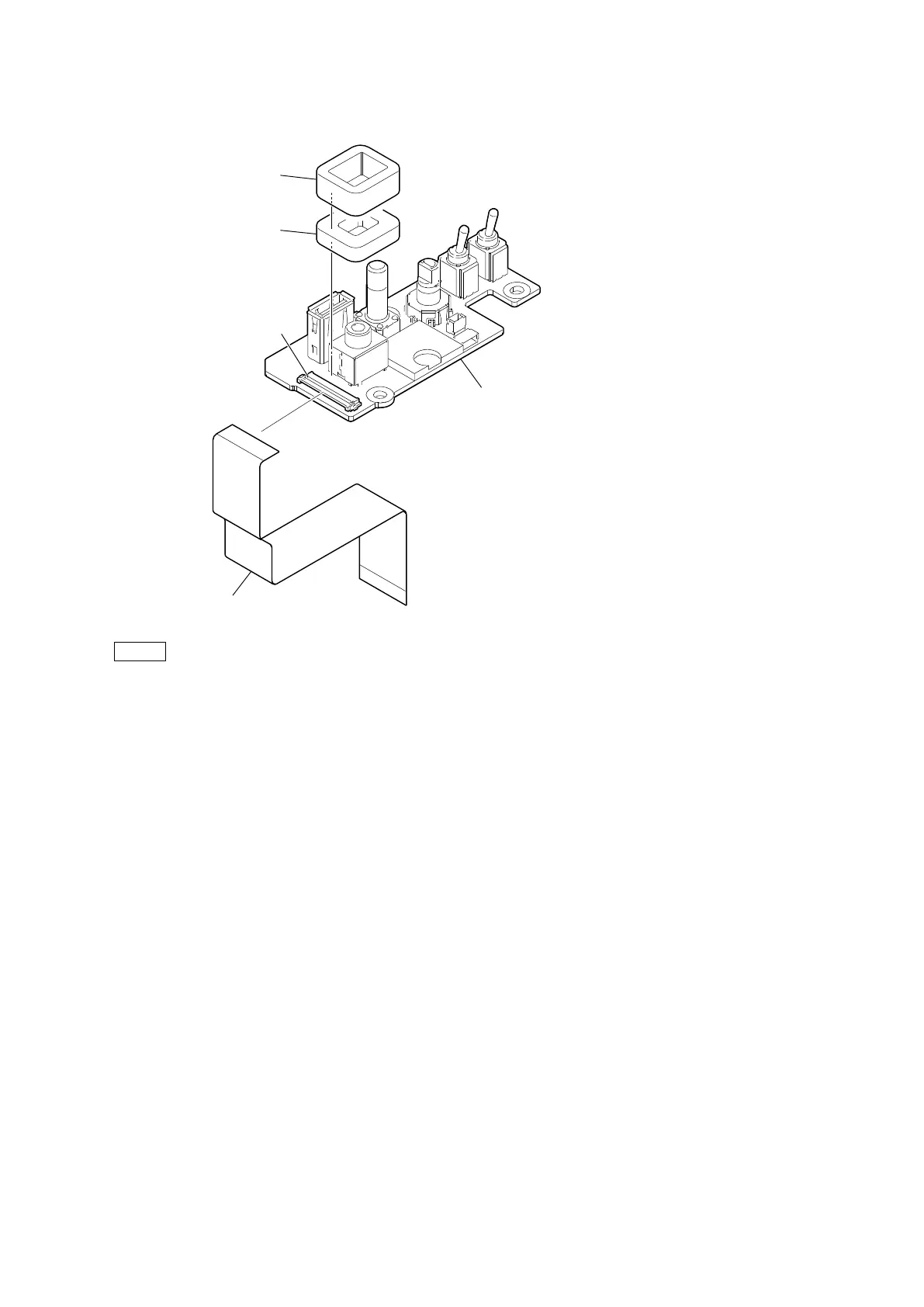

4. Disconnect the flexible flat cable from the connector (CN001) on the FP-322 board.
5. Remove the EP cushion (L) and the EP cushion (B).
Note
At the time of the installation, attach the soft EP cushion (B), and then attach the EP cushion (L).
6. Install the removed parts by reversing the steps of removal.
Flexible flat cable
FP-322 board
EP cushion (B)
*soft
EP cushion (L)
CN001
