2-3-1. NET-37 Board
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the NET-37 board assembly. (Refer to “2-3. NET-37 Board Assembly”.)
Procedure

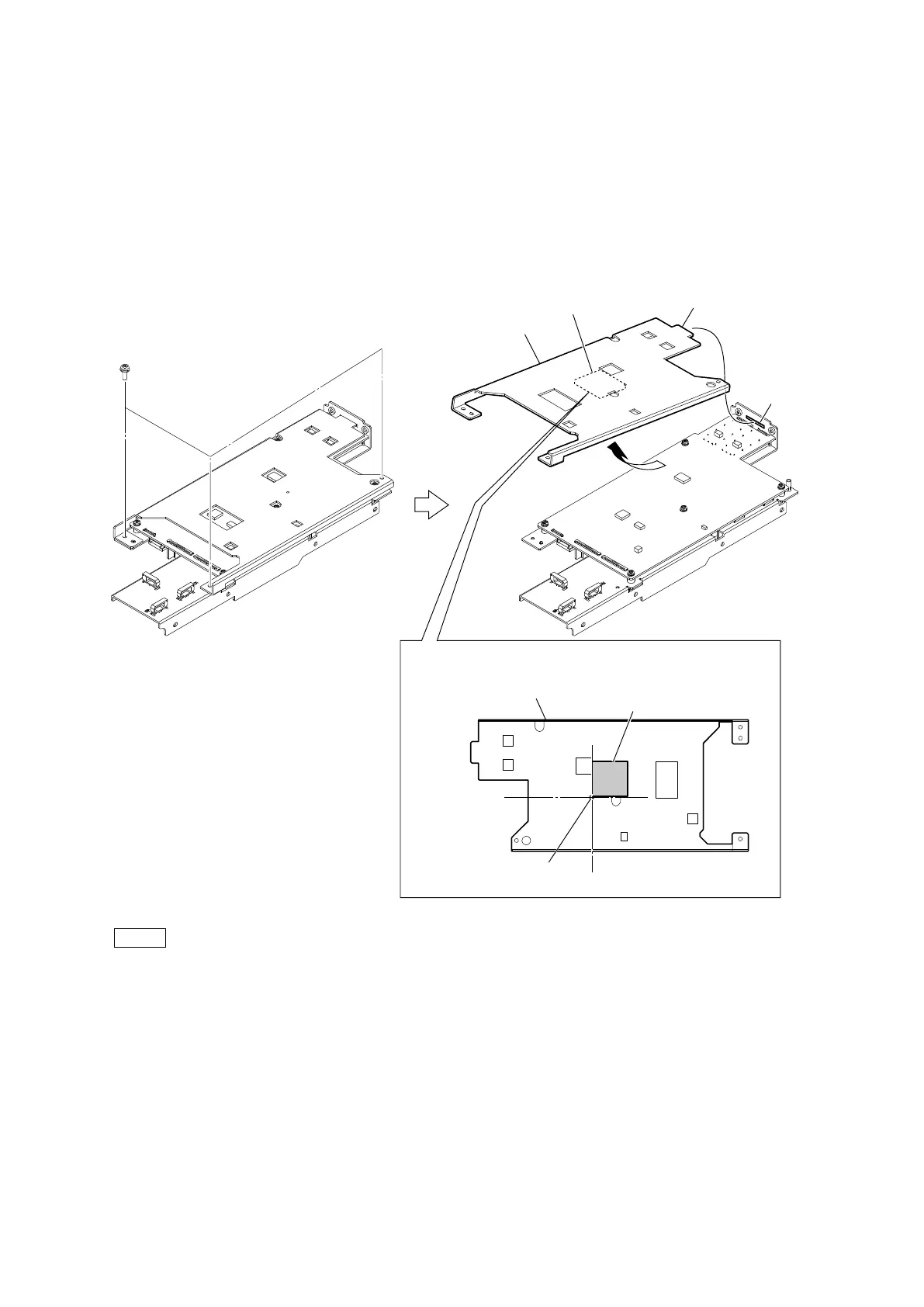

1. Remove the three screws.
2. Remove the NET heat sink B in the direction of the arrow [A].
Note
• If the radiation sheet (DPRH) is removed, attach it at the position as shown in the figure.
• At the time of the installation, tighten the screws in the following sequence: (a), (b), (c).
PSW
3 x 8
(a)
(c)
(b)
[A]
NET
heat sink B
Radiation sheet (DPRH)
Attaching position of the radiation sheet (DPRH)
Projection
NET heat sink B
Hole
Radiation sheet (DPRH)
Hole
