29

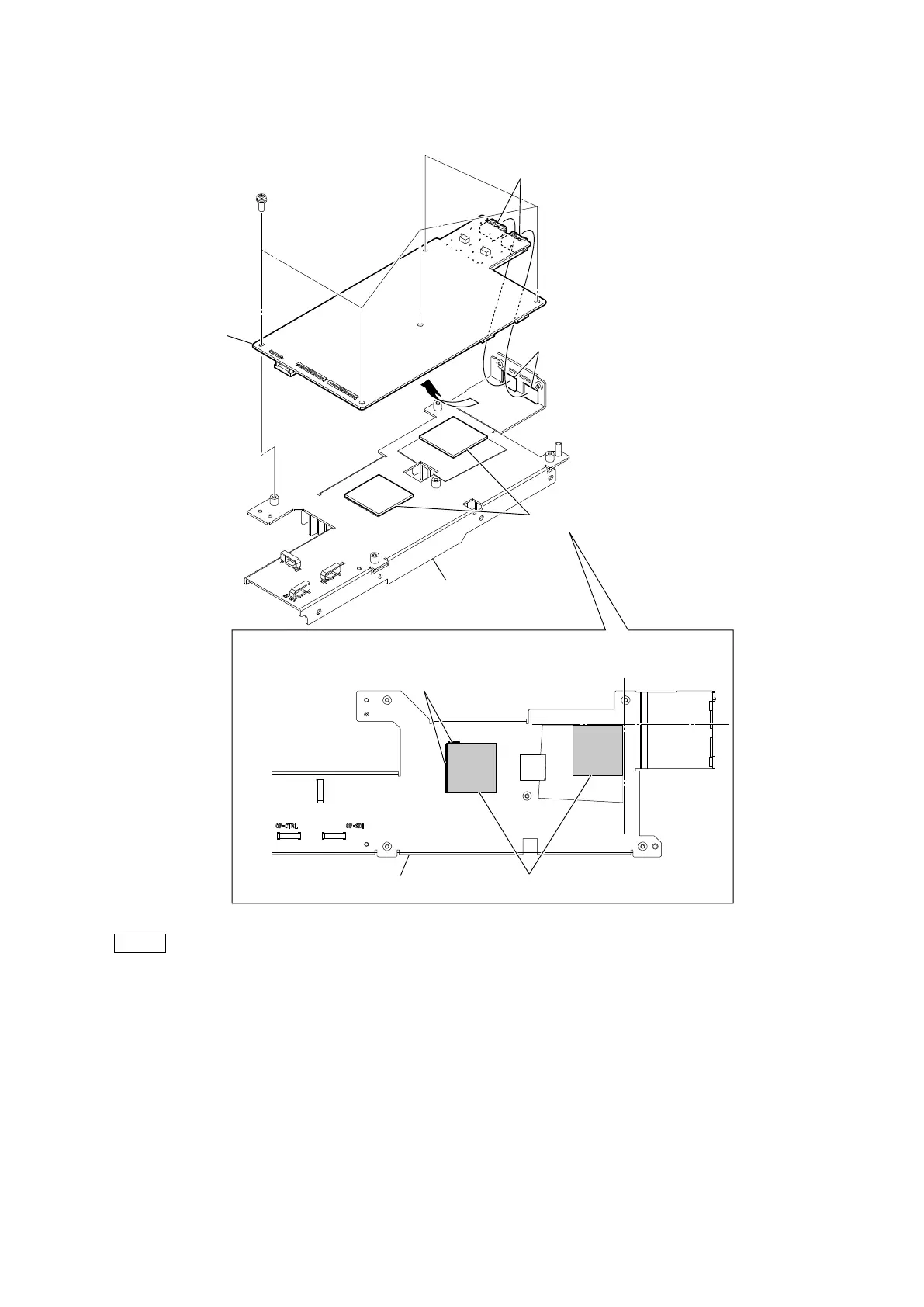

3. Remove the five screws.
4. Remove the NET-37 board in the direction of the arrow [A].
Note
• If the radiation sheet (2 (35 x 35)) is removed, attach it at the position as shown in the figure.
• At the time of the installation, insert the two connectors into the two holes.
• At the time of the installation, tighten the screws in the following sequence: (a), (b), others.
5. Install the removed parts by reversing the steps of removal.
PSW
3 x 8
(a)
(b)
Holes
Connectors
NET-37 board
NET heat sink A
Radiation sheet (2(35 x 35))
Radiation sheet (2(35 x 35))
Scribe lines
NET heat sink A
[A]
Attaching position of the radiation sheet (2(35 x 35))
