Sony HDCE-TX30 - VIF-82 Board Assembly

38
2-5. VIF-82 Board Assembly
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the NET-37 board assembly. (Refer to “2-3. NET-37 Board Assembly”.)
Procedure
1. Disconnect the optical fiber cables from the optical module (SFP+).
Note
• Do not pull the optical fiber cables strongly or bend them so as not to damage them.
• When connecting the optical fiber cables, refer to the number indicated on the board.

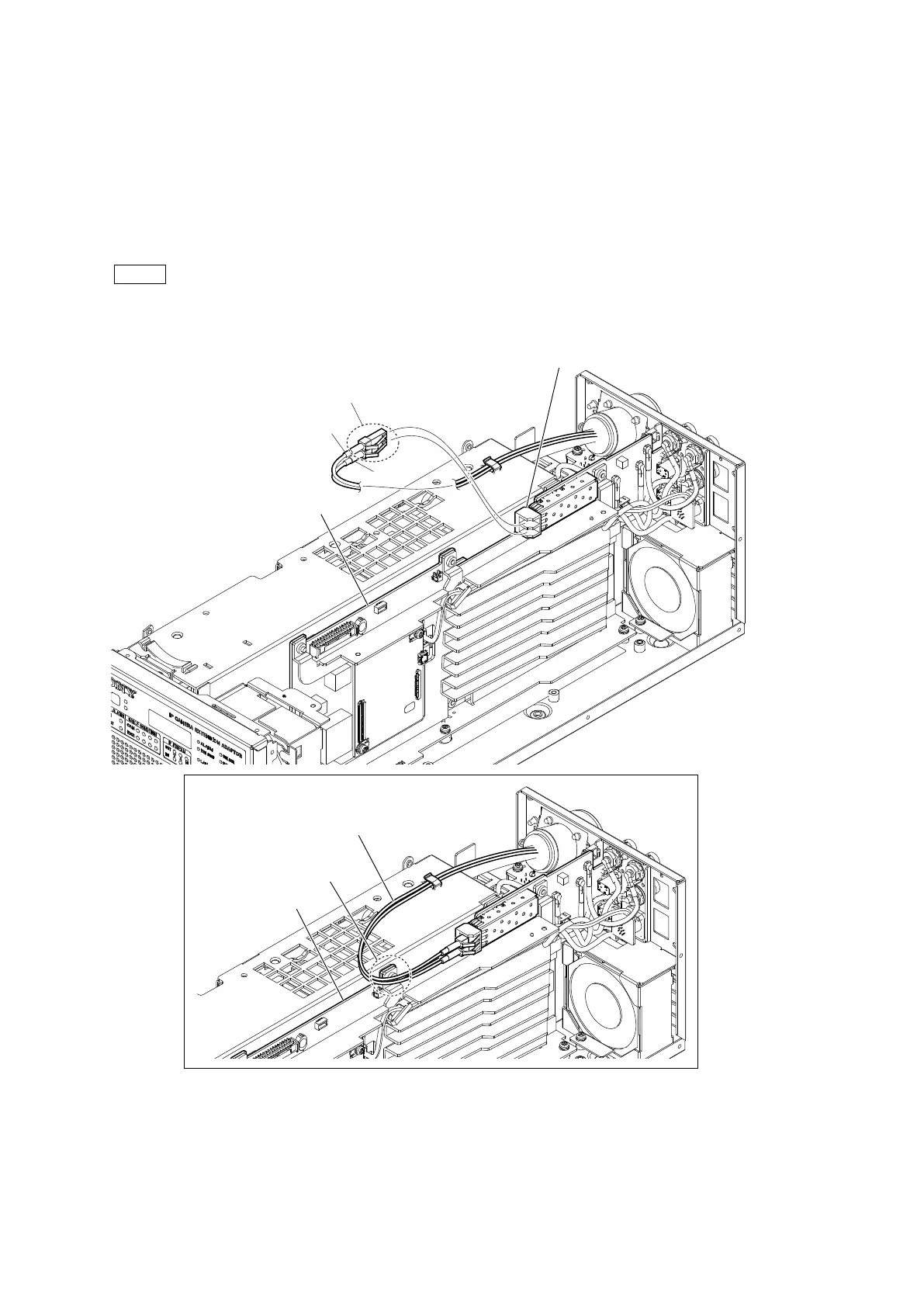

• At the time of the installation, pass the assembly at the front side of the convex portion of the VIF-82 board as shown below.
Optical fiber cable
[1]
[2]
Optical fiber cable
Arrangement of the optical fiber cables
Optical module (SFP+)
VIF-82 board
Convex portion
VIF-82 board
* Optical fiber cable [2]: OUT side
Optical fiber cable [1]: IN side
