2-4-2. FP-322 Board
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
2. Remove the NET-37 board assembly. (Refer to “2-3. NET-37 Board Assembly”.)
3. Remove the front panel assembly. (Refer to “2-4. Front Panel Assembly”.)
Procedure

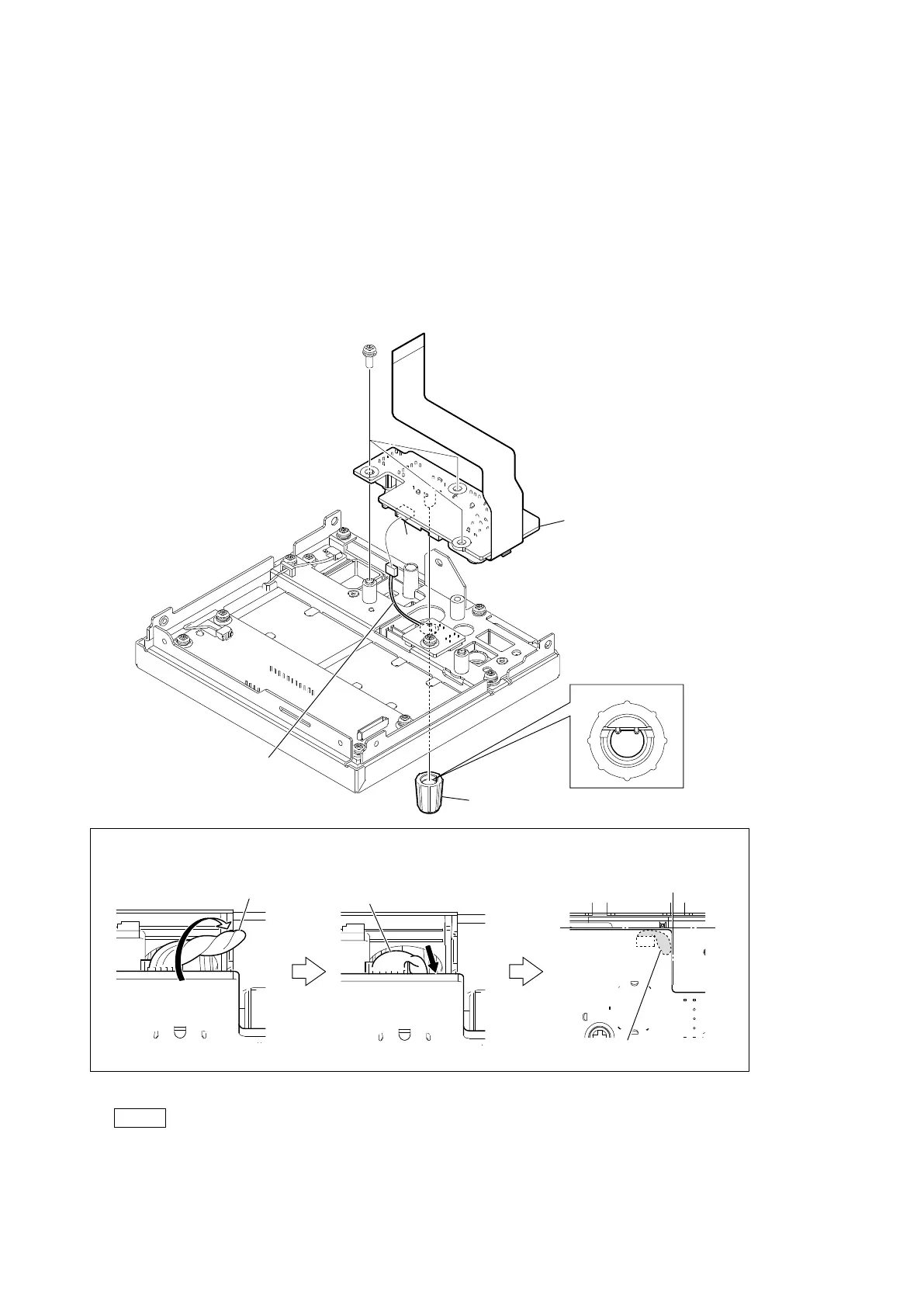

1. Remove the rotary encoder knob.
2. Remove the three screws, and then remove the FP-322 board.
3. Disconnect the harness from the connector (CN004) on the FP-322 board.
Note
At the time of the installation, arrange the harness as shown in the figure.
PSW
3 x 8
Harness
Harness
Harness
FP-322 board
CN004
Rotary encoder knob
Twist the harness twice.
Check that the harness is placed
within the board.
Arrangement of the harness
Push the harness into the space between
the board and the front panel.
D cut
Harness
To Next Page
