Sony HDCE-TX30 - NET-37 Board

83

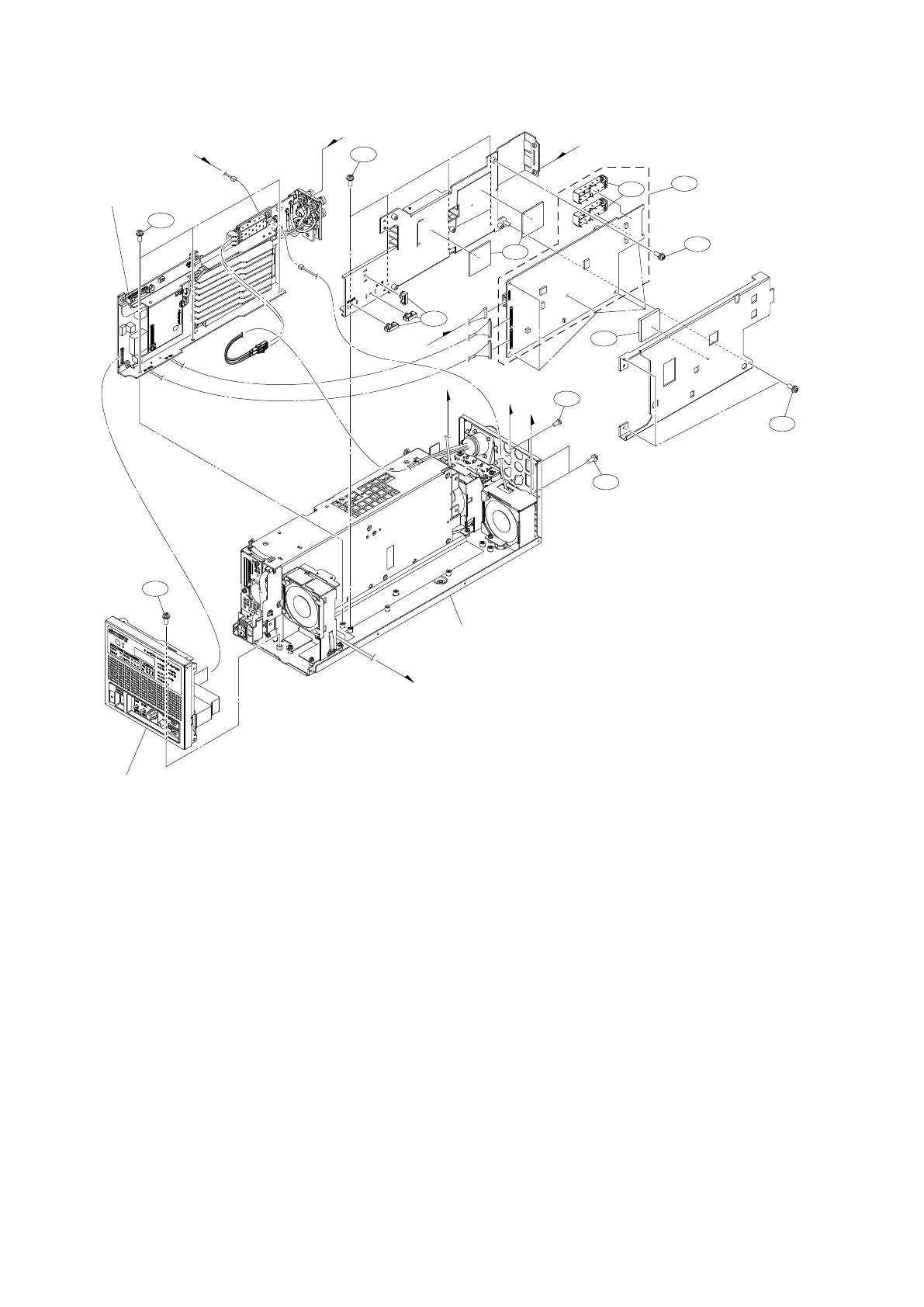

NET-37 Board
No. Part No. SP Description
101 A-5022-883-A s NET-37C COMPL
102 4-098-033-01 s SADDLE WIRE (C)
103 4-382-854-01 s SCREW (M3X8), P, SW (+)
104 4-559-446-02 s SCREW, +P2.6X5 NEW TRUSTER
105 4-581-951-01 s CAGE, SINGLE PORT
106 4-587-426-01 s SHEET (2 (35X35)), RADIATION
107 5-001-322-01 s SHEET (DPRH), RADIATION
b
a
d
d
c
c
a
b
Refer to “DC Fans”
Refer to “VIF-82 Board”
Refer to “Front Panel”
103
107
103
102
101
103
103
103
103
104
106
105
