Sony HDCE-TX30 - Chassis

87

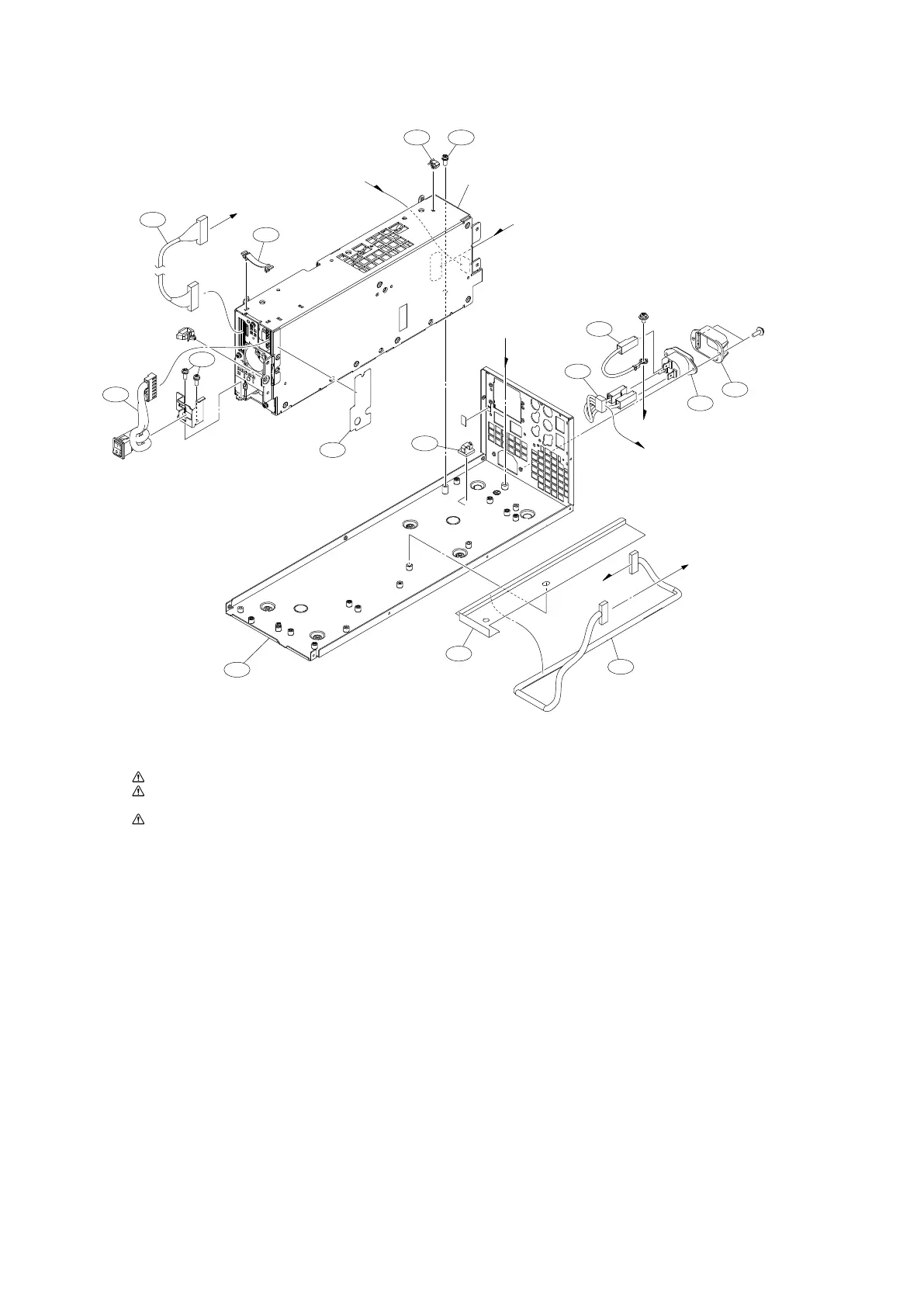

Chassis
No. Part No. SP Description
501 1-007-501-11 s HARNESS, SUB (NET POWER)
502 1-842-404-11 s AC INLET (SCREW) 3P FASTEN
503 1-972-256-12 s HARNESS, SUB (POWER SW)
504 1-972-258-13 s HARNESS, SUB (AC IN)
505 1-972-259-12 s HARNESS, SUB (EARTH)
506 1-972-261-11 s HARNESS, SUB (VIF POWER)
507 2-990-241-02 s HOLDER (A), PLUG
508 3-955-834-01 s CLAMP
509 4-077-459-01 s CLAMP, FLAT (30)
510 4-198-668-01 s SADDLE, LOCKING WIRE
511 4-382-854-01 s SCREW (M3X8), P, SW (+)
512 5-010-132-01 s MAIN CHASSIS
513 5-012-834-02 s SHEET, POWER DUCT
514 5-012-835-01 s SHEET, POWER HARNESS
7-682-949-01 s SCREW +PSW 3X10
7-682-961-01 s SCREW +PSW 4X8
b
a
b
c
a
To VIF-82 board
To NET-37 board
c
Refer to “Power Block”
508 511
506
509
513
510
512
505
504
502
501
514
507
503
511
PSW3 x 10
PSW4 x 8
!
!
!
