Sony HDCE-TX30 - NET-37 Board Assembly

25
2-3. NET-37 Board Assembly
Preparation
1. Remove the top cover. (Refer to “2-2. Top Cover”.)
Procedure
1. Release the cables from the three cable clamps and the four locking edge saddles.
2. Disconnect the fine-wire coaxial cable (blue) from the connector (CN0104) on the NET-37 board.
3. Disconnect the two fine-wire coaxial cables and the four harnesses from the connectors (CN001, CN301, CN307, CN402,
CN404, CN601) on the VIF-82 board.
Note
At the time of the installation, arrange the cables as shown in the figure.

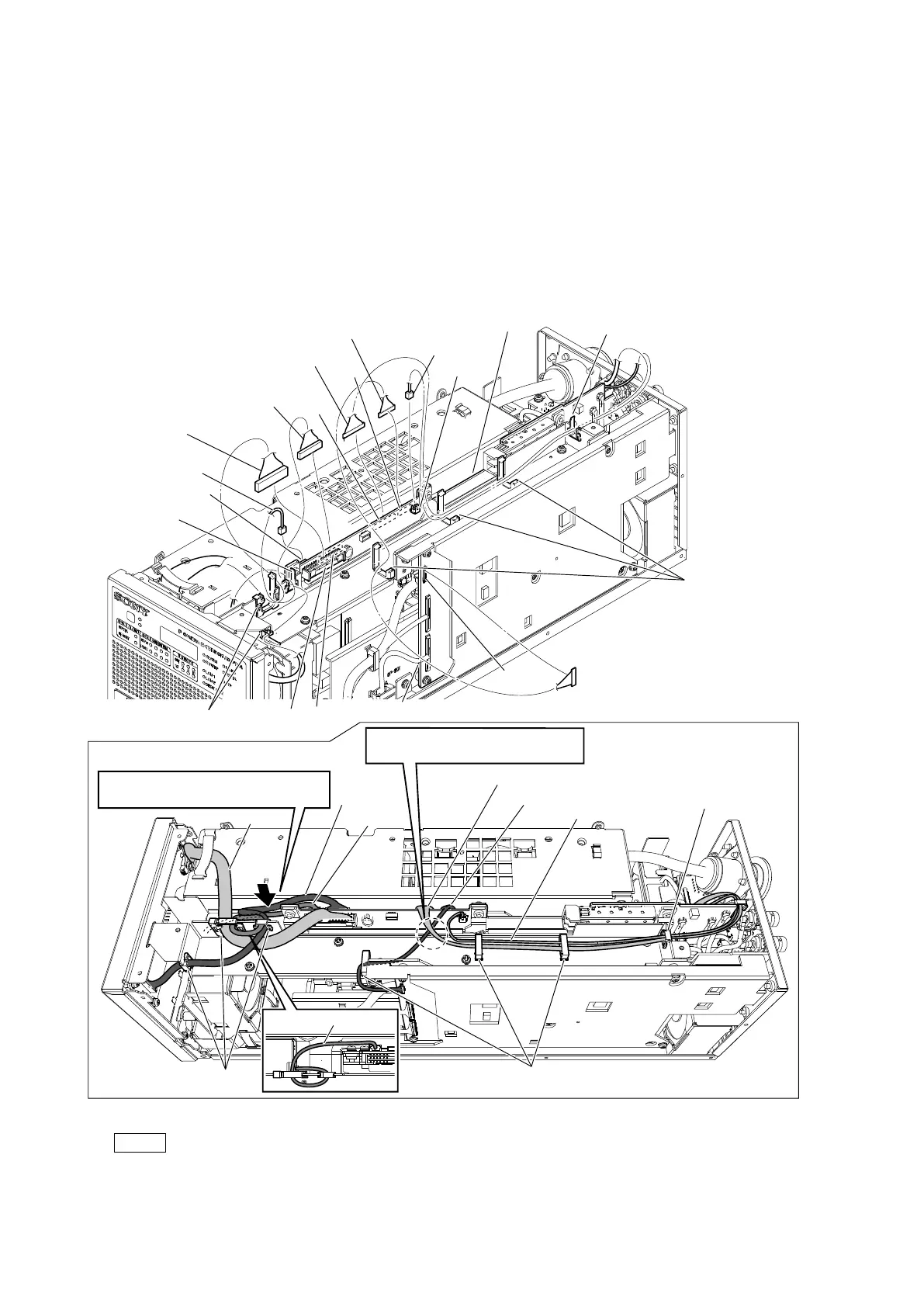

Arrangement of the cables
VIF-82 board
NET-37 board
CN001
CN402
CN0104
CN301
CN601
CN307
CN404
Harness
Harness
Fine-wire coaxial cable (light blue)
Fine-wire coaxial cable (blue)
Harness (A)
Harness (B)
Locking edge saddle
Locking edge saddle
Locking edge
saddle
Locking edge saddle
Locking edge saddles
Cable clamps
Fine-wire coaxial cable (blue)
Fine-wire coaxial cable (light blue)
Harness (B)
Harness
Harness
Harness (A)
Push the harnesses (A) and (B) into the space
between the board and the power supply block.
Pass the fine-wire coaxial cable (blue) under
the fine-wire coaxial cable (light blue).
Harness (B)
Cable clamps
