26
4. Release the two fine-wire coaxial cables and the harness from the cable clamps.
5. Disconnect the two fine-wire coaxial cables and the harness from the connectors (CN0101, C0102, CN0103) on the NET-37
board.
Note
• At the time of the installation, connect the fine-wire coaxial cable at the front side of the unit to the connector CN0101 and
connect the fine-wire coaxial cable at the rear side of the unit to the connector CN0102.

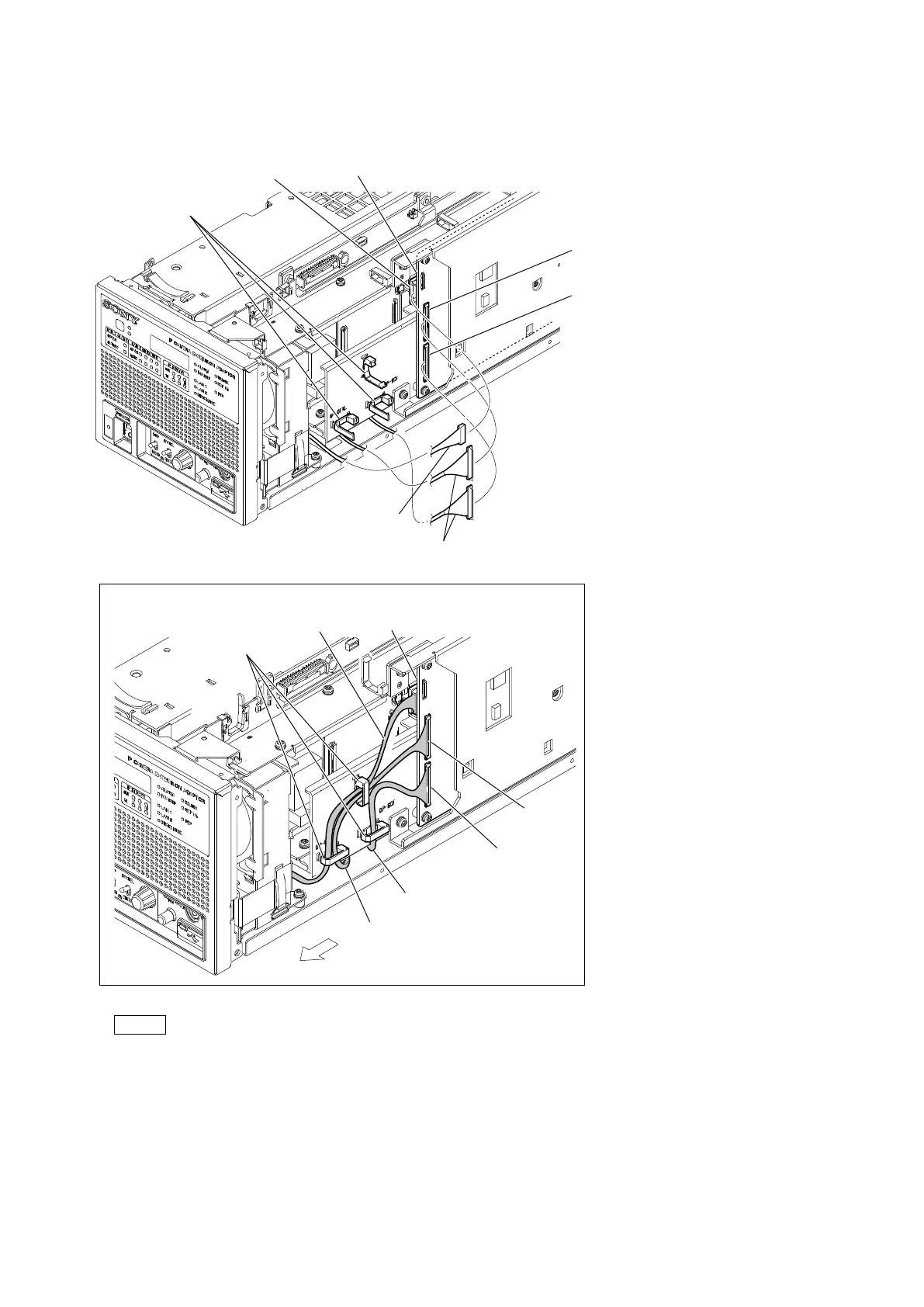

• At the time of the installation, arrange the cables as shown in the figure.
CN0103
CN0101
CN0102
CN0101
CN0102
NET
-37 board
NET
-37 board
Fine-wire coaxial cable (60pin)
(rear side of the unit)
Fine-wire coaxial cable (60pin)
(front side of the unit)
Cable clamps
Cable clamps
Harness
Harness
Fine-wire coaxial cables
Arrangement of the cables
Front side
To Next Page
