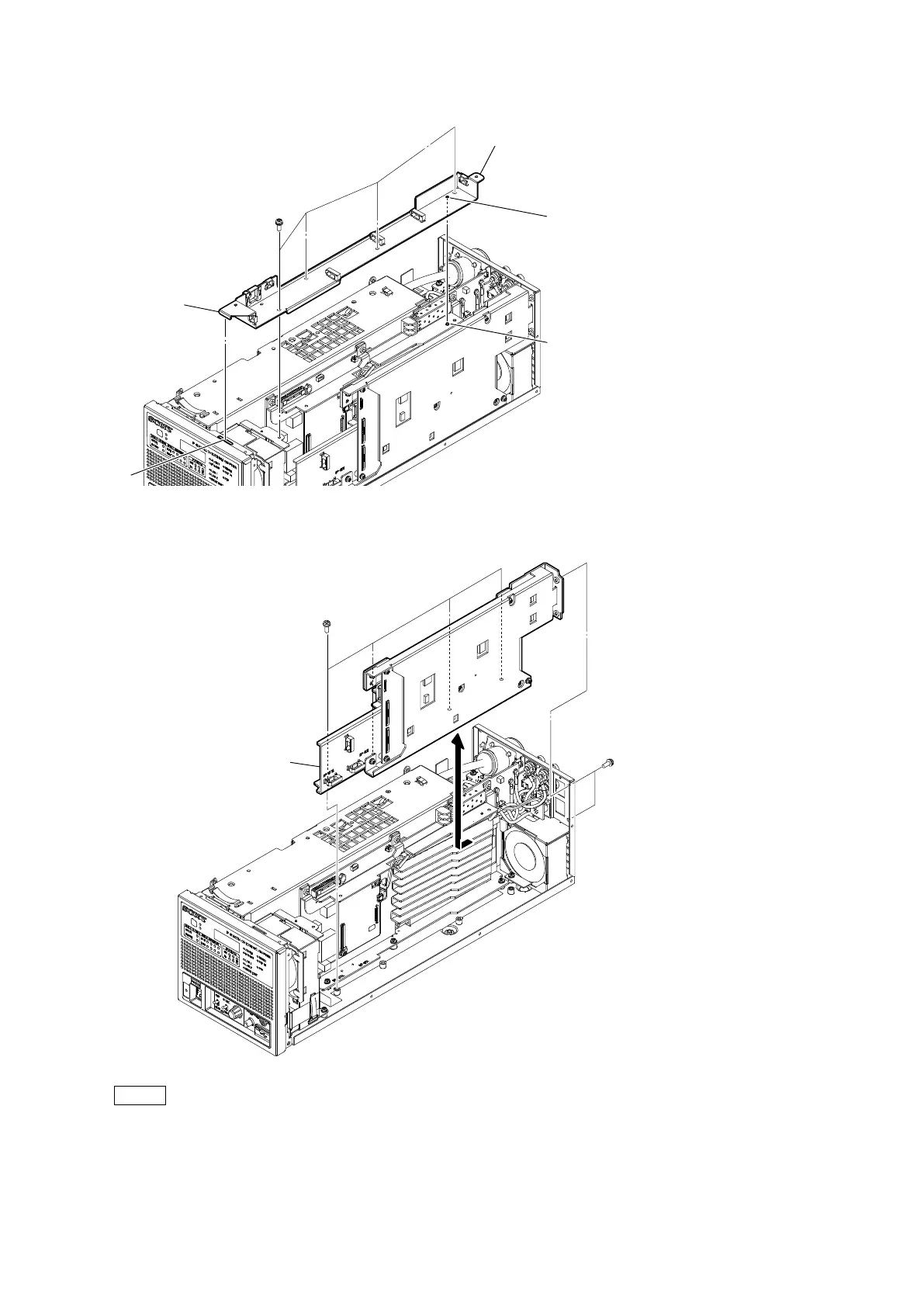

6. Remove the four screws, and then remove the top chassis.
7. Remove the six screws, and then remove the NET-37 board assembly in the direction of the arrow.
Note
At the time of the installation, tighten the screws in the following sequence: (a), (b), (c), (d).
8. Install the removed parts by reversing the steps of removal.
PSW
3 x 8
Top chassis
Boss
Projection
Hole
Hole
PSW
3 x 8
(b)
(c)
(d)
(d)
(a)
PSW
3 x 8
NET-37 board assembly
