Sony HDCE-TX30 - When the Optical Connector Cleaner (Commercially Available) Is Not Available (Connector); Service Tools;Measuring Equipment List; Service Fixtures

14
1-5-4. When the Optical Connector Cleaner (Commercially Available) is not Available
(Connector)
Fixtures
• Alcohol (commercially available)
• Cotton swabs (commercially available)
Note
Use a cotton swab whose diameter is about 4 mm. If a cotton swab whose diameter exceeds 5 mm is used, the cotton swab
cannot be inserted into the end of the connector and the tip of the optical contact cannot be cleaned.

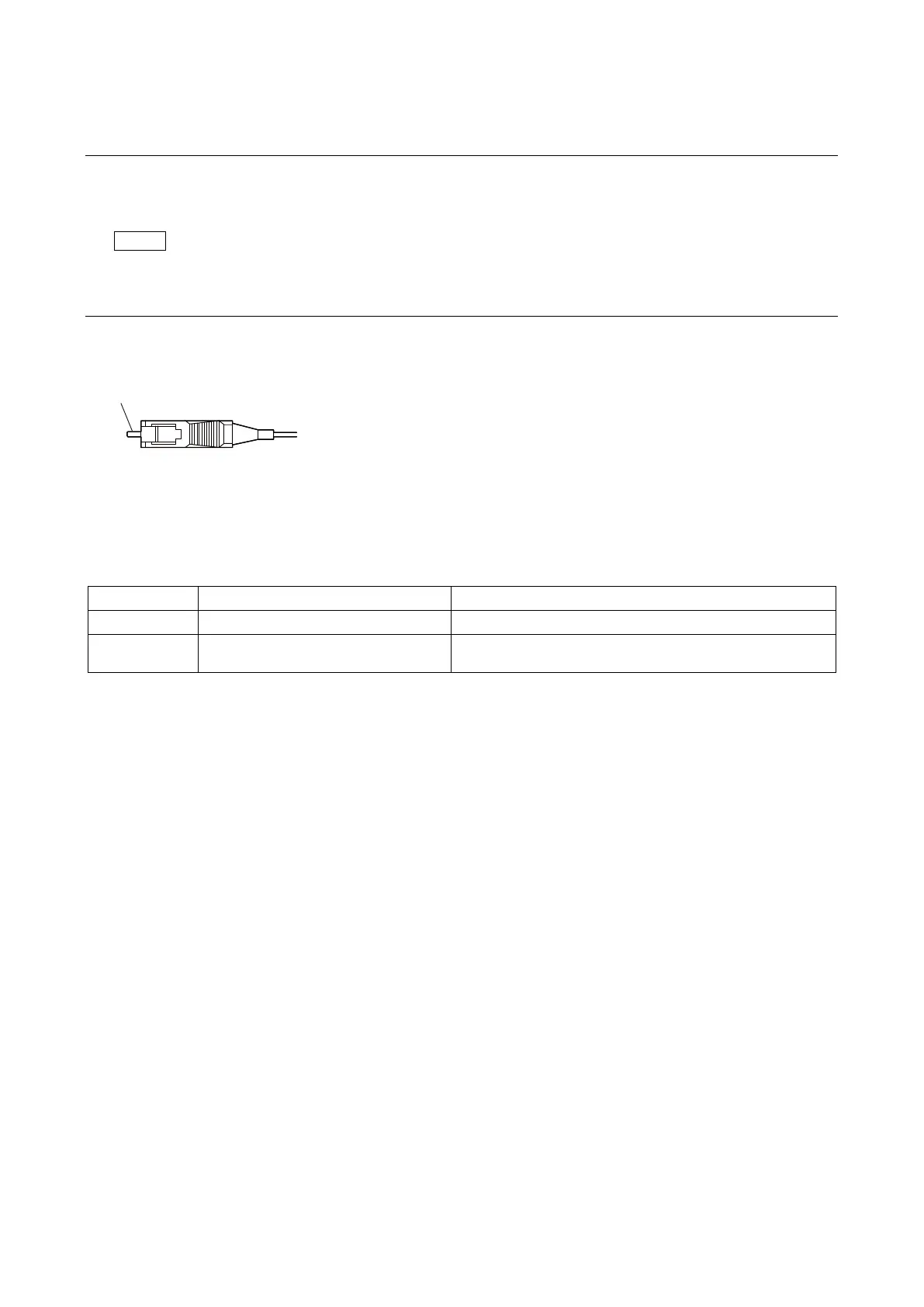

Connector
Clean the tip of the white optical contacts with a cotton swab moistened with alcohol.
1-6. Service Tools/Measuring Equipment List
1-6-1. Service Fixtures
Part No.
Name
Usage/Note
J-6480-010-A
Alignment sleeve remover HC-001
For female optical connector (LEMO® DCC. 91.312.5LA or equivalent)
—
Cotton swab
Commercially available, for cleaning optical contact block (4 mm or less
in diameter)
Optical contact (white)
