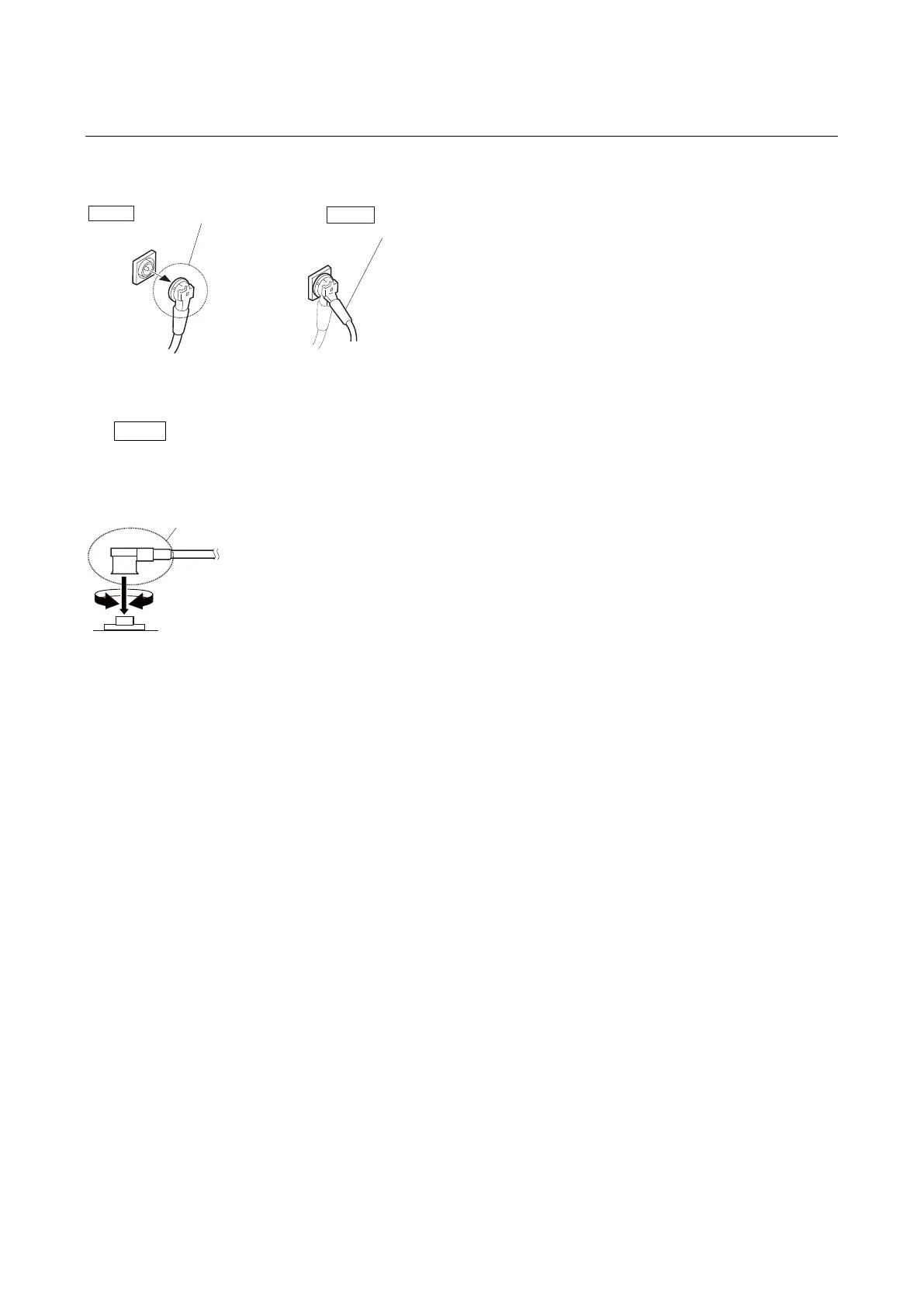

1-8-3. Connecting/Disconnecting Coaxial Cable
Type A
Disconnecting
1. Hold the plug of coaxial cable.
2. Pull out the coaxial cable in the direction of the arrow.
Note
Be sure to hold the plug when disconnecting the coaxial cable. Do not pull the cable.
Connecting
1. Hold the plug of coaxial cable.
2. Connect the coaxial cable perpendicularly to the connector. Push the plug into the connector while turning it clockwise and
counterclockwise several times.
Do not attempt to
remove by pulling the cable.
Hold the plug to remove.
Correct
Wrong
Hold the plug to connect
Connecting connector
