Sony HDCE-TX30 - Exploded Views; Cover

82

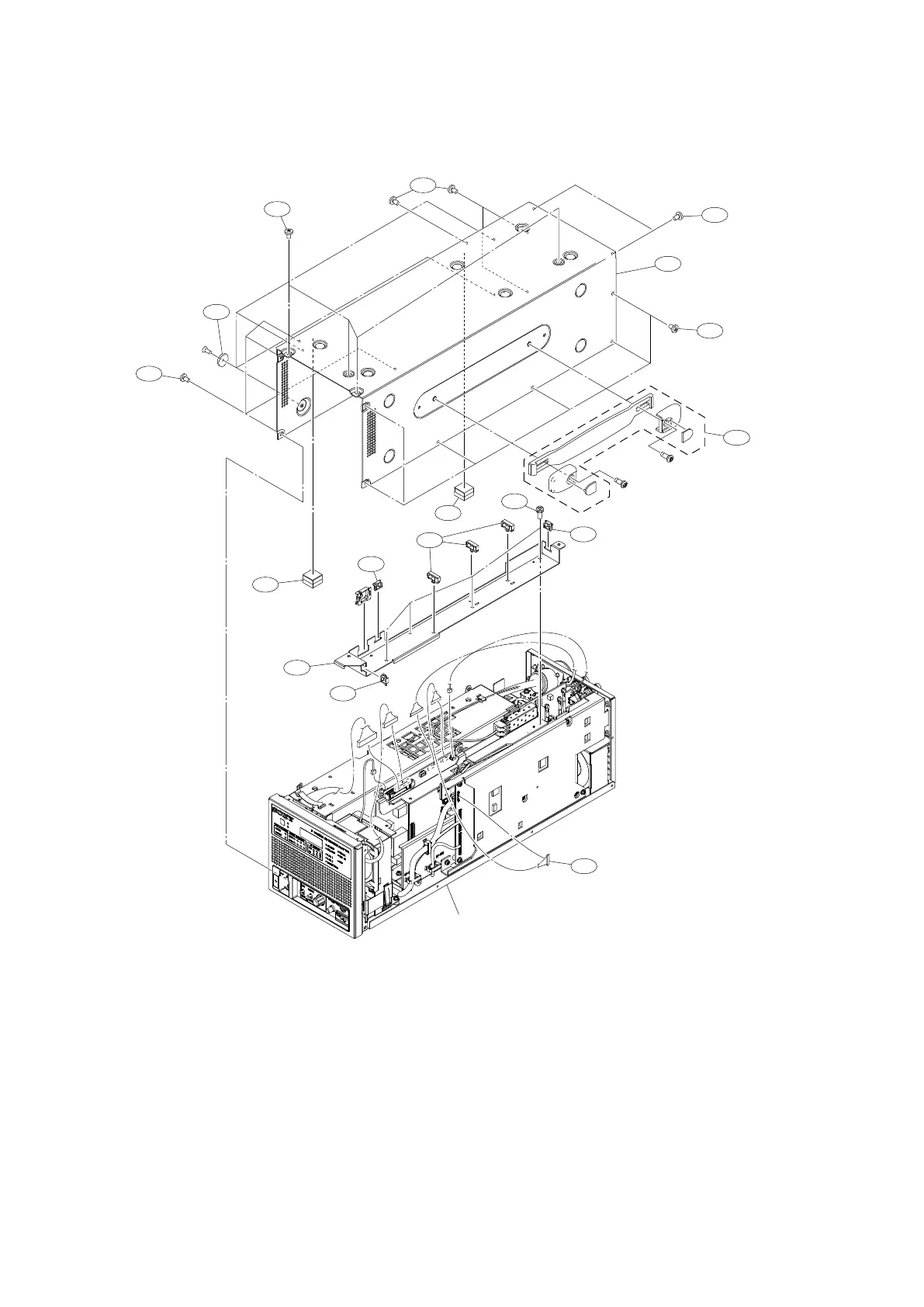

6-2. Exploded Views
Cover
No. Part No. SP Description
1 1-912-393-11 s CONNECTION CABLE WITH COAXIAL
2 2-382-110-01 o LEG
3 3-725-295-21 s SCREW, (+) (B3)
4 3-815-708-01 s HANDLE
5 4-098-033-01 s SADDLE WIRE (C)
6 4-382-854-01 s SCREW (M3X8), P, SW (+)
7 4-641-552-01 o SADDLE, LOCK EDGE
8 5-010-134-01 s TOP COVER
9 5-010-152-01 s CHASSIS TOP
10 5-017-316-01 s POWER CUSHION (T)
7-621-592-00 s SCREW +K 2.6X6
7-682-162-09 s SCREW +P 4X10
Refer to “NET-37 Board”
1
7
9
10
7
7
6
4
3
3
3
3
3
8
2
5
10
P4 x 10
P4 x 10
K2.6 x 6
