49

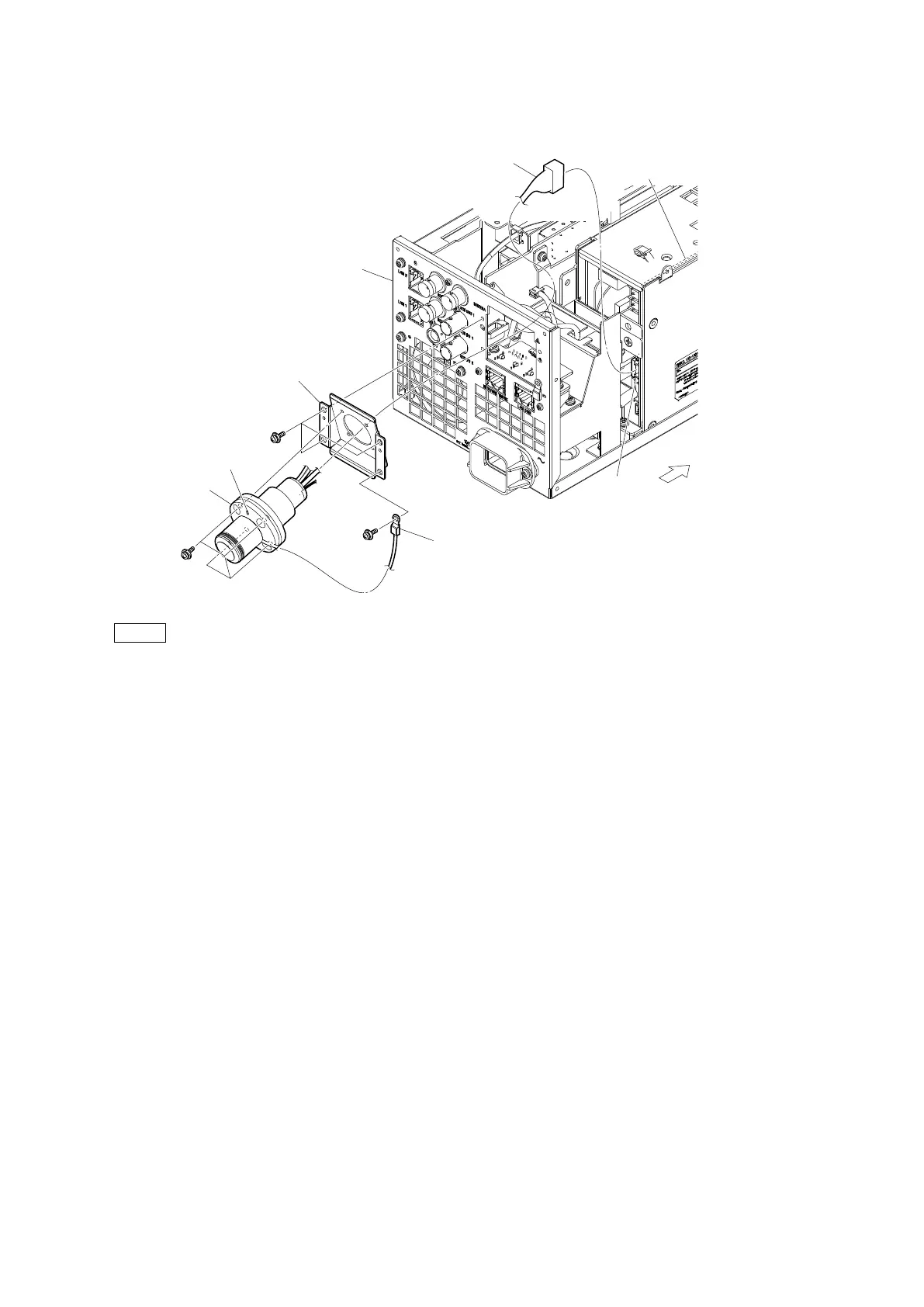

4. Disconnect the harness from the connector (CN5004) on the RE-345 board.
5. Remove the four screws, and then remove the LEMO connector assembly
6. Remove the four screws, and then remove the lug terminal and LEMO CN bracket.
Note
• When attaching the LEMO connector assembly, install it with the red mark up.
• When attaching the LEMO connector assembly, secure the connector assembly temporarily using the four screws, then fully
tighten them.
7. Install the removed parts by reversing the steps of removal.
Front side
PSW
3 x 8
PSW
3 x 8
PSW
3 x 8
LEMO connector
assembly
Lug terminal
Red mark
CN5004
LEMO CN bracket
Harness
Rear panel assembly
RE-345 board
To Next Page
