57

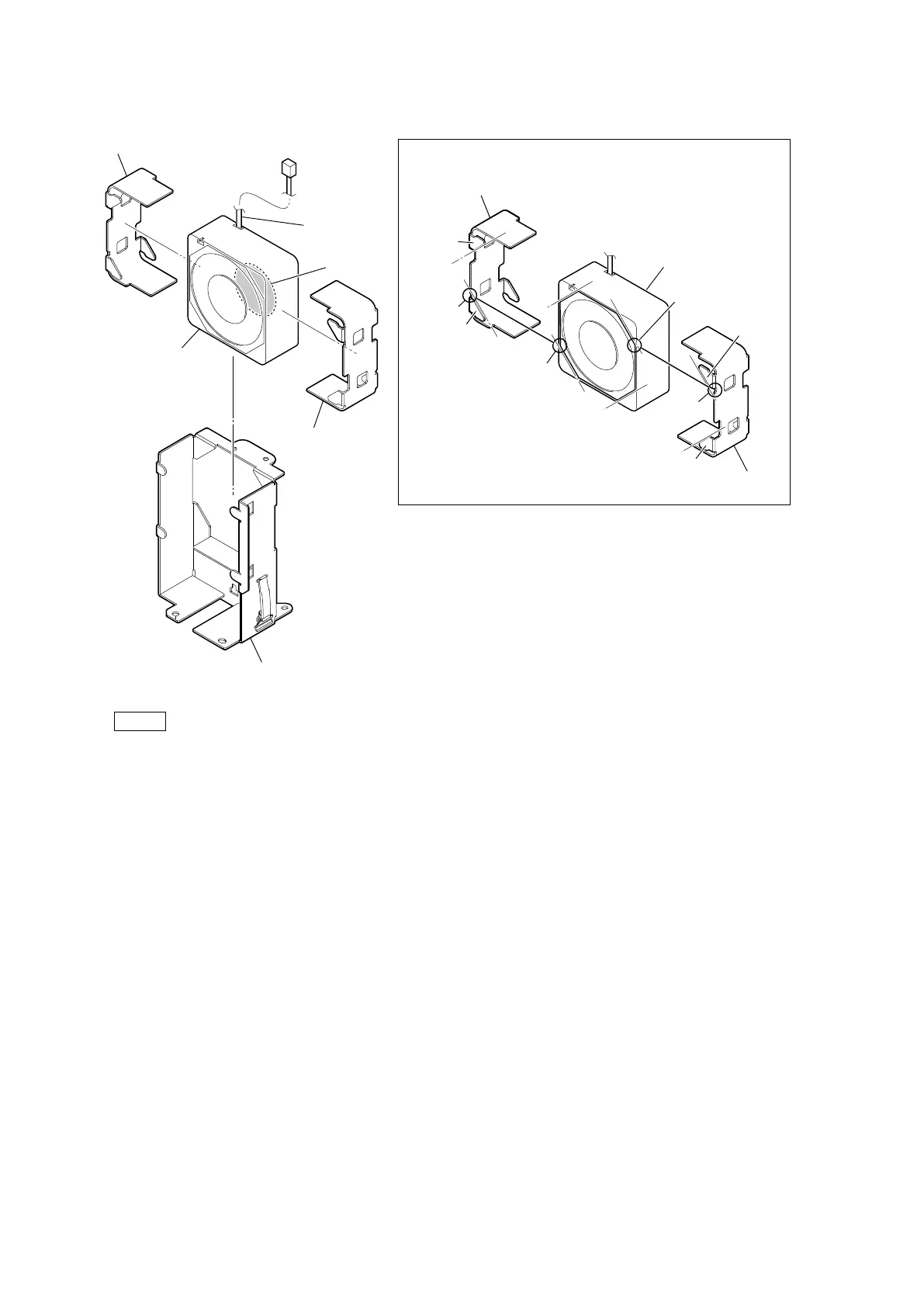

4. Remove the DC fan (60 square) and the fan cushion (60 x 25) together from the F-fan mounting bracket.
5. Remove the two fan cushions (60 x 25) from the DC fan (60 square).
Note
• When attaching the DC fan subassembly, pay attention to the position of label and harness.
• When replacing the DC fan (60 square), attach two new fan cushions (60 x 25) at the positions shown above.
– Align portion A of the fan cushion (60 x 25) with portion B of the DC fan (60 square).
– Align the notch of the fan cushion (60 x 25) with the corner of the DC fan (60 square) shown above.
6. Install the removed parts by reversing the steps of removal.
DC fan (60 square)
DC fan (60 square)
Fan cushion (60 x 25)
F-fan mounting bracket
Fan cushion (60 x 25)
Label
Harness
Notch
Notch
A
B
B
B
B
A
A
A
Square
Square
Fan cushion (60 x 25)
Fan cushion (60 x 25)
Attaching position of the fan cushion (60 x 25)
