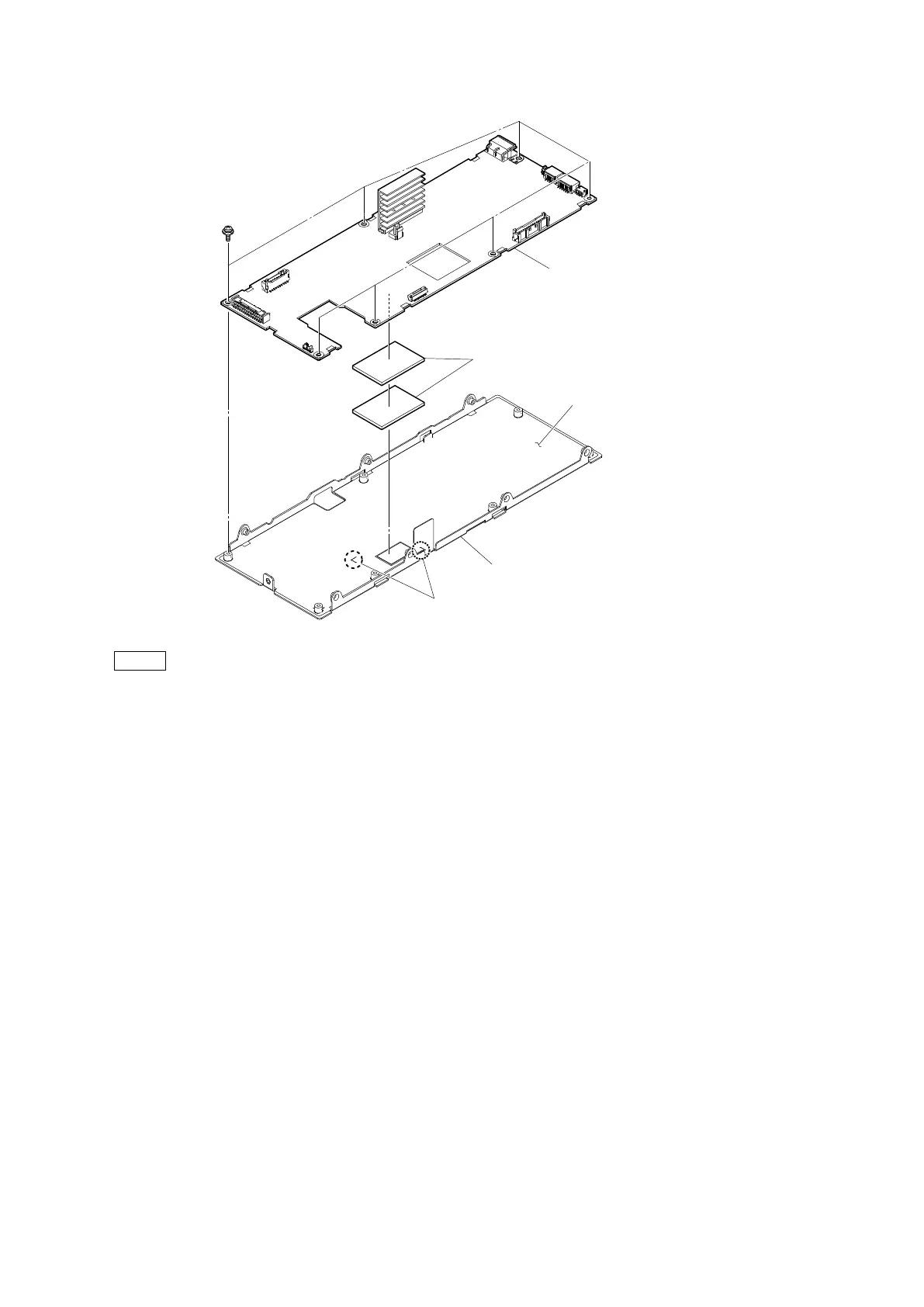

5. Remove the seven screws, and then remove the RE-345 board.
Note
When replacing the radiation sheets (H), attach them on the insulating sheet (PS-B) according to the marks in the top case (PS).
6. Install the removed parts by reversing the steps of removal.
PSW
3 x 6
RE-345 board
T
op case (PS)
Insulating sheet (PS-B)
Radiation sheets (H)
Marks
