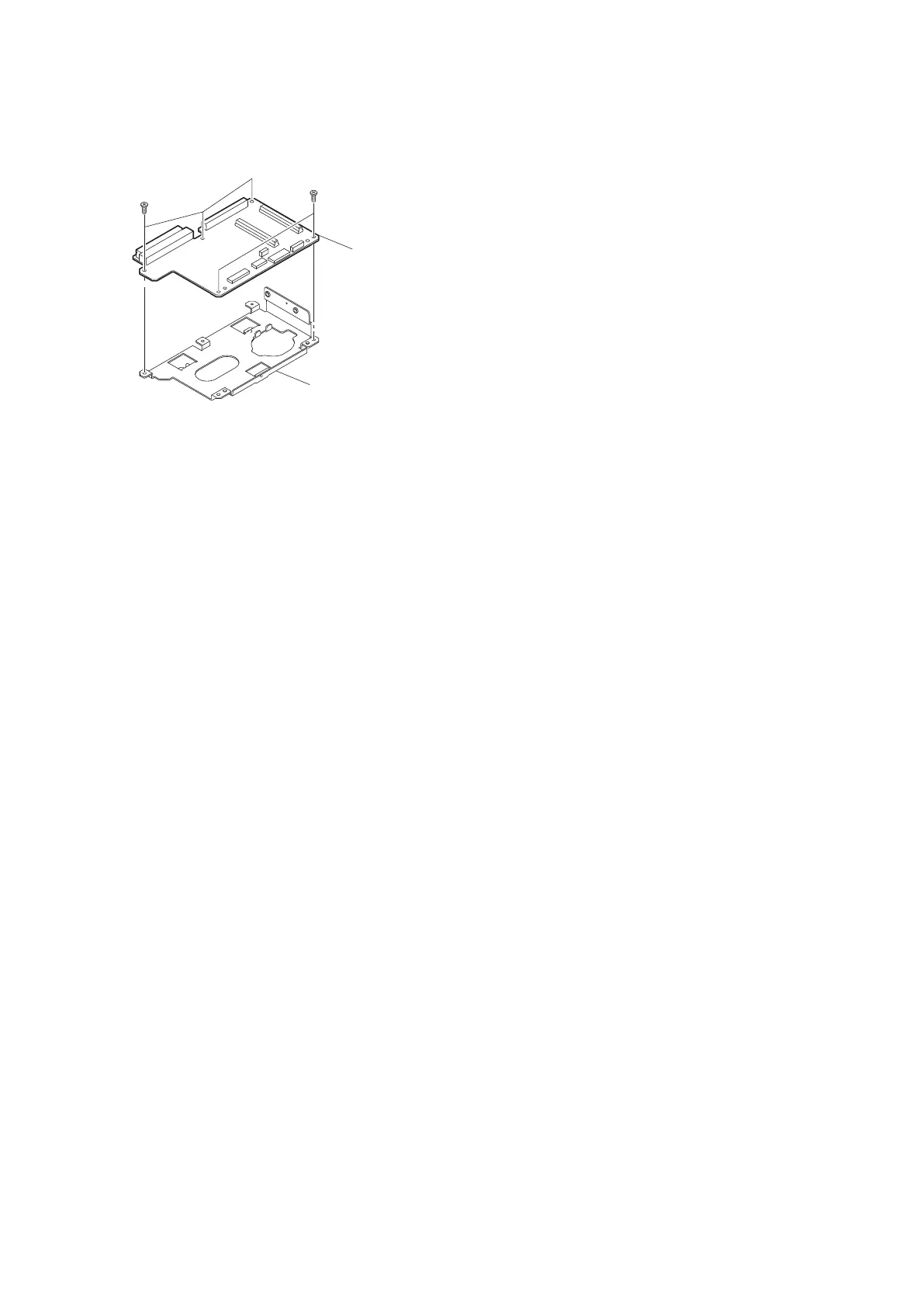

13. Remove the five precision screws (M2 x 4) to detach the AU-342 board from the bracket AU.
Precision screws
(M2 x 4)
Precision screws
(M2 x 4)
AU-342 board
Bracket AU
14. Install the removed parts by reversing steps of removal.
PMW-200/PMW-EX280
2-51
