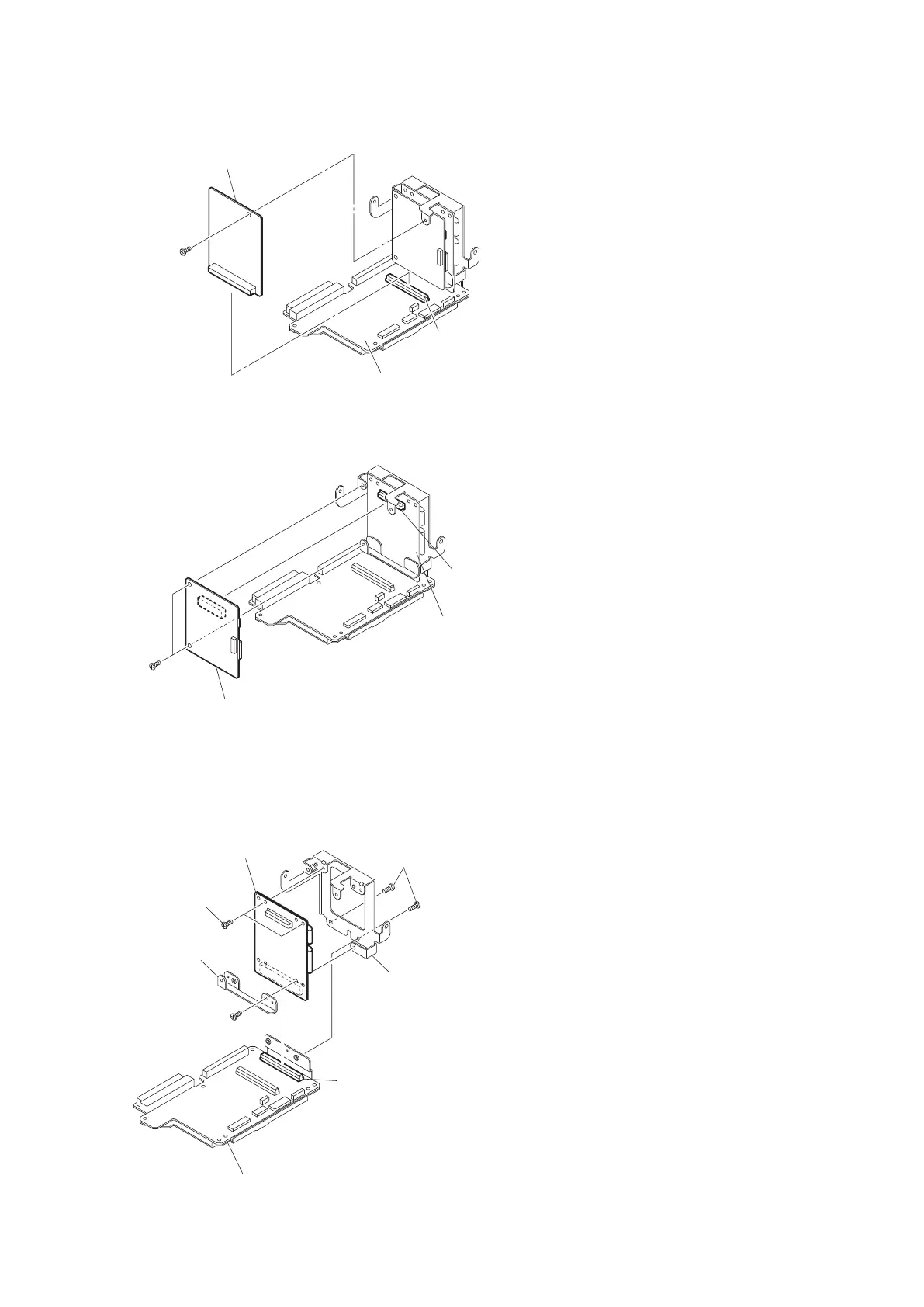

7. Disconnect the RE-300 board from the connector CN801 on the AU-342 board.
Precision screw
(M2 x 4)
CN801
RE-300 board
AU-342 board
8. Remove the two precision screws (M2 x 4).
9. Disconnect the RE-298 board from the connector CN102 on the RE-299 board.
RE-299 board
Precision screws
(M2 x 4)
CN102
RE-298 board
10. Remove the two (a) precision screws (M2 x 4).
11. Disconnect the RE-299 board from the connector CN800 on the AU-342 board.
12. Remove the three (b) precision screws (M2 x 4) to detach the bracket RE and the bracket (RE-299) from the RE-299
board.
(a) Precision screws
(M2 x 4)
(b) Precision screws
(M2 x 4)
(b) Precision screw
(M2 x 4)
CN800
RE-299 board
Bracet RE
Bracket (RE-299)
AU-342 board
