Note: The components identified by mark A\ or dotted line
with mark A\ are critical for safety.
Replace only with part number specified.

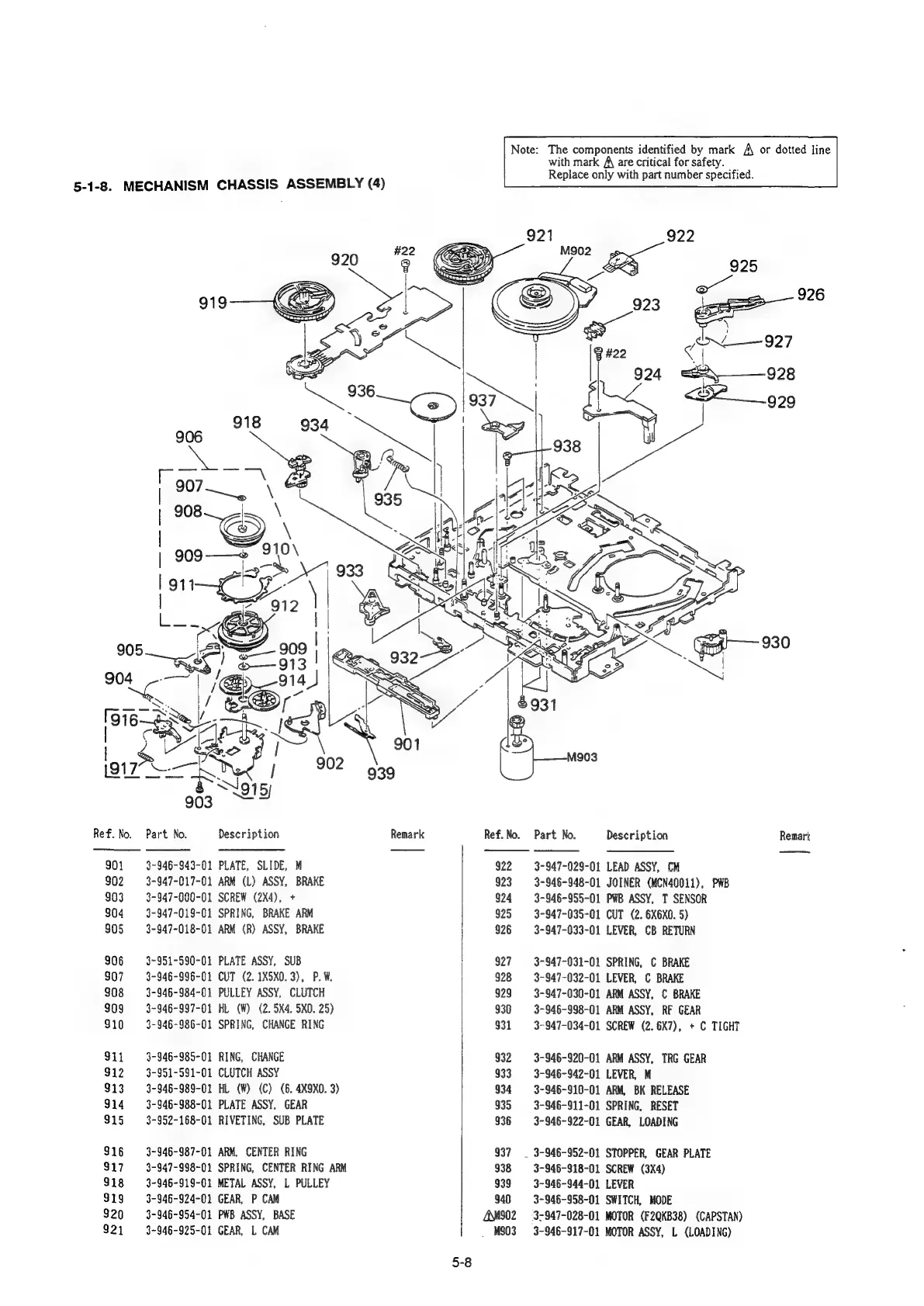

5-1-8.
MECHANISM
CHASSIS
ASSEMBLY
(4)
921 922
926
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
901 3-946-943-01 PLATE, SLIDE, M 922 3-947-029-01 LEAD ASSY, CM
902 3-947-017-01 ARM (L) ASSY, BRAKE 923 3-946-948-01 JOINER (MCN40011), PWB
903 3-947-000-01 SCREW (2X4), + 924 3-946-955-01 PWB ASSY, T SENSOR
$04 3-947-019-01 SPRING, BRAKE ARM 925. 3-947-035-01 CUT (2. 6X6X0. 5)
905 3-947-018-01 ARM (R) ASSY, BRAKE 926 3-947-033-01 LEVER, CB RETURN
906 3-951-590-01 PLATE ASSY, SUB 927 3-947-031-01 SPRING, C BRAKE
907 3-946-996-01 CUT (2. 1X5X0.3), P.¥. 928 3-947-032-01 LEVER, C BRAKE
$08 3-946-984-01 PULLEY ASSY, CLUTCH 929 3-947-030-01 ARM ASSY, C BRAKE
$09 3-946-997-01 HL (W) (2. 5X4. 5X0. 25) 930 3-946-998-01 ARM ASSY, RF GEAR
910 3-946-986-01 SPRING, CHANGE RING $31 3-947-034-01 SCREW (2. 6X7), + C TIGHT
911 3-946-985-01 RING, CHANGE 932 3-946-920-01 ARM ASSY, TRG GEAR
$12 3-951-591-01 CLUTCH ASSY 933. 3-946-942-01 LEVER, M
$13 3-946-989-01 HL (W) (C) (6. 4X9X0. 3) 934 3-946-910-01 ARM, BK RELEASE
914 3-946-988-01 PLATE ASSY, GEAR 935 3-946-911-01 SPRING, RESET
815 3-952-168-01 RIVETING, SUB PLATE 936 3-946-922-01 GEAR, LOADING
$16 3-946-987-01 ARM, CENTER RING 937 _ 3-946-952-01 STOPPER, GEAR PLATE
$17 3-947-998-01 SPRING, CENTER RING ARM 938 3-946-918-01 SCREW (3X4)
918 3-946-919-01 METAL ASSY, L PULLEY 939 3-946-944-01 LEVER
919 3-946-924-01 GEAR, P CAM 940 3-946-958-01 SWITCH, MODE
$20
3-946-954-01
PWB
ASSY,
BASE
AMM902
=:
3-947-028-01
MOTOR
(F2QKB38)
(CAPSTAN)
921
3-946-925-01
GEAR,
L
CAM
_
M903
3-946-917-01
MOTOR
ASSY,
L
(LOADING)
5-8
