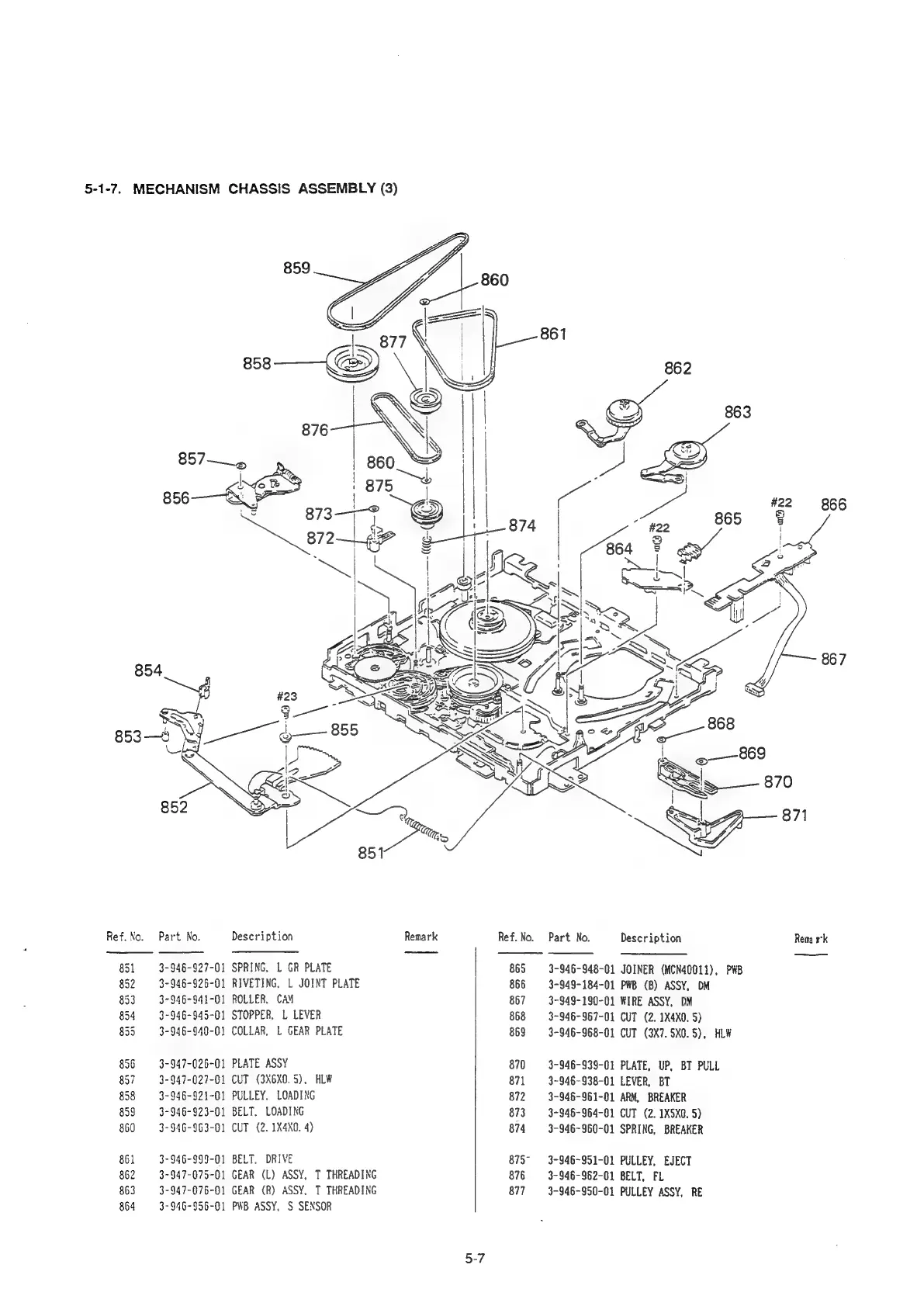

5-1-7, MECHANISM CHASSIS ASSEMBLY (3)
Ref. Xo.
851
852
853
854
855
856
857
858
859
860
861
862
863
864
Part No.
3-946-927-01
3-946-926-01
3-946-941-01
3-946-945-01
3-946-940-01
3-947-026-01
3-947-027-01
3-9$46-921-01
3-946-923-01
3-946-963-01
3-946-999-01
3-947-075-01
3-947-076-01
3-946-956-01
859
Description Remark
SPRING, L GR PLATE
RIVETING, L JOINT PLATE
ROLLER, CAM
STOPPER, L LEVER
COLLAR, L GEAR PLATE
PLATE ASSY
CUT (3X6X0. 5). HLW
PULLEY, LOADING
BELT. LOADING
CUT (2. 1X4X0. 4)
BELT. DRIVE
GEAR (L) ASSY, T THREADING
GEAR (R) ASSY. T THREADING
PWB ASSY, S SENSOR
5-7
Ref. No
865
866
867
868
869
870
871
872
873
874
875"
876
877
Part No. Description Rema s"k
3-946-948-01 JOINER (MCN40011), PHB
3-949-184-01 PHB (B) ASSY, DM
3-949-190-01 WIRE ASSY, DM
3-946-967-01 CUT (2. 1X4X0. 5)
3-946-968-01 CUT (3X7. 5X0.5), HLW
3-946-939-01 PLATE, UP, BT PULL
3-946-938-01 LEVER, BT
3-946-961-01 ARM, BREAKER
3-946-964-01 CUT (2. 1X5X0. 5)
3-946-960-01 SPRING, BREAKER
3-946~951-01 PULLEY, EJECT
3-946-962-01 BELT, FL
3-946-950-01 PULLEY ASSY, RE
