3.1.3. Roller brake testers SPRT102/4, SPRT102/5, SPRT102/6 and SPRT102/7
series without weighing equipment:
The roller brake tester SPRT102/4, SPRT102/5, SPRT102/6 and SPRT102/7 series without
weighing equipment consists of:
 roller brake testers SPRT102/4, SPRT102/5, SPRT102/6 or SPRT102/7 without weighing
equipment;
 roller brake testers SPRT102/4F, SPRT102/5F, SPRT102/6F or SPRT102/7F with self-
braking motors and without weighing equipment;
The tester is physically separate from the console; the only connections are power connections (to
power the motors) and electronic connections (signaling cables, vehicle presence, rolling speed
and measurement cables).

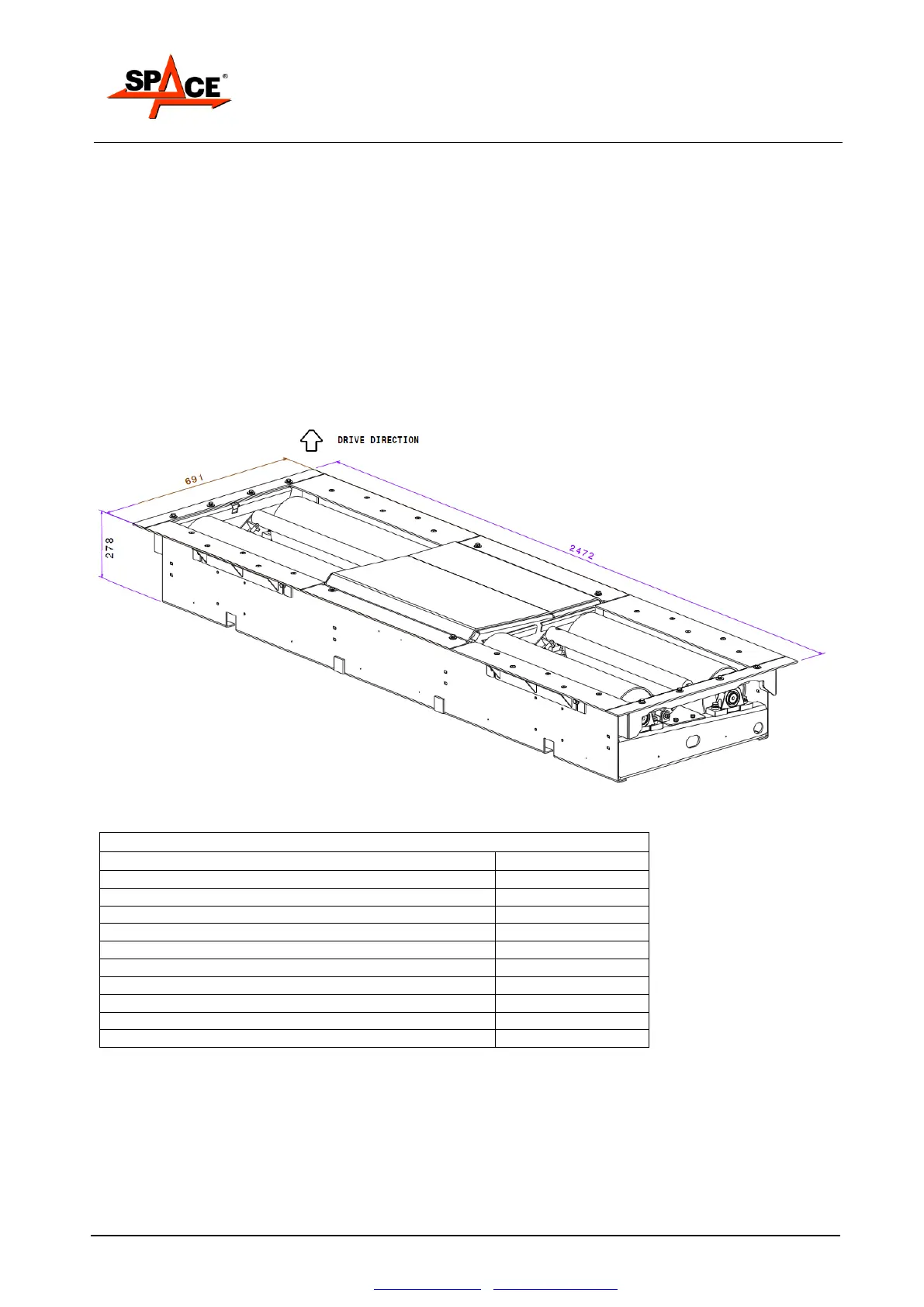

Figure 3
TECHNICAL SPECIFICATIONS
Roller dimensions
700 -  205
Roller internal wire distance
800 mm
Roller external wire distance
2200 mm
Max. transit weight per axle
4000 daN
Max measurable braking force RT102/4 series
4000 N
Max measurable braking force RT102/5 series
5000 N
Max measurable braking force RT102/6 series
6000 N
Max measurable braking force RT102/7 series
7500 N
Empty roller tip speed
5,4 km/h
Grip coefficient a
>0,7
Weight
385 kg
