 Select with “F1” the service commands for the front and rear axle of the vehicle, LEVER or
PEDAL
Press “F4” to confirm and proceed.

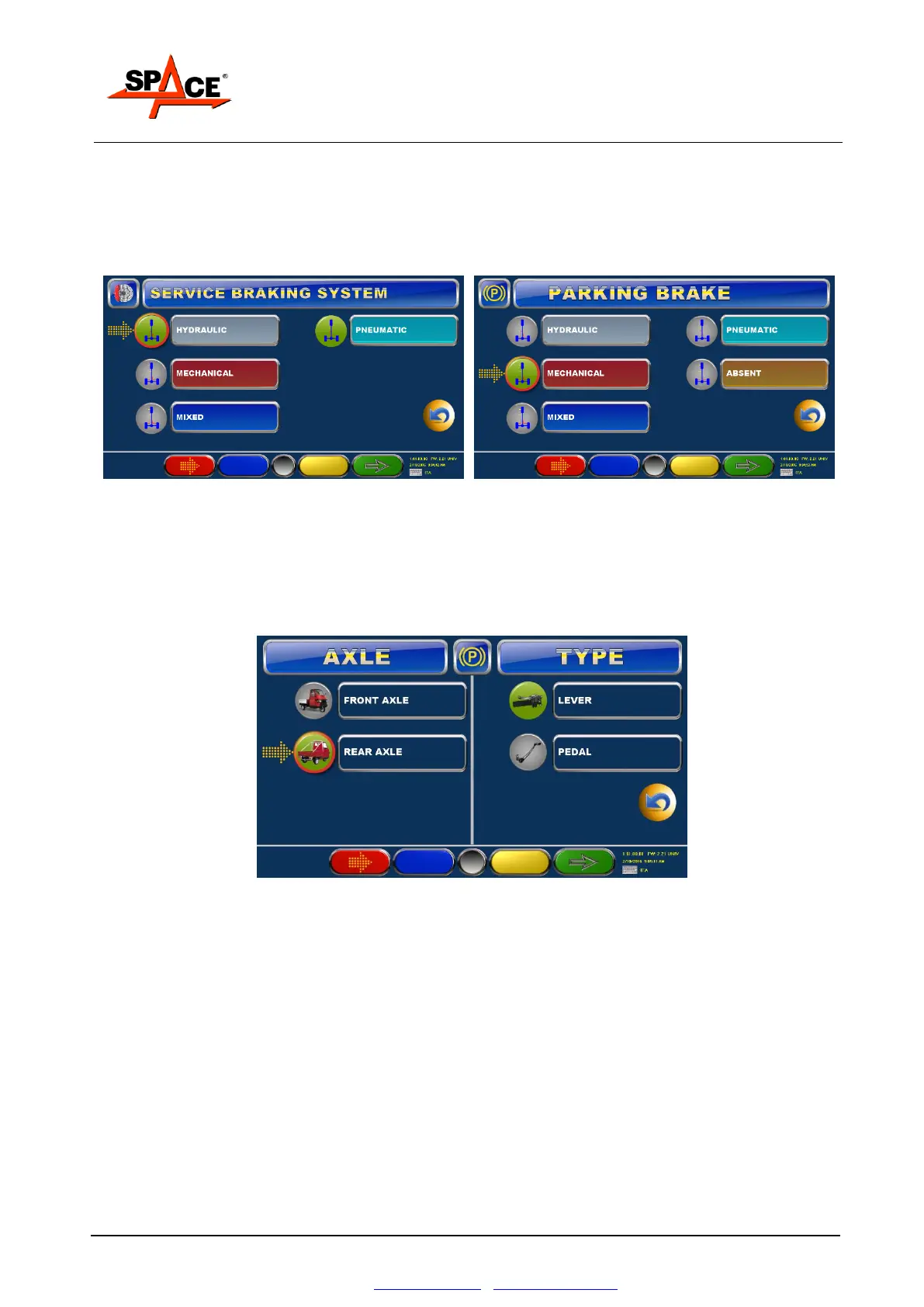

8.1.5. Type of braking system: SERVICE and PARKING
Figure 61
 Select with “F1” the TYPE OF BRAKING SYSTEM for the SERVICE brake. Press “F4” to
confirm and then select the TYPE OF BRAKING SYSTEM for the PARKING brake.
Press “F4” to confirm and proceed.
8.1.6. Action of the PARKING brake
Figure 62
 Select with “F1” the axel on which the parking brake works: front or rear, press “F4” to
confirm, then select the service command for the parking axel for the vehicle, LEVER or PEDAL.
